DVS-Junior
9

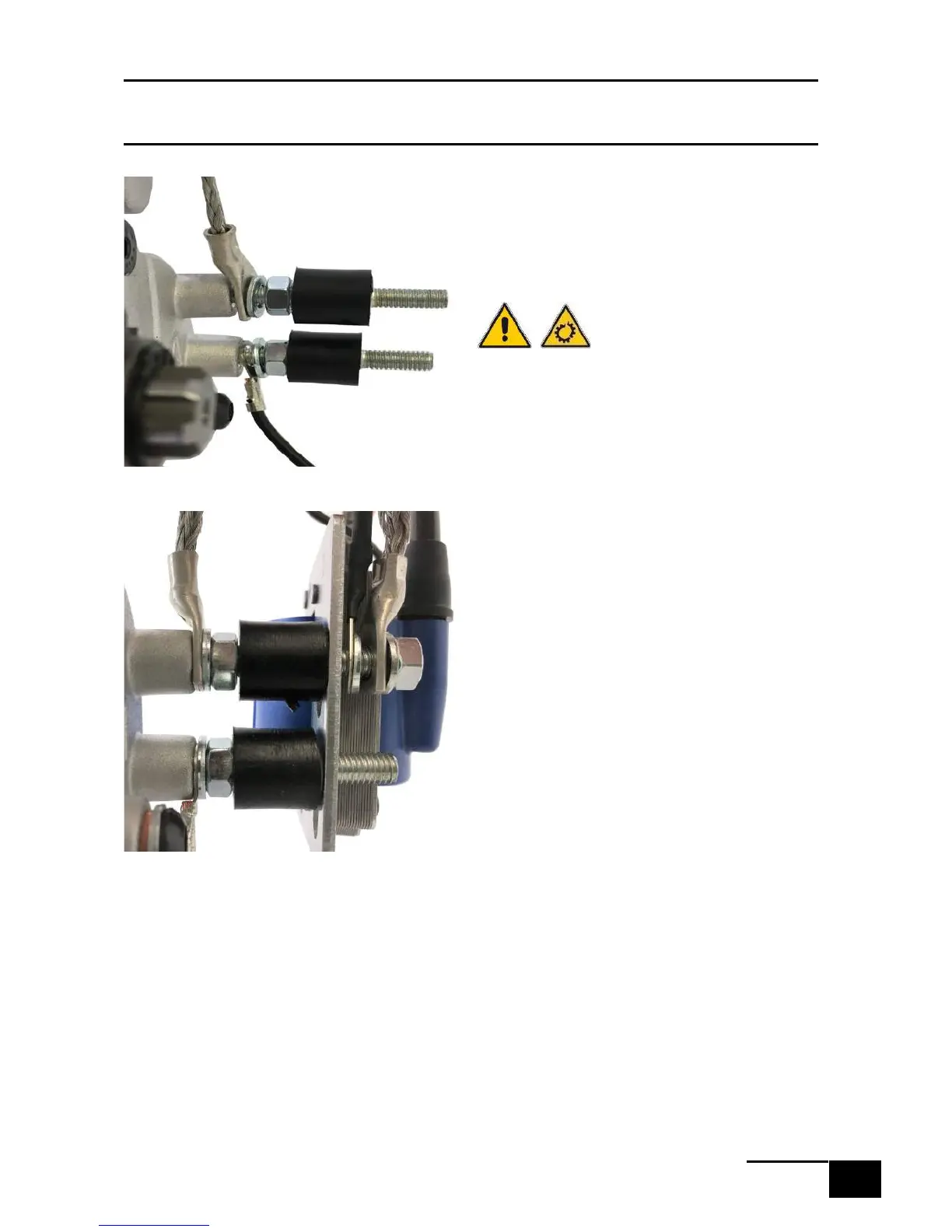

ENGINE ASSEMBLING
Fix ground cables to the engine by assembling
the two silent blocks in the crankcase as per
photo. Tighten both silent blocks to the
crankcase.
Caution: Wrong assembling will cause coil
failure.
Insert now the coil in the two silent blocks.
Insert the ground cable from the coil into the
upper silent block as per photo.
Insert a washer.
Insert now the ground cable previously attached
to the crank case with the upper silent block and
tighten with washer and nut provided as per
photo.
