Assembly Instructions

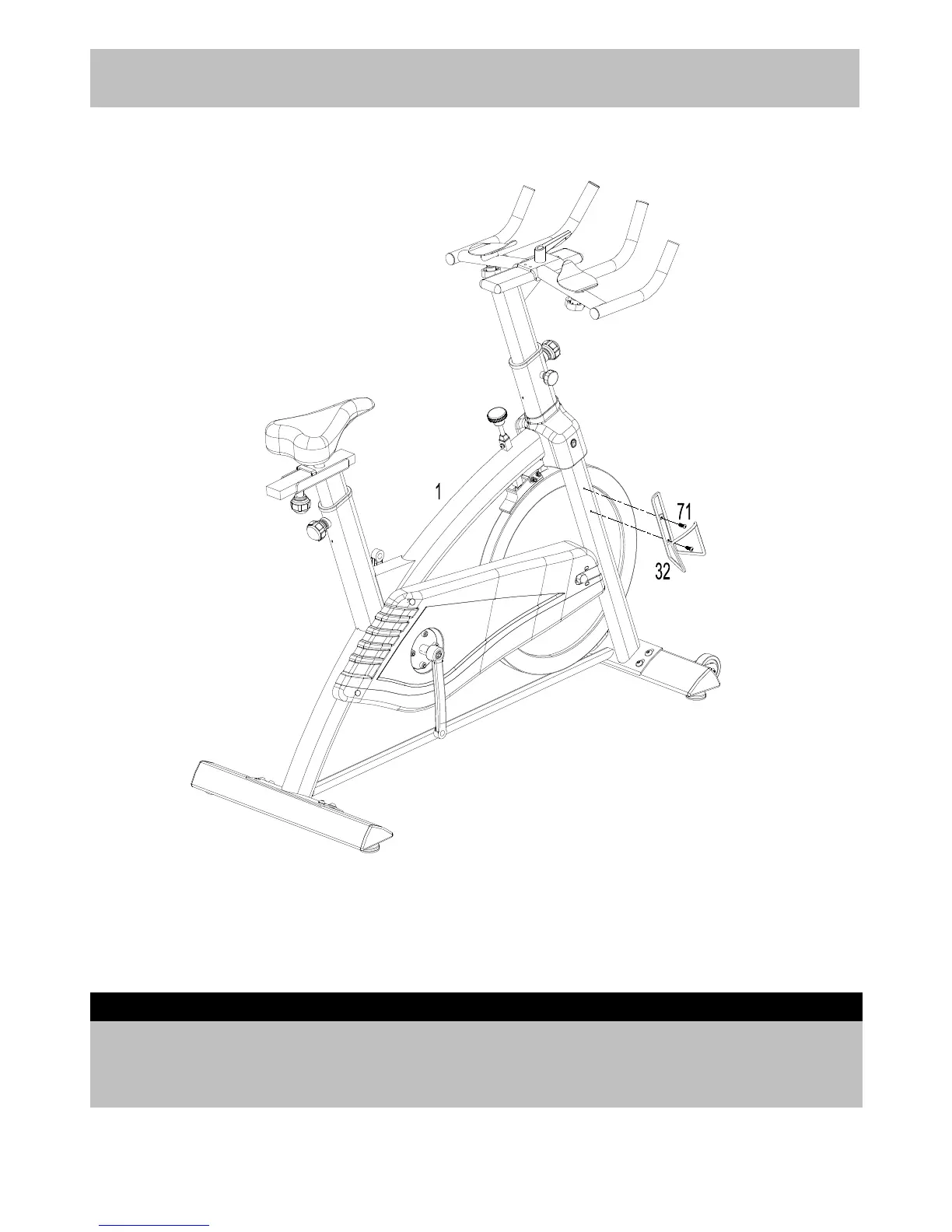

Step 6
Attach Water Bottle Rack (32) to the Main Body (1), fix using 2 x 15mm Flat Head Philips Bolts (71).
9
