Vortex V-V700 User Manual

Step 5
8
Assembly Instructions

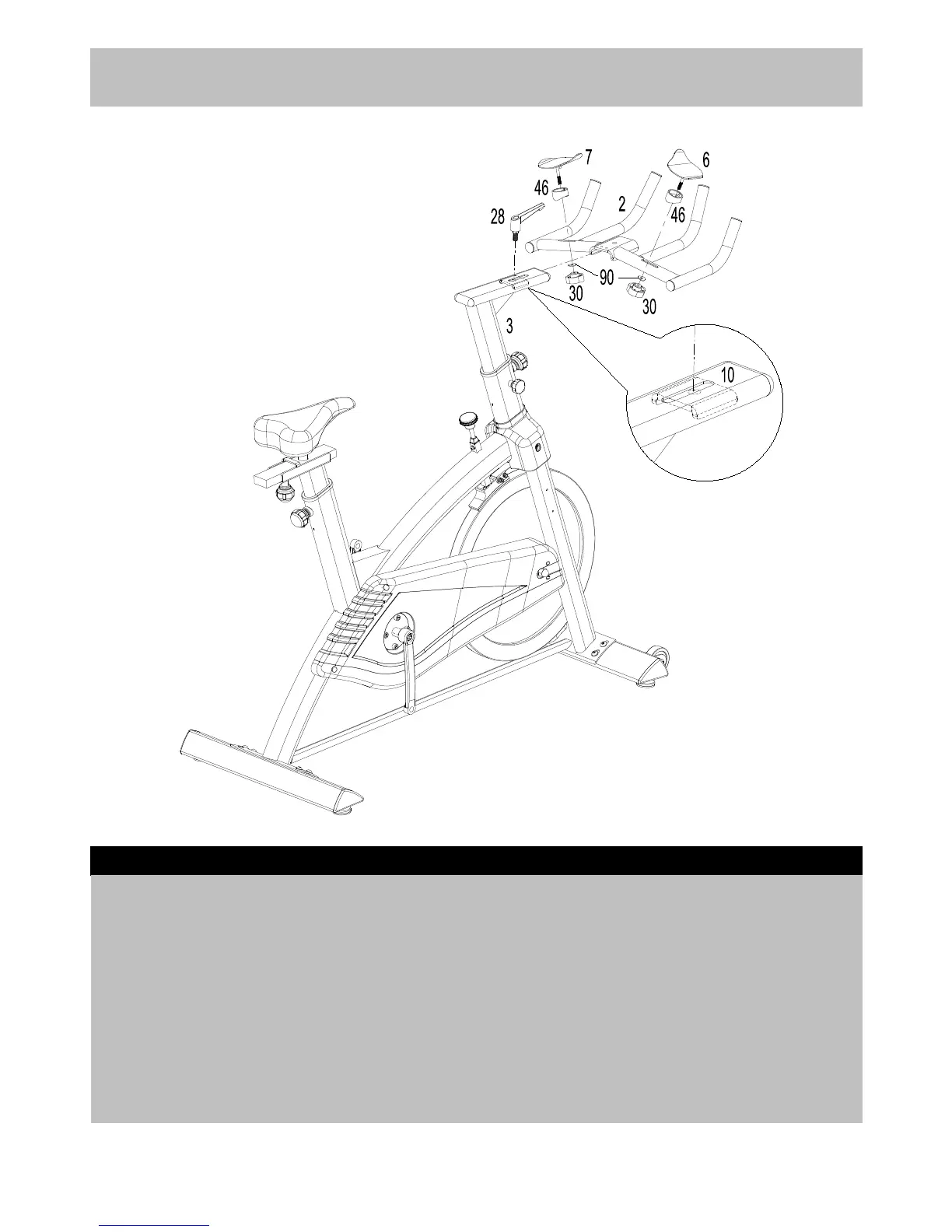

a. Attach the Left Elbow Pad (7),Right Elbow Pad (6)and Elbow Pad Rubber Bushing (46) onto the
Handle Frame (2).Adjust to your desired position and fix using M6 Knob(6) and φ18×φ6.5×R29×1.5mm
Arc Washer.
b. Attach the Handle Frame (2) onto the Handle Support Frame (3). Adjust to your desired position and
fix using 1 x 20mm L–Shaped Lock Knob (28) and 1 x U-Shaped handle locking bracket (10) (Which was
pre-fitted inside of the Handle support frame (3).
To Tighten: Turn 20mm L–Shaped Lock Knob (28) handle clockwise, then pull the handle upward and
turn anticlockwise to the starting position, repeat above operation to tighten the lock knob.
To Loosen: Turn 20mm L–Shaped Lock Knob (28) handle anticlockwise, then pull the handle upward
and turn clockwise to starting position. Repeat above operation to loose the lock knob.
