Assembly Instructions
Step 4

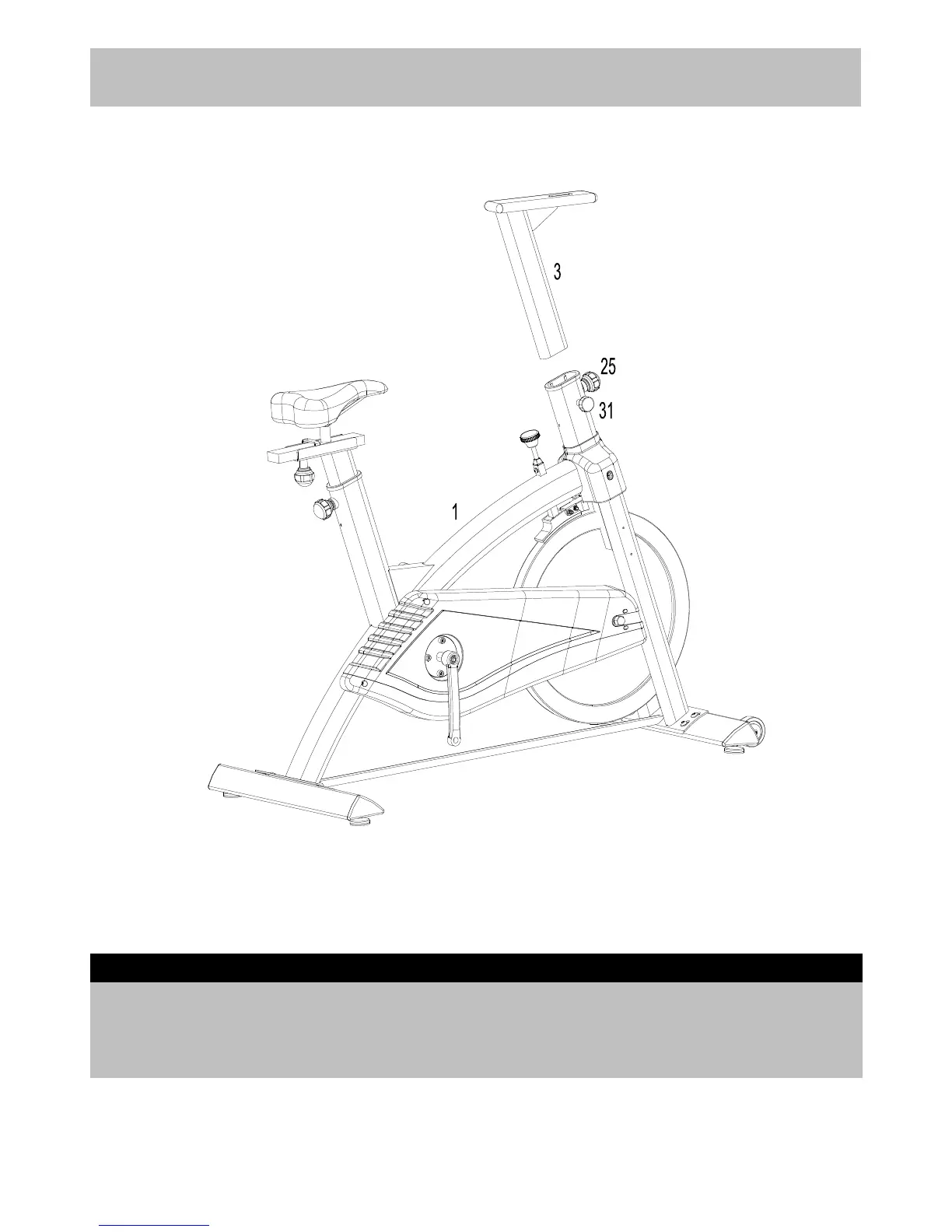

Loose the side Knob (31) and Lock Knob (25) and pull it out. Insert Handle Support Frame (3) into the
front opening tube of the Main Body (1). Tighten Lock knob (25) and Knob (31).
