5

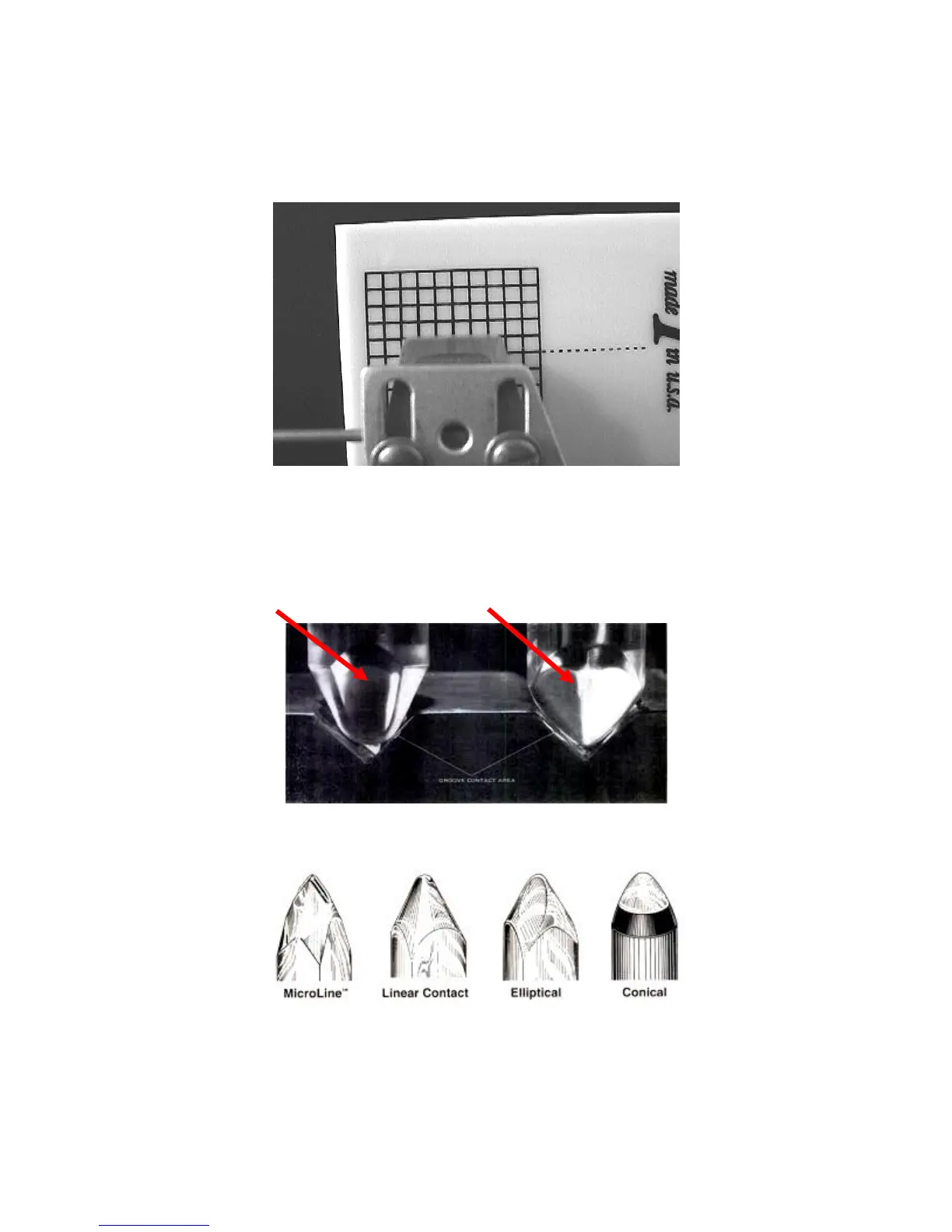

 When the cartridge is properly positioned, tighten the cartridge mounting screws and remove
the alignment jig. Do not make them overly tight, the 3D arm is self-damping and you can
damage the surface by over tightening.
VIEW OF CONICAL AND LINE CONTACT STYLI AND WHY ALIGNMENT MATTERS MORE WITH THE
LINE CONTACT.
CONICAL LINE CONTACT
