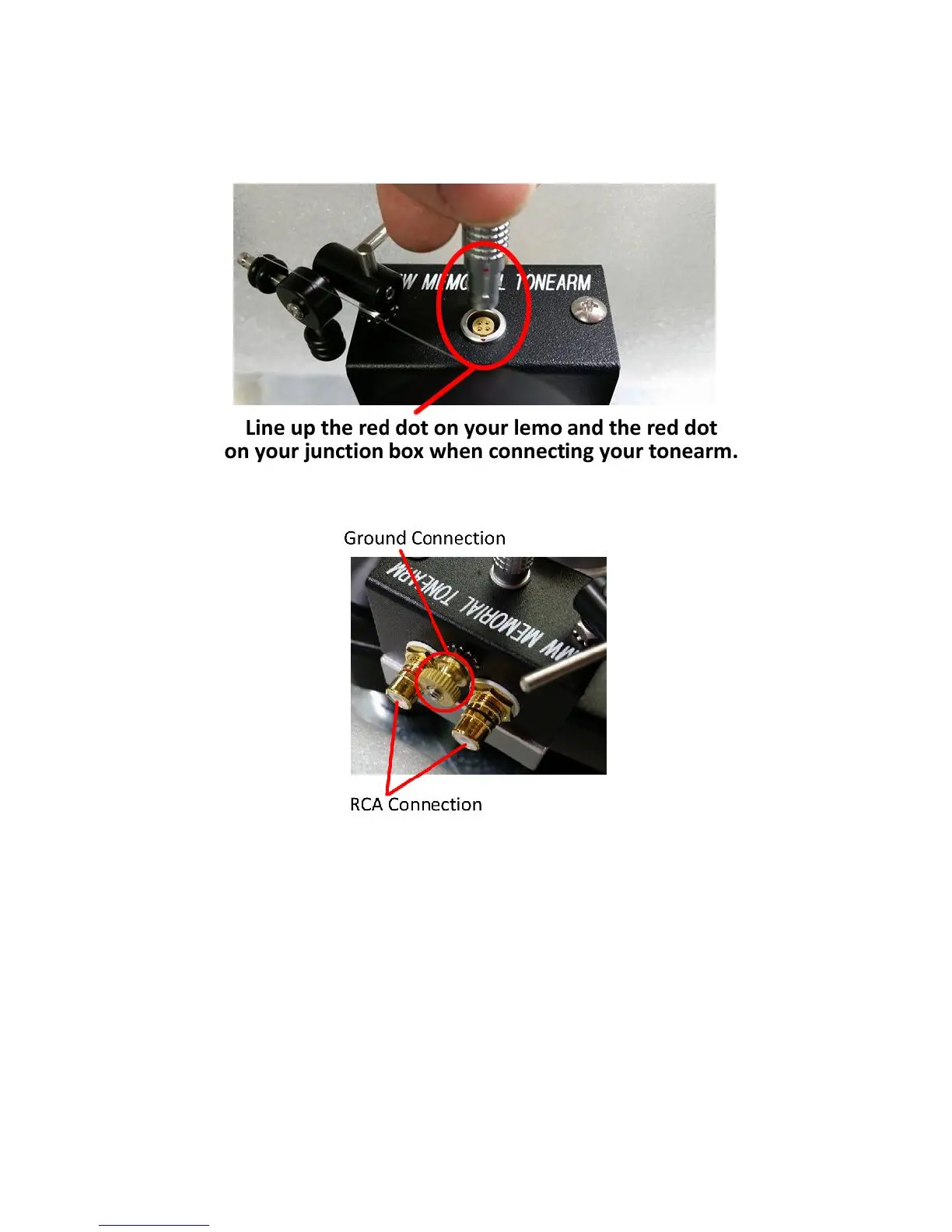

Line up the red dot on the Lemo connector with the red dot on the receptacle on the junction
box. The Lemo connector can plug in only one way and should not be forced.
Swing the tonearm over the jig so the stylus is as close as possible to the dot in the center of
the grid. Set the counterweight for enough downward force to keep the stylus from moving
when resting on the jig.
Look down at the cartridge and align it between the lines of the grid. You should have the
diamond stylus on the white dot and the cantilever lined up with the lines on the grid. Use a
flashlight to look from the front and line up the cantilever with the grid lines. That is the only
alignment that matters, the cantilever lined up with the white lines and the diamond on the
white dot. The angle of the cartridge is irrelevant.
Adjust the cartridge mounting screws and the counterweight as needed until the cartridge is
centered between the grid lines and the stylus is resting on the dot of the grid. The picture
below shows the setup, the jig is in white for clarity, yours is black.
