VSI 1010-X - Overall Dimensions and Specifications for 1010-X

SERIES 1000-X ELECTRIC ACTUATORS
6VER: 0812-1

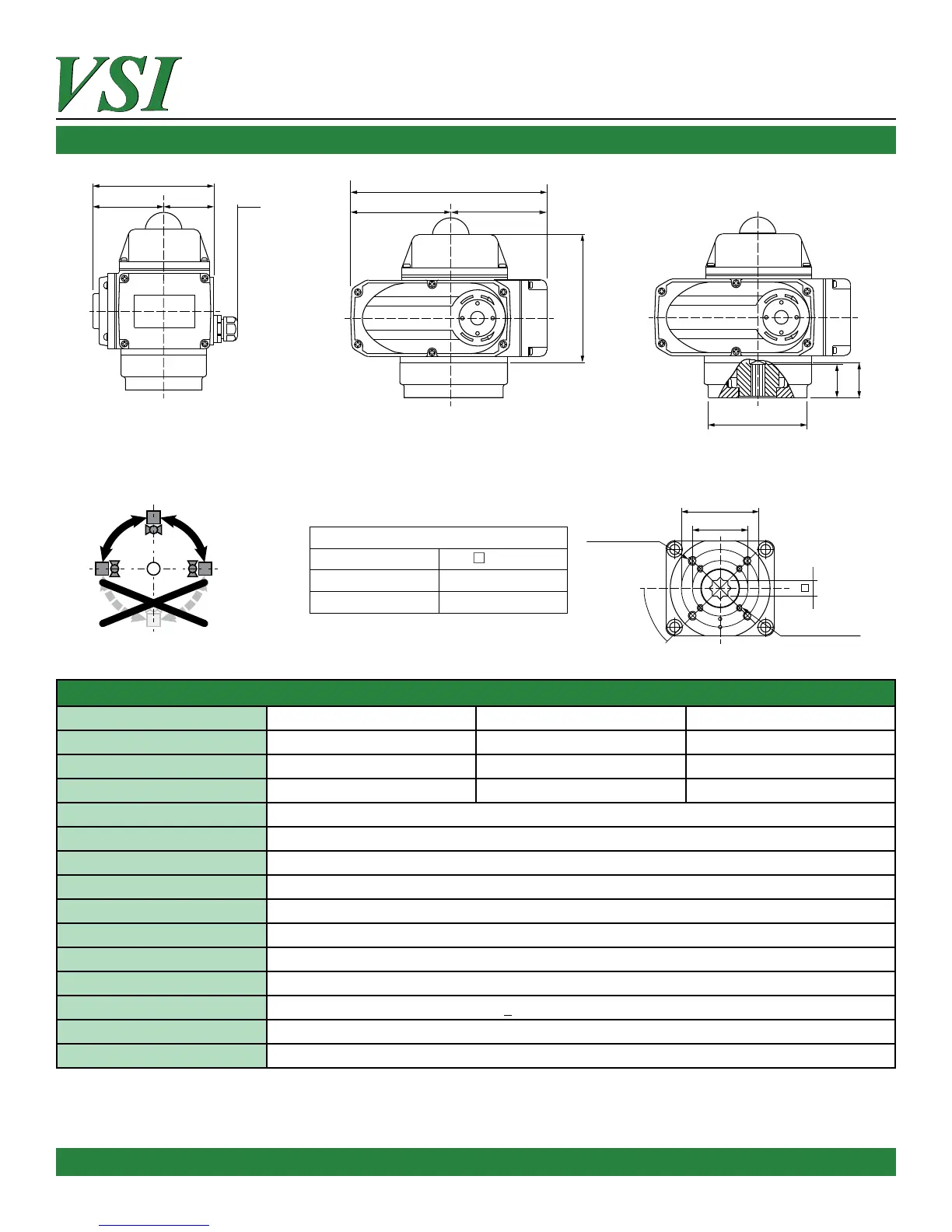

OVERALL DIMENSIONS AND SPECIFICATIONS FOR 1010-X
Direct Mount Parameters
Square Shaft
Mounting Flanges
Stem Height
17 x 17
F05 F07
Height ≤ 32mm
121
71 50 24
98
196
98
126
S
O
Ø70
Ø50
4-M8
4-M6
45°
Evenly Distributed
Evenly Distributed
Ø90
32 33
S
O
Fig. A
1010-X SPECIFICATIONS
Power Supply AC24V AC110V AC220V
Motor Power 25W 25W 25W
Rated Current 2.12A 0.57A 0.30A
Max. Current 3.12A 0.81A 0.47A
Standard Torque / Run Time 100Nm / 30s
Turning Angle 0° - 90° Adjustable
Total Weight 6.61lbs (3.0kg)
Insulang Resistance AC24V: 100MΩ/250VDC AC110V/AC220V: 100MΩ/500VDC
Withstand Voltage Class AC24V: 500VAC - 1 Minute AC110V/AC220V: 1500VAC - 1 Minute
Protecon Class IP67 NEMA 4X
Installaon Angle At or above the center line of the pipe. See Fig. A
Ambient Temperature -22°F - +140°F (-30°C - +60°C)
Ambient Humidity ˂ 95% Relave Humidity
Duty Cycle 80%
Opons Handwheel
