VSI 1010-X - Overall Dimensions and Specifications for 1020-X Thru 1060-X

SERIES 1000-X ELECTRIC ACTUATORS
7 VER: 0812-1

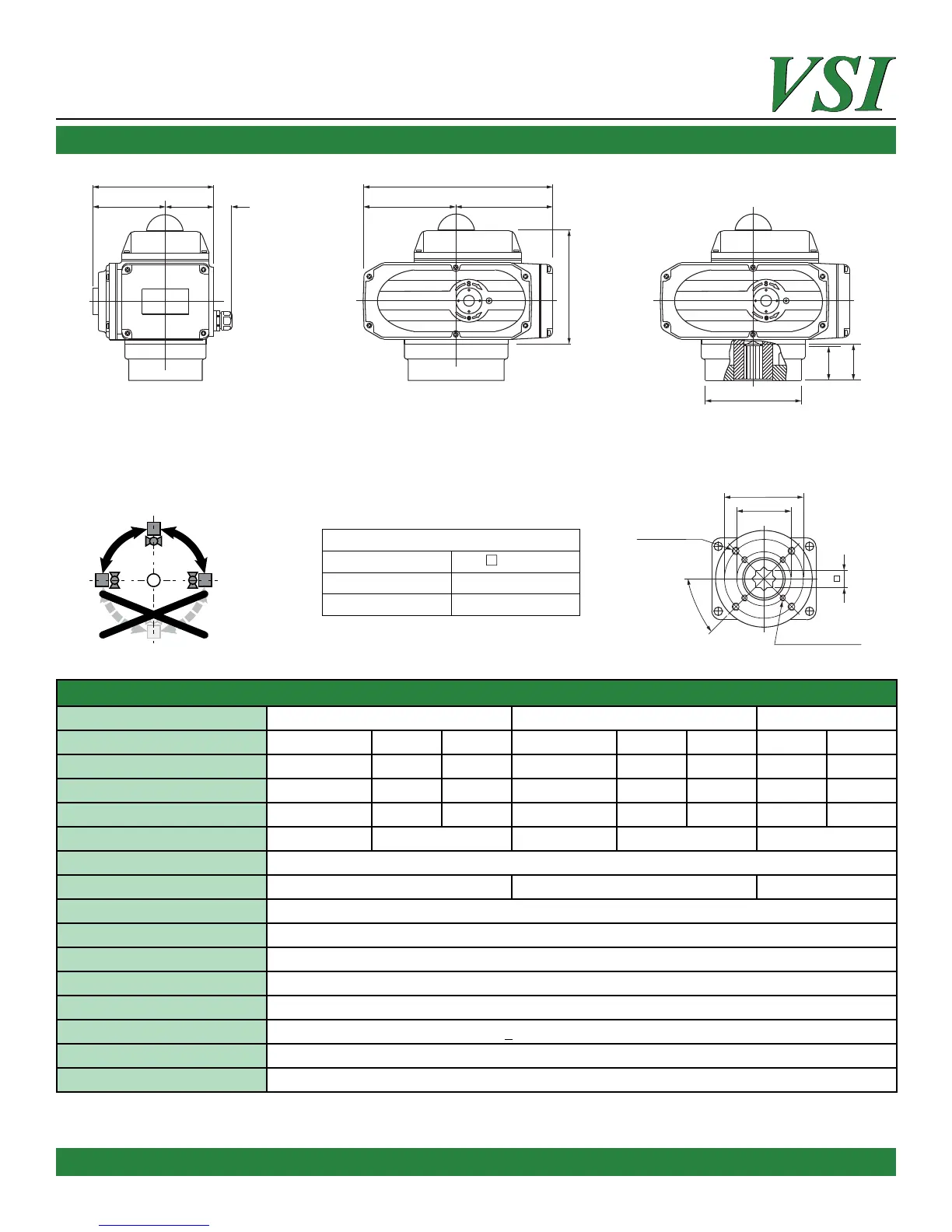

OVERALL DIMENSIONS AND SPECIFICATIONS FOR 1020-X THRU 1060-X
158
95 63 24
121
255
134
148
45
48
Ø125
Ø102
Ø70
4-M10
Evenly Distributed
4-M8
Evenly Distributed
45°
Direct Mount Parameters
Square Shaft
Mounting Flanges
Stem Height
27 x 27
F07 F10
Height ≤ 45mm
Fig. A
1020-X / 1040-X / 1060-X SPECIFICATIONS
Model 1020-X 1040-X 1060-X
Power AC24V AC110V AC220V AC24V AC110V AC220V AC110V AC220V
Motor Power 40W 40W 40W 40W 90W 90W 90W 90W
Rated Current 3.15A 0.65A 0.37A 2.42A 1.12A 0.57A 1.18A 0.60A
Max. Current 5.30A 1.68A 0.78A 4.38A 3.41A 1.78A 3.60A 1.87A
Standard Torque / Run Time 300Nm / 45s 200Nm / 30s 400Nm/ 100s 400Nm / 30s 600Nm / 30s
Turning Angle 0° - 90° Adjustable
Total Weight 17.63lbs (8.0kg) 18.74lbs (8.5kg) 19.41lbs (9.0kg)
Insulang Resistance AC24V: 100MΩ/250VDC AC110V/AC220V: 100Ω/500VDC
Withstand Voltage Class AC24V: 500VAC - 1 Minute AC110V/AC220V: 1500VAC - 1 Minute
Protecon Class IP67 NEMA 4X
Installaon Angle At or above the center line of the pipe. See Fig. A
Ambient Temperature -22°F - +140°F (-30°C - +60°C)
Ambient Humidity ˂ 95% Relave Humidity
Duty Cycle 80%
Opons Handwheel
