EN - 12
Installation
SIP 1-Line Hidden Base with Cordless
Color Handset and Charger -
CTM-S2116
SIP 1-Line Hidden Base - CTM-S2110
Base station installation
This section assumes that your network
infrastructure is established and that your IP PBX
phone service has been ordered and configured
for your location. For more information about IP
PBX configuration, please refer to the SIP Phone
Configuration Guide.
You can power the base station using a
compatible VTech power adapter or using Power
over Ethernet (PoE Class 2) from your network. If
you are not using PoE, install the base station
near a power outlet not controlled by a wall

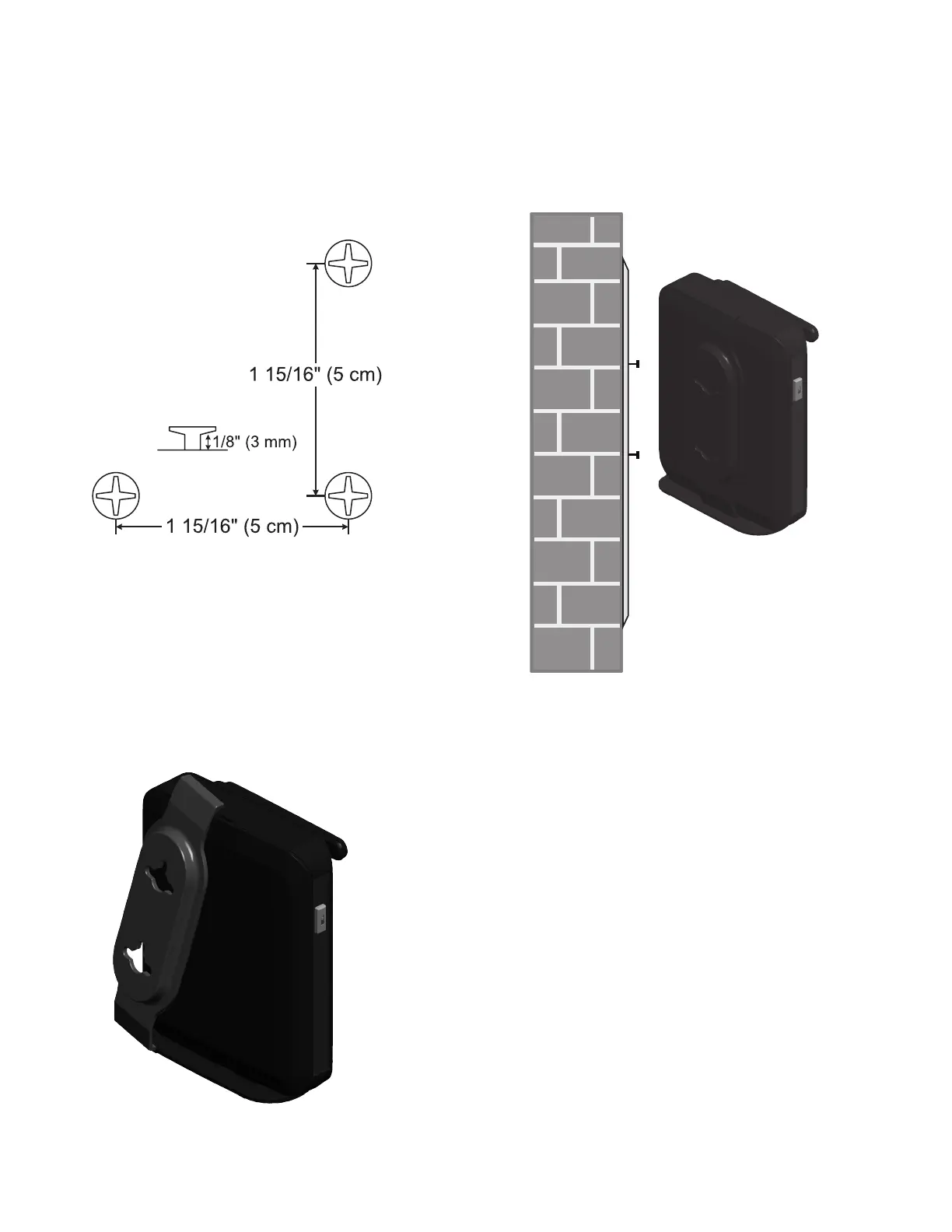

switch. The base station can be placed on a flat
surface or mounted on a wall in a vertical or
horizontal orientation.
To install the base station:
Plug one end of the Ethernet cable into the
Ethernet port on the rear of the base station
(marked by NET), and plug the other end
of the cable into your network router or switch.
If the base station is not using power from a
PoE-capable network router or switch:
Connect the supplied power adapter to the
base station power jack.
Plug the power adapter into an electrical outlet
that is not controlled by a wall switch.
IMPORTANT INFORMATION
1. Use only a compatible VTech power adapter.
To order a replacement power adapter, call
1 (888) 907-2007.
2. The power adapter is intended to be correctly
oriented in a vertical or floor mount position.
The prongs are not designed to hold the
plug in place if it is plugged into a ceiling,
under-the-table or cabinet outlet.
