11

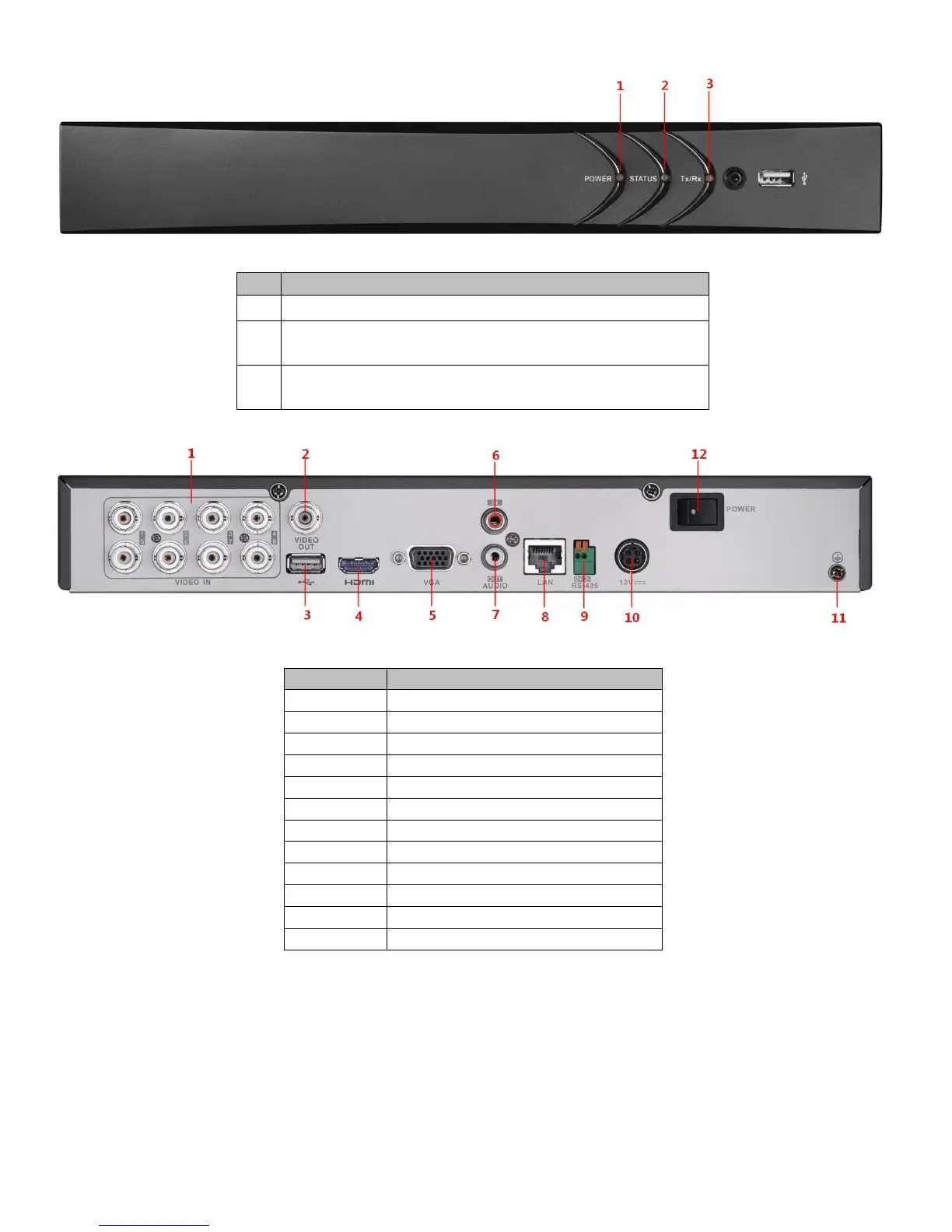

No.
Description
1
Indicator turns red when DVR is powered up.
2
Indicator lights in red when data is being read from or
written to HDD.
3
Indicator blinks blue when network connection is
functioning properly.
No.
Description
1
VIDEO IN
2
VIDEO OUT
3
USB Interface
4
HDMI Interface
5
VGA Interface
6
AUDIO IN, RCA Connector
7
AUDIO OUT, RCA Connector
8
LAN Network Interface
9
RS-485 Serial Interface
10
12VDC Power Input
11
GND
12
Power Switch
