Wabtec Microphor MICROFLUSH LF-210 - Exploded Views and Component Identification; Exploded View: Toilet Shell; Exploded View: Remote Assembly; Exploded View: Rear Discharge Hopper

MICROFLUSH Toilet Manual 7 March 2005
A
B
D
S
G
P
E
F
I
M
C
Q
H
K
File: 210-exp
File: Hop-3a
N
L
O
T
R
K

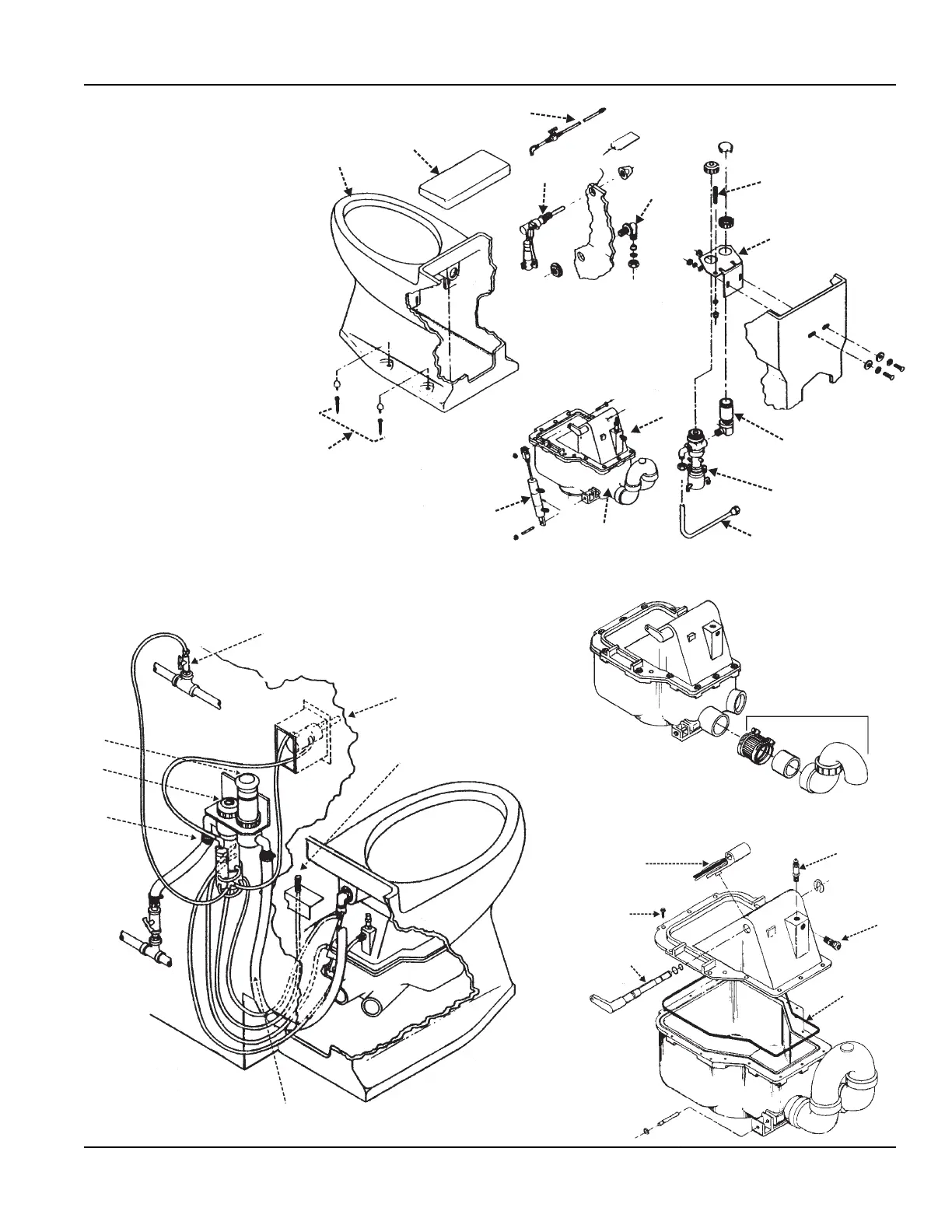

EXPLODED VIEWS
A Toilet Shell
B Toilet Lid
C Closet Screws
D Flush Activator
E Air/Water Seq. Valve
F Vacuum Breaker
G Bleed Off Plug
H Valve Bracket
I Hopper Assembly
J P-Trap, Rear Discharge
K Hopper Bleed Valve
L Hopper Screws
M Air Cylinder
N Flapper Assembly
O Crank Assembly
P Water Supply Tube
Q Water Connection
R Hopper Gasket
S Air Supply Kit
T Pressure Relief Valve
File: Hop-2
J
Typical Remote Assembly
Rear Discharge Hopper
Downward Discharge Hopper
S
D
G
P
Q
E
F
File: 210-Exp3
