F-003
18
14
15

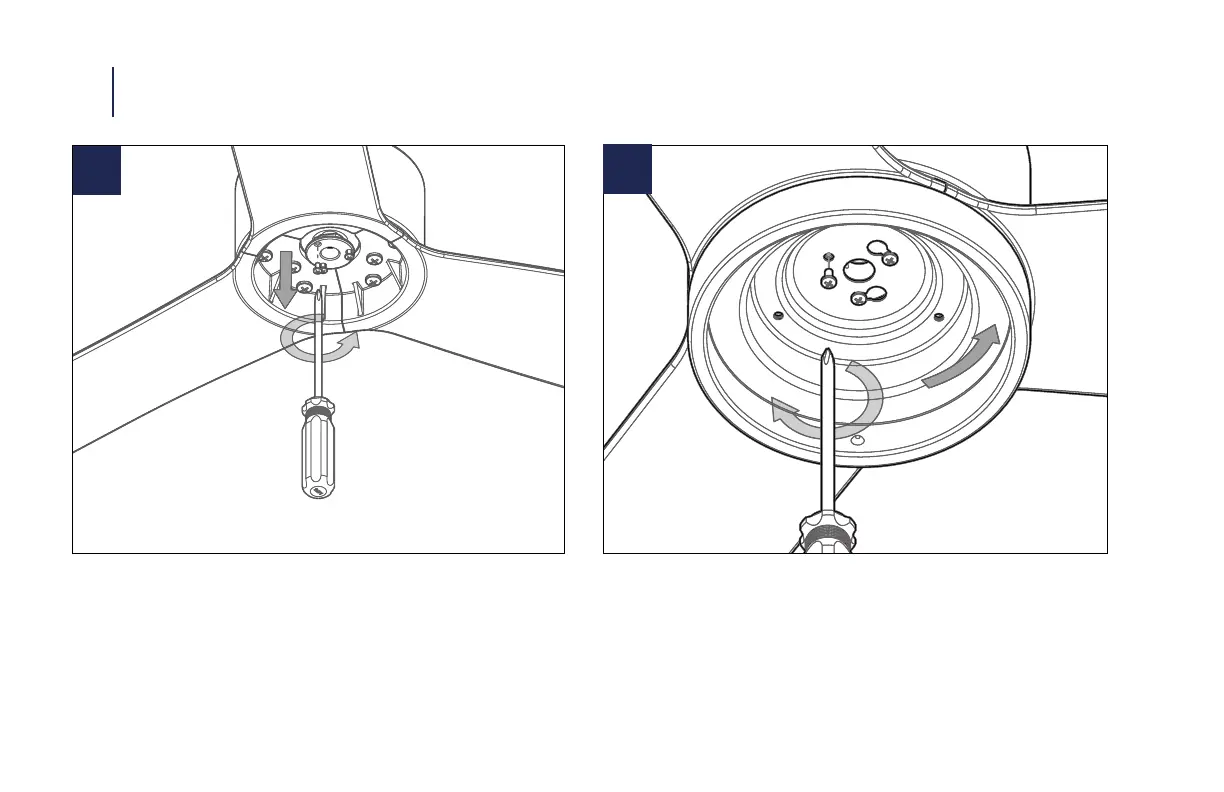

10 INSTALLING THE ADAPTER PLATE
1. Remove 1 of 3 screws from the mounting ring and loosen the
others (do not remove them).
1. Twist and lock the adapter plate into place by following the
arrows above.
2. Using the screw from the previous step, install the adapter plate.
