WAC Lighting CLEAN - Luminaire Module Wiring and Attachment

20
F-003
18
When installing the Luminaire verison (F-003L)
12 INSTALLING THE LUMINAIRE MODULE

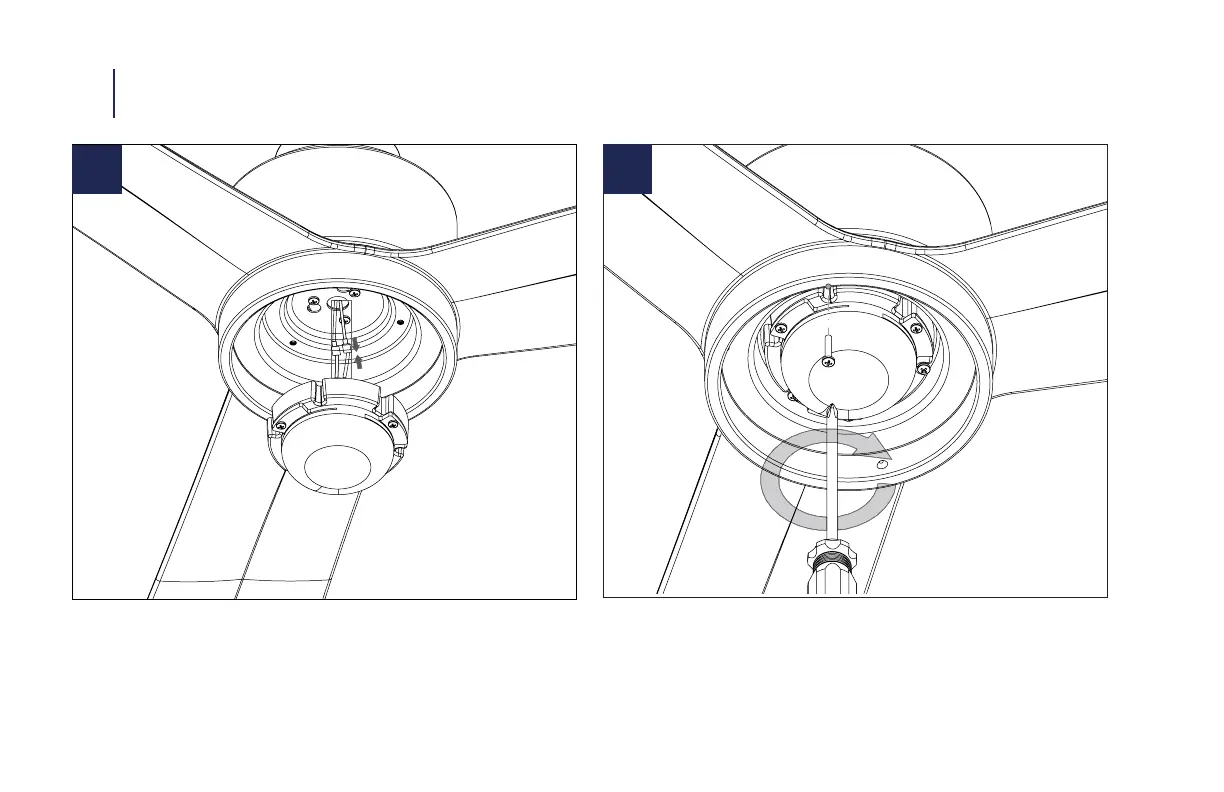

1. Use the 3 screws located in the luminaire module screw bag to
install the luminaire module to the adapter plate.
Use E Hardware.
1. Connect the white wire connectors from the luminaire module
to the white wire of the fan. Follow same procedure with blue
wire connectors.
