WAC HUG - Mounting Options; Standard Ceiling Mounting; Electrical Connection Considerations

10
05

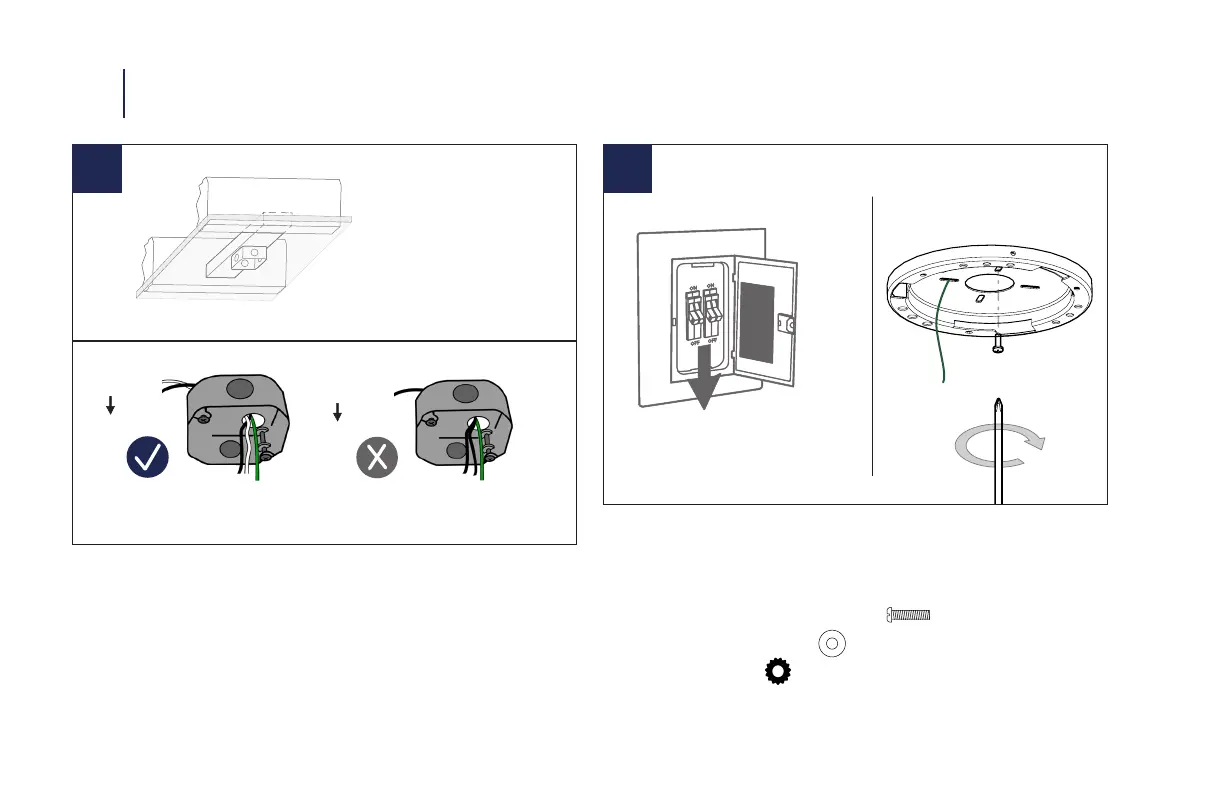

MOUNTING OPTIONS INSTALLING THE MOUNTING BRACKET
2
1. Attach the mounting bracket to the outlet box with two screws
and washers provided. Make sure the bracket is tight and secured.
Use
A parts:
#10x38mm Pan Head Phillip Screws (2)
Ø5*14*1mm Flat Washers (2)
3/16" Star Washers (2)
2. Pass supply wires through mounting bracket. Verify supply wire
colors and designations.
Caution: To prevent electrical shock, ensure
electricity has been turned o at the circuit
breaker before beginning.
1
Standard Ceiling
CAUTION: To prevent electrical shock, ensure electricity has been
turned o at the circuit breaker before beginning.
Mount to the outlet box as shown above. If your outlet box is not
mounted or if you do not have proper wiring in your outlet box,
hire an electrician. You will need a hot (black), neutral (white), and
ground (green or bare copper), to operate this fan.
To Switch
A
A
B
(HOT)
(Neutral)
(HOT)/
Switch
(No
Neutral)
(Ground)
*Bare or
Green
(Ground)
*Bare or
Green
To Switch
