Electric wirning diagramm for tools with remote cut-off

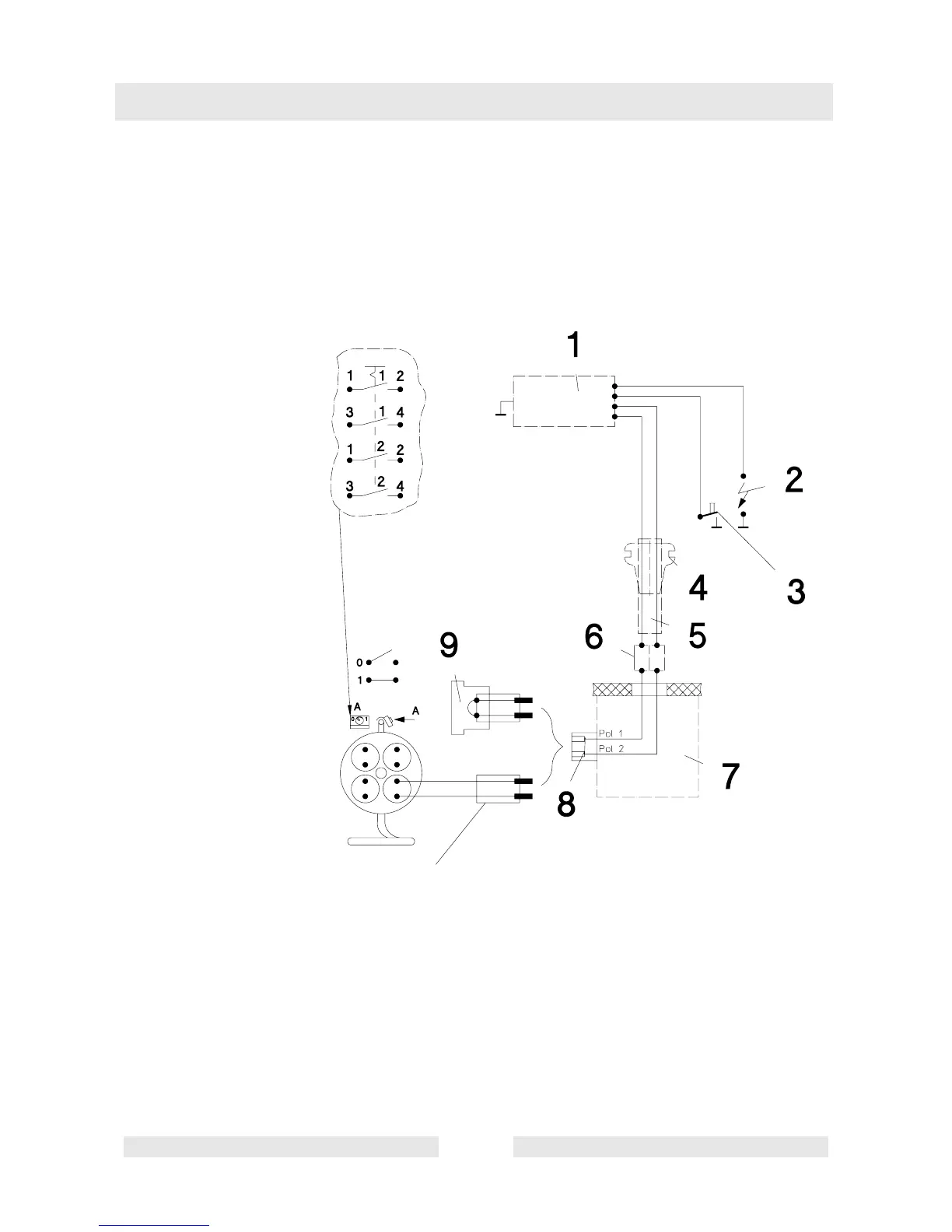

8. Electric wirning diagramm for tools with remote cut-off
OPERATION: Optionally possible with blind (dummy) plug or cable
drum!
1 Ignition system with remote stop
2 Spark plug
3 Short circuit botton
4 Cable passage
5 Fuel pipe line
6 Strip terminal
7 Flanged angle
8 Can, complete
9 Blind (dummy) plug
Ignition cable
red
red
grey
yellow
yellow
Remote stop
Basic wiring diagram for ON and Off
switch
