BS 50-4 Maintenance
wc_tx000309gb.fm 31
6.3 Engine Oil
See Graphic: wc_gr002431
6.3.1 Drain oil while engine is still warm.
Note: In the interests of environmental protection, place a plastic sheet
and a container under the machine to collect any liquid which drains
off. Dispose of this liquid in accordance with environmental protection
legislation.
6.3.2 Place the rammer so it is resting on its shoe on a level surface.
6.3.3 Remove the oil fill plug (a) and drain plug (b) to drain oil.
6.3.4 Install the drain plug (b).
6.3.5 Fill the engine crankcase with recommended oil up to the level of the
plug opening (c). Do not thread in the dipstick to check the level. See
Technical Data for oil quantity and type.
6.3.6 Install the oil filler plug (a).

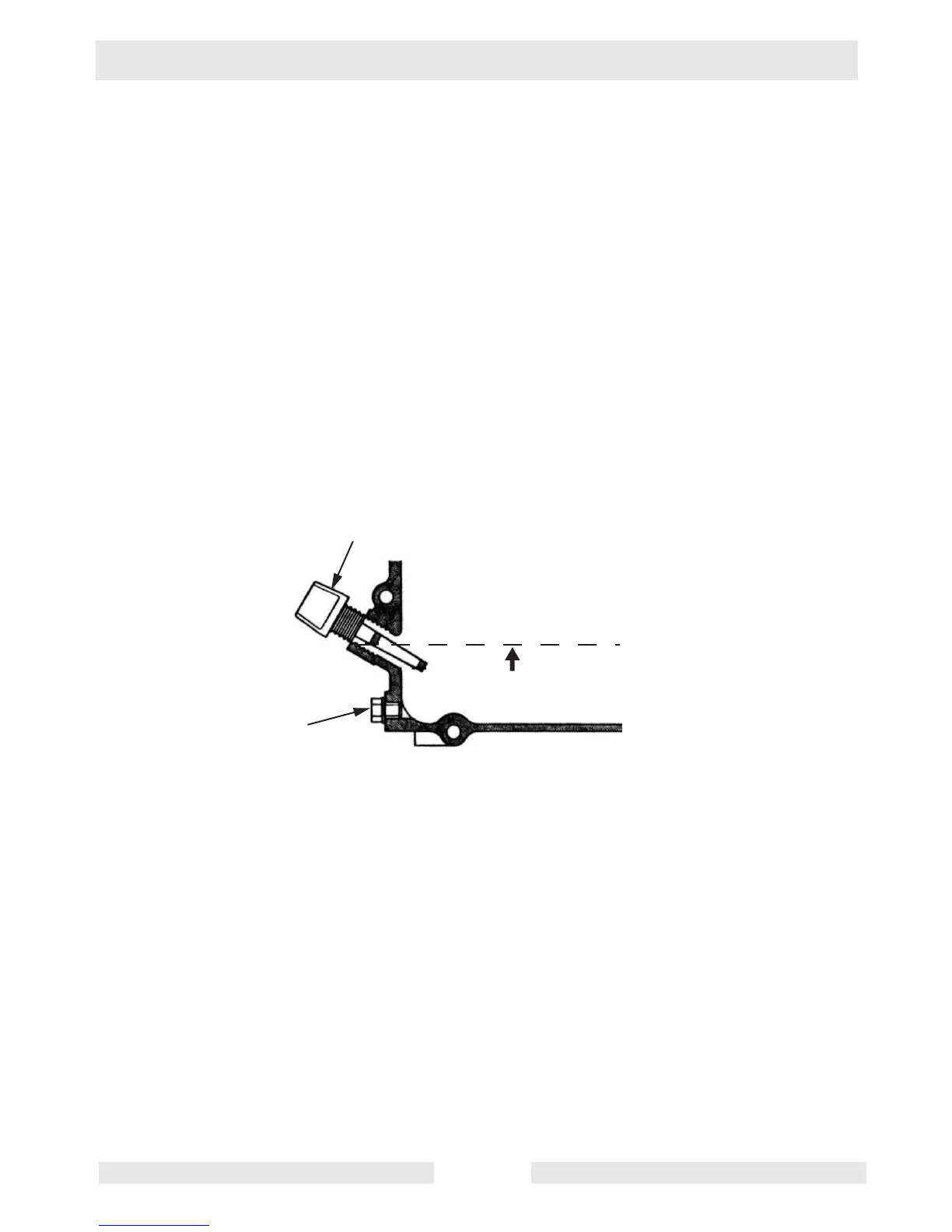

wc_gr002431
