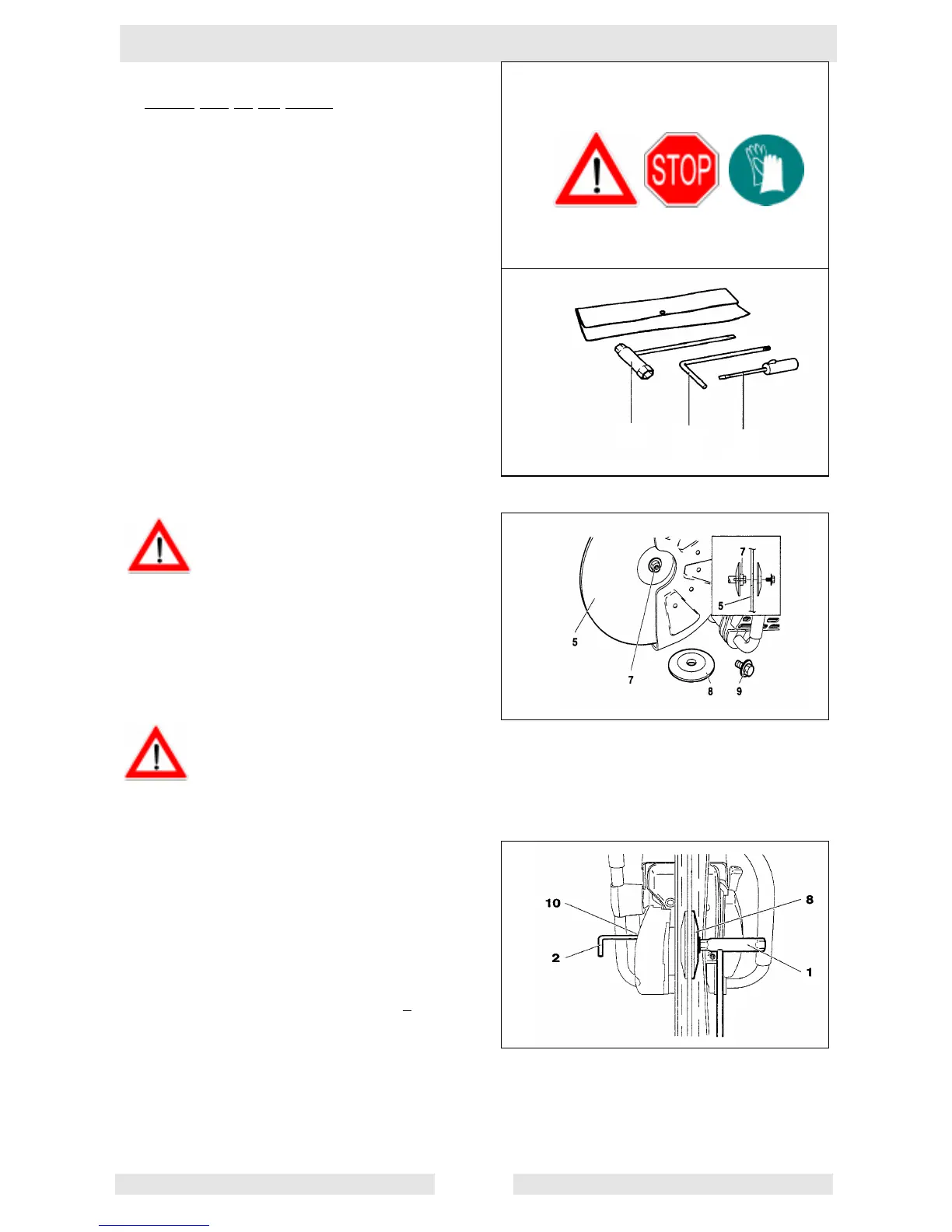

T00823GB
22
PUTTING INTO OPERATION
CAUTION:
Always turn off the engine and pull off the spark
plug cap before doing any work on the Power Cut!
Always wear protective gloves!
CAUTION:
Start the Power Cut only after complete assembly
and inspection.
For the the following work, use the assembly tools
included with delivery:
1. 13/19 AF combination wrench
2. Allen key
3. Carburetor adjustment screwdriver
Place the Power Cut on a stable surface and carry out
the following assembly steps:
Mounting the cutting disc
Inspect the disc for damage.
See SAFETY INSTRUCTIONS, Page 6.
Unscrew screw (9) and remove the spring
washer (8).
Place the cutting disc (5) on the arbour (7).
CAUTION:
When using a diamond cutting disc be
sure to mount it so that it rotates in the
proper direction!
Place the spring washer (8) on the arbour and insert
the screw (32/9) and tighten by hand.
Slowly turn the cutting disc until the stop hole of the V-
belt wheel is visible in the drive-arm hole (10).
Insert the Allen key (2) as far as it will go. The shaft is
now blocket.
Tighten the screw with the combination wrench (1).
NOTE: Tighten the screw firmly (30 + 2 Nm), as
otherwise the cutting wheel may slip during cutting.
30
1
2
3
31
32
33
