Maintenance work
T01127en.fm 54

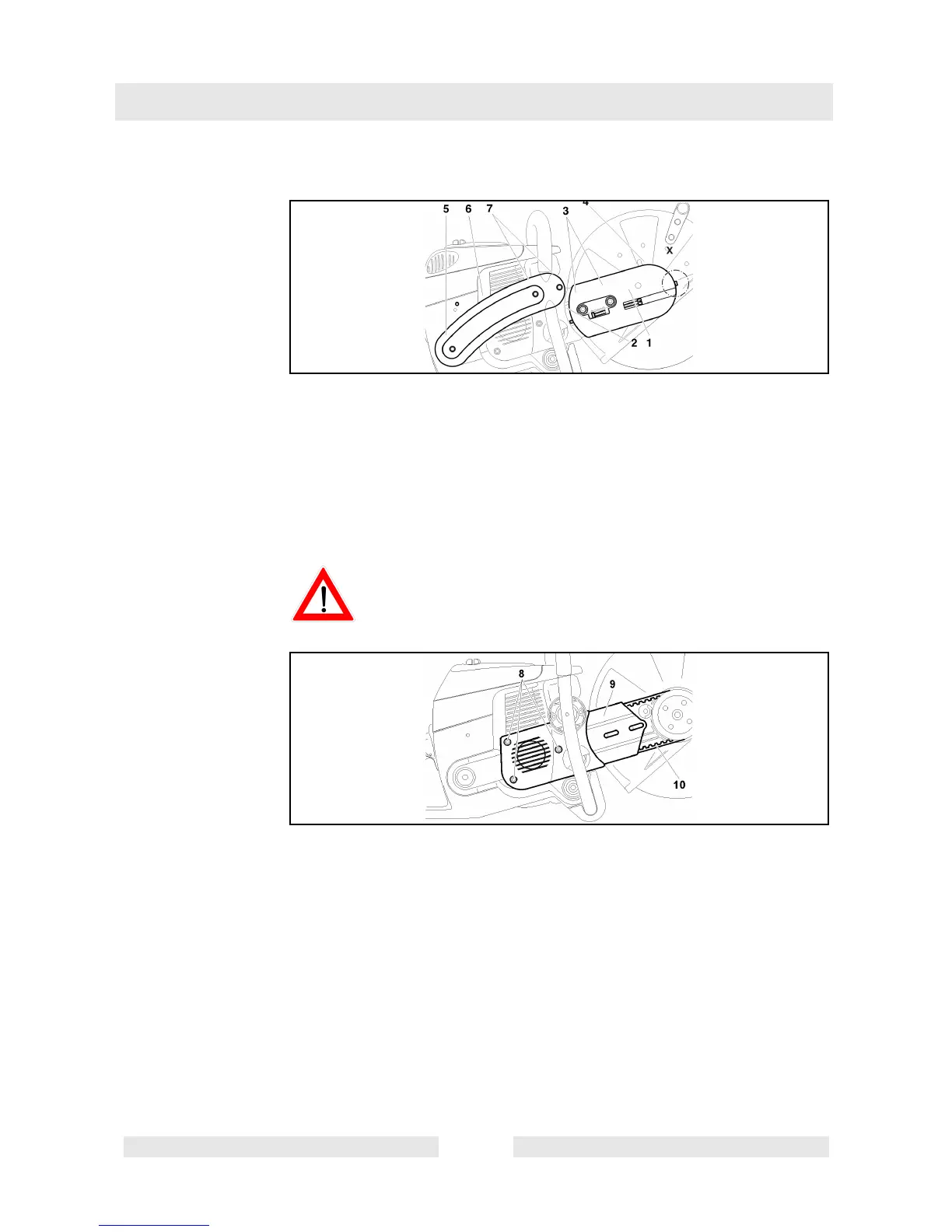

8.1 Replacing the V-belt
Loosen the nuts (3).
Loosen the tension screw (1) (counterclockwise) until you see the
screw end (2) in the gap.
Release the screw (detail X, only on BTS 1140L3) and remove it.
Unscrew the nuts (3) and remove the cap (4).
Unscrew the screws (5) and (7) and take off the side brace (6).
NOTE:
Screw (5) is longer than screws (7). Observe the installation
position during assembly!
Loosen the screws (8) and take off the crankcase cover (9).
Remove the old V-belt (10) or any leftover V-belt material. Clean the
inside of the transmission with a small brush.
Insert the new V-belt.
NOTE:
Mount the crankcase cover (9), the side brace (50/6) and the cover
(50/4) in the reverse order.
Tighten the V-belt, see Chapter "Tightening the V-belt/Checking the
tension".
