Maintenance work
T01127en.fm 56

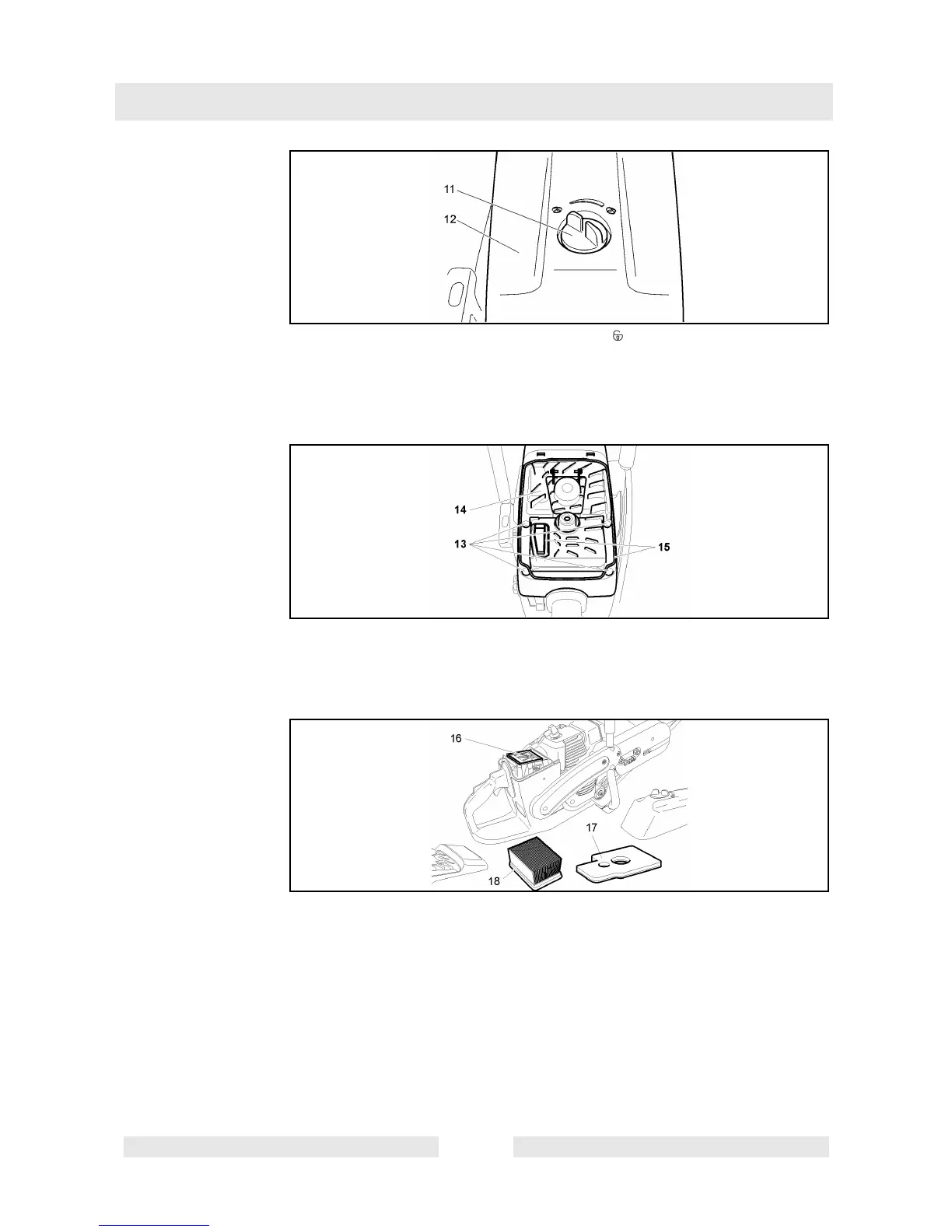

Turn the cover lock (11) to the "unlocked " position and carefully re-
move the filter cover (12).
Two sealing rings (54/15) are located between the filter cover (12) and
the hood (54/14).
Loosen the screws (13) and take off the hood (14).
Clean the sealing rings (15) using a small brush and check for signs of
damage.
Take the prefilter (17) out of the filter cover.
Pull the air cleaner cartridge (18) out of the hood.
Take the internal filter (16) off the suction head.
Note:
Protect the carburetor to prevent dirt from falling into it!
Put the multifunction switch in the "Choke" position or cover the carbu-
retor with a clean cloth.
53
54
55
