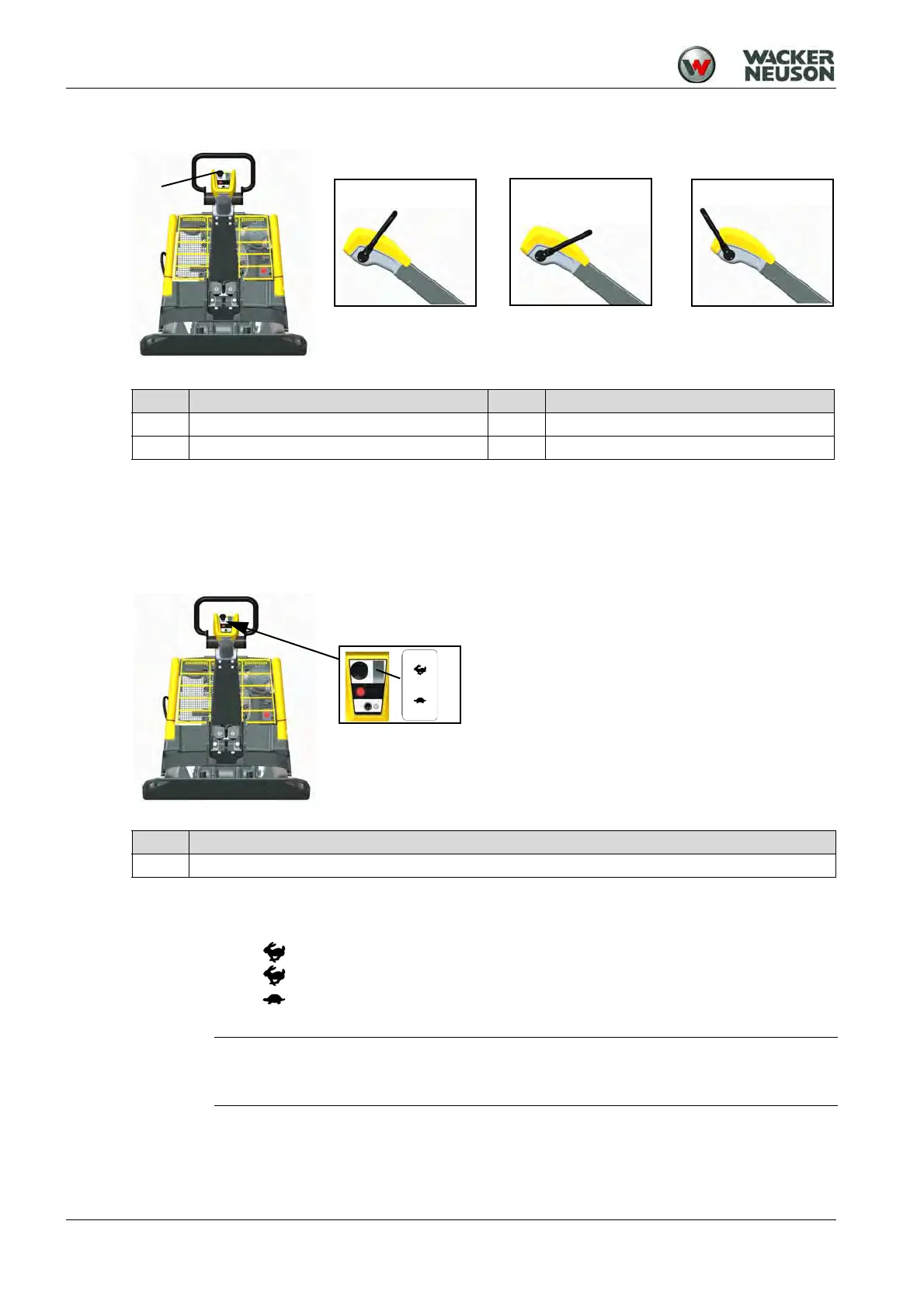

8.4.1 Operating machines with center pole
1. Pull vibration switch
2. Select travel direction and speed with the control handle.
Speed display by lighting of the slow/fast-rocker switch or flashing for intermediate positions.
Switch slow/fast mode on and off
Slowly press the slow/fast switch up to increase the speed.
Slowly press the slow/fast switch down to reduce the speed.
If the control lamp lights up, the maximum speed is set.
If the control lamp lights up, the speed is lower than the maximum.
If the control lamp lights up, the lowest stage is reached.
Item Designation Item Designation
1 Vibratory rammer 3 Forward
2 Central position of control handle 4 Reverse
Item Designation
1 Slow/fast rocker switch
NOTICE
To switch from maximum to minimum (or vice versa) speed, the slow/fast operation button
must be presser for approx. 2–3 s.
