9.4.7 Check exciter oil level and top off exciter oil
Check the exciter oil level
1. Open rear protective hood.
2. To protect the floor from leaking oil, cover the working surface with an impermeable foil.
3. Remove dirt accumulation in the area of the screw plug.
4. Unscrew the screw plug of the oil filler / drain opening and remove together with the seal ring.
5. Check whether the level of exciter oil reaches the lower thread of the tapped bore.
Top off the exciter oil
1. Top off the exciter oil with a clean funnel at the oil filler / drain opening until the exciter oil reaches the
lower thread – for the oil specification, see the Technical Data chapter.
2. Screw in the screw plug of the oil filler / drain opening along with a new seal ring and tighten (torque
setting of 100 Nm).
3. Wipe away any spilled oil.

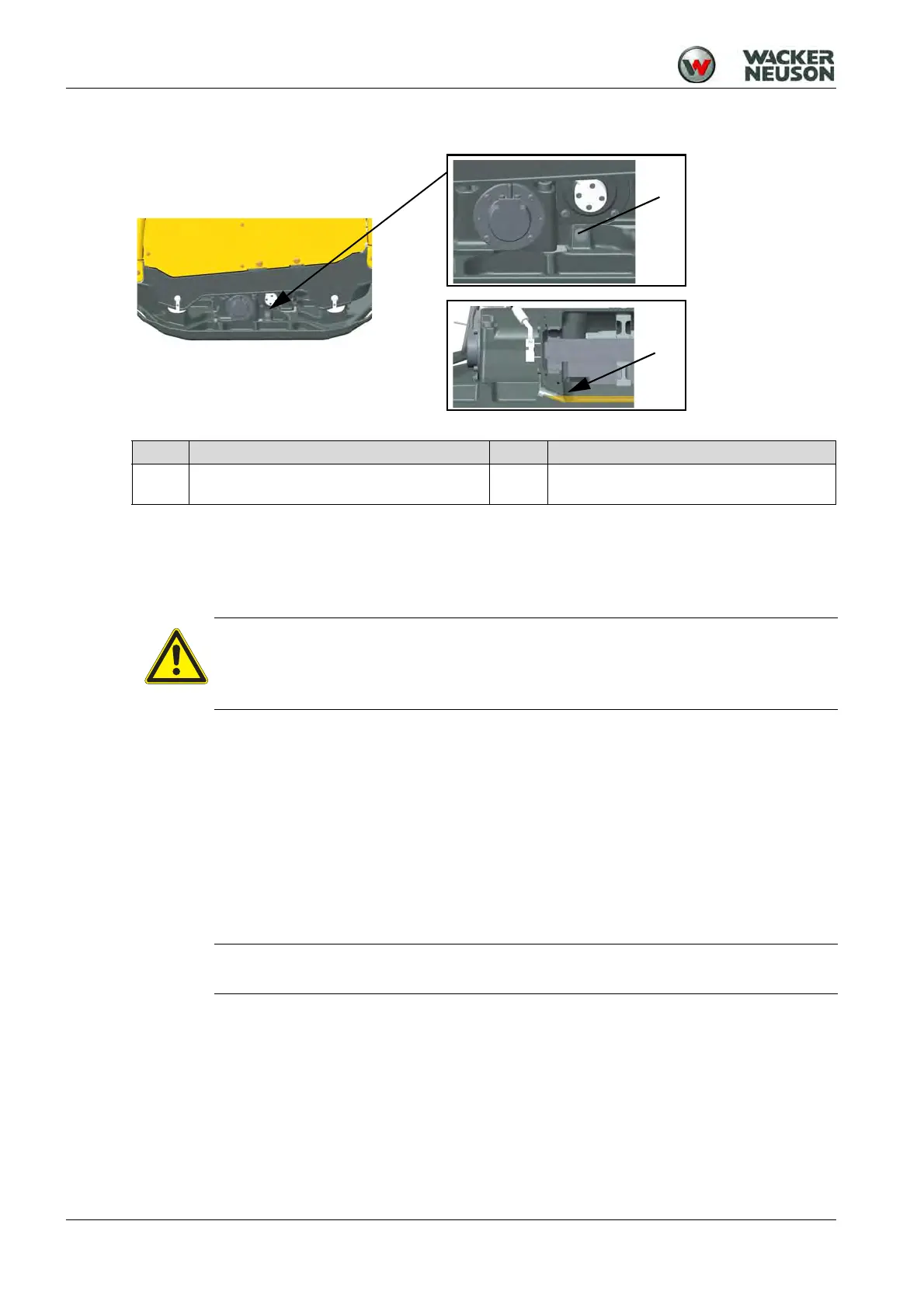

Item Designation Item Designation
1 Screw plug with seal ring of the oil filler / drain
opening
2 Level of exciter oil
WARNING
Hot exciter oil can leak out and cause injury from scalding.
Do not open the screw plug of the exciter while the exciter oil is still hot.
Let the machine cool.
NOTICE
Dispose of oil in accordance with the applicable provisions for environmental protection.
