Operation
Starting vehicle travel
After starting the engine:
☞Slowly actuate the drive lever
➥Machine travel starts
Never move control levers too fast:
Accident hazard, the machine can tip over!
☞Perform precise and smooth movements with the control levers.
The machine has no rearview mirrors –
Accident hazard when reversing!
☞The operator must be guided by another person if he does not have suffi-
cient visibility to the rear.
Drive levers
Never operate the machine with the skip tilted out and with the loader unit
lowered.
☞Tilt in the skip.
☞Raise the loader unit.
The drive movements of the machine are controlled with drive levers 3 and 4.
Ensure that both tracks move as you change direction, otherwise the rubber tracks
are subject to increased abrasion.

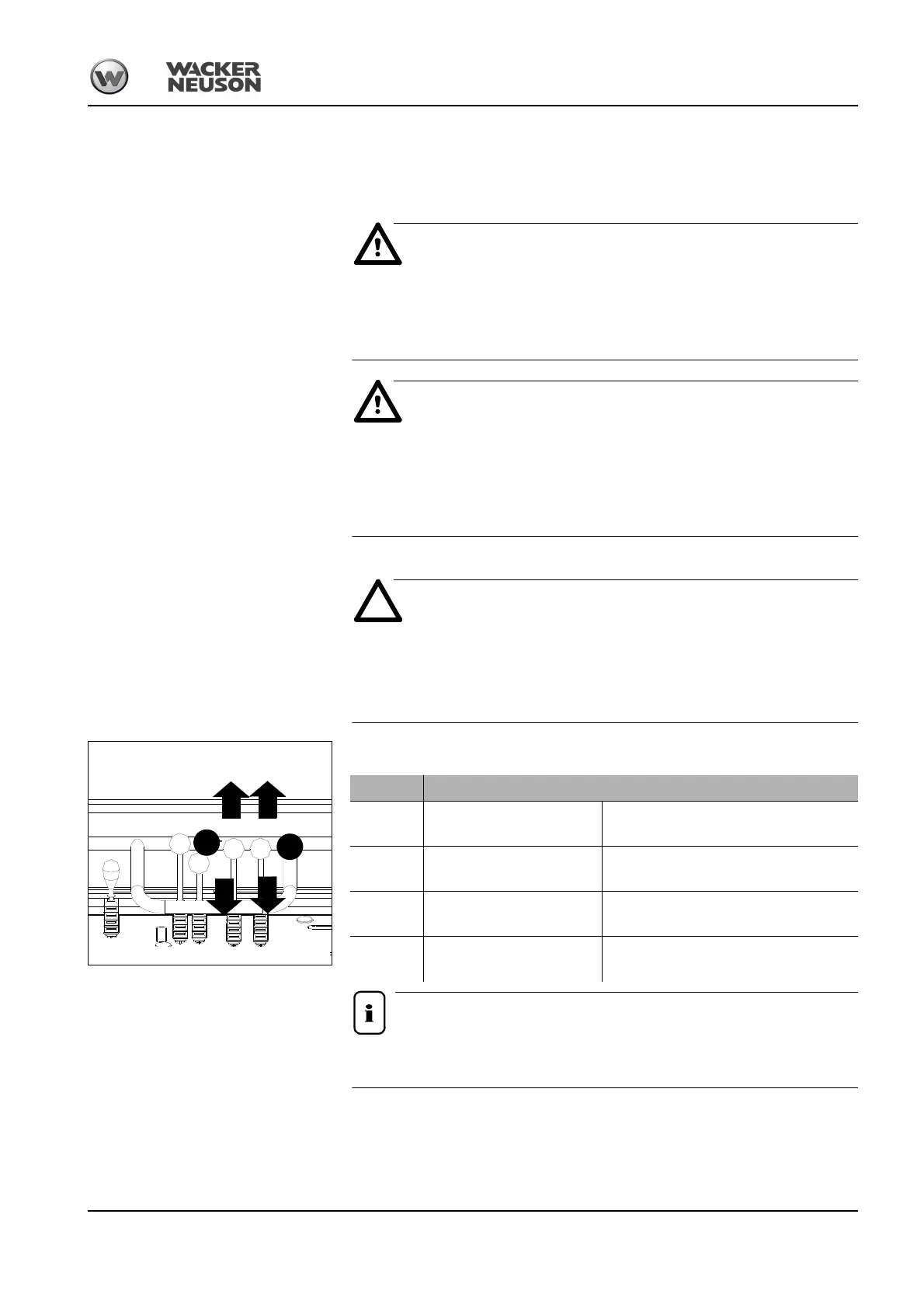

Fig. 34: Drive levers
3
4
C
A
B
D
Position Function
•A
•B
3 Push forwards
4 Push forwards
Track dumper moves forward
•C
•D
3 Pull backward
4 Pull backward
Track dumper moves backward
•C
•B
3 Pull backward
4 Push forward
Track dumper turns to the left
•A
•D
3 Push forward
4 Pull backward
Track dumper turns to the right
