3.7 Engine Monitoring
Description

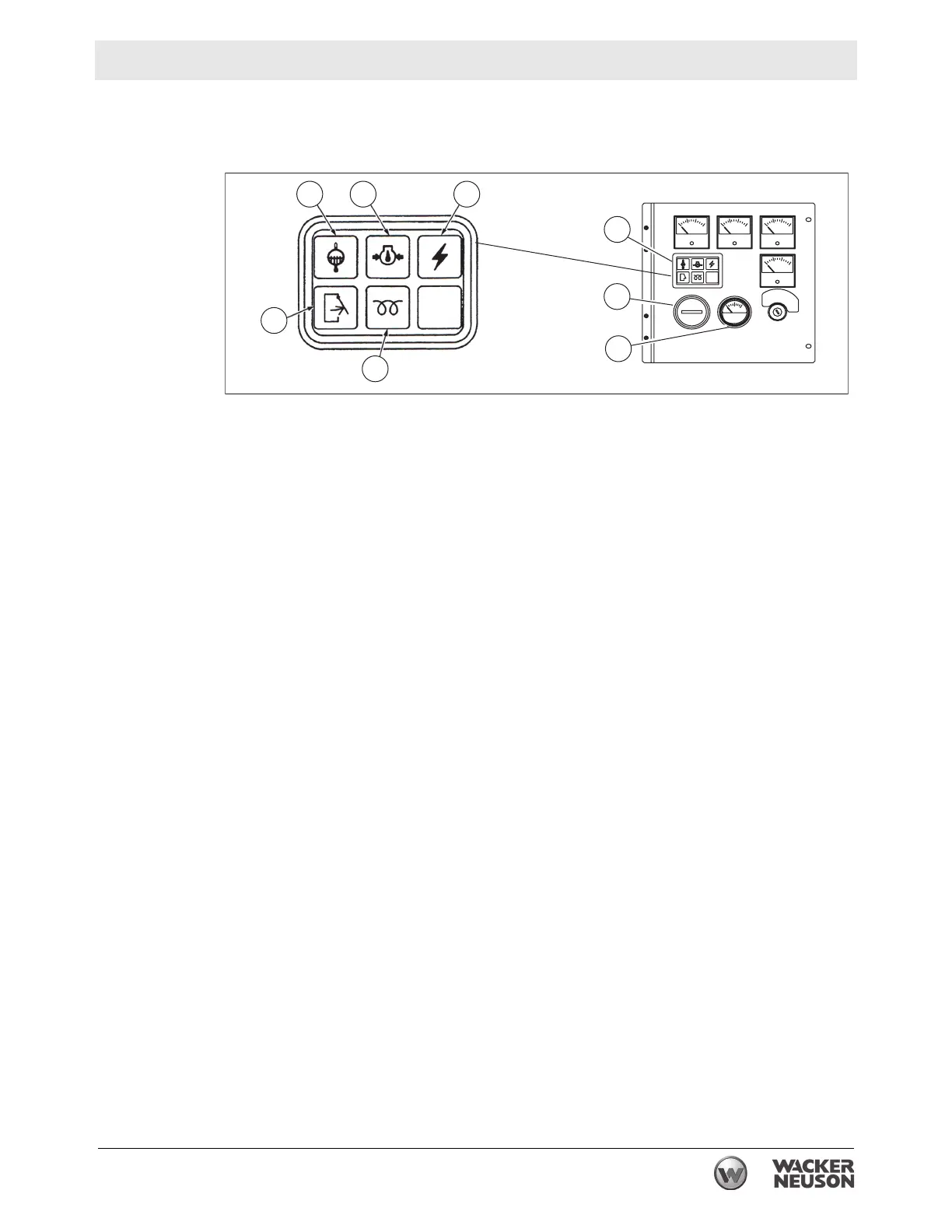

Engine operating information is displayed on two gauges (r, s) and on the indicator
panel (f).
Engine
information
Engine Hours (r)—Displays the number of hours that the engine has been run.
Engine hours accumulate only when the key is in the RUN position.
Fuel (s)—Indicates the level of fuel in the fuel tank.
Indicator panel (f)—In addition to displaying an alert when the glow plug pre-heat
timer is active (5), the indicator panel alerts the operator to fault conditions affecting
engine operation:
Water temperature (1): the engine is overheating
Oil pressure (2): the engine oil pressure is too low
Battery charge (3): the battery is not charging or the alternator belt has broken
Load center cover open (4): the main line circuit breaker will trip, but the engine
will continue to run.
