3.8 Convenience Receptacles
Description

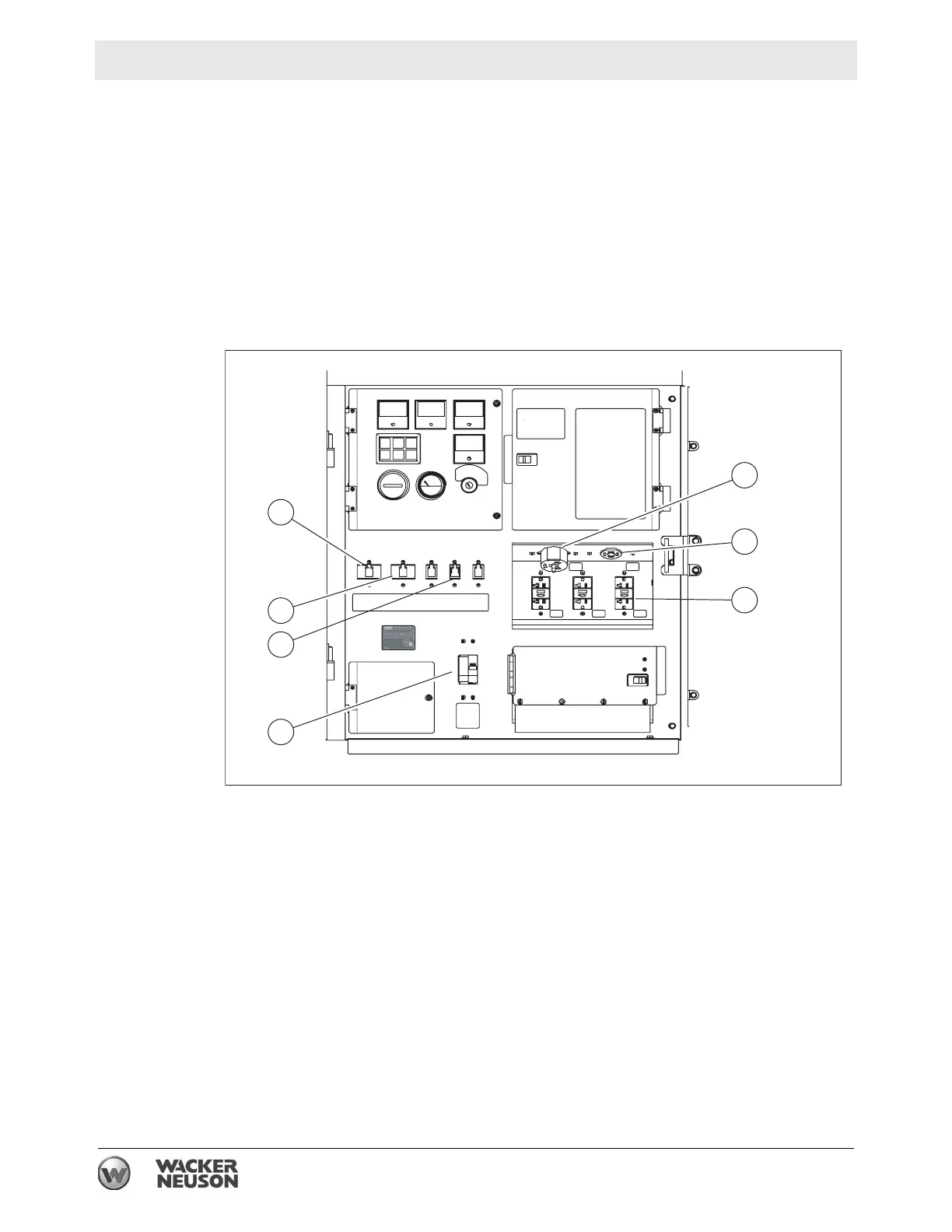

The generator is equipped with :
one120V/240V twist-lock receptacle (l) rated at 50A
one120V/240V twist-lock receptacle (m) rated at 30A
three 120V duplex receptacles (n) with ground fault interrupts (GFI)
Receptacles connect through the main line circuit breaker (c). In addition, each
receptacle is protected by its own circuit breaker (o, p, q).
Power to the receptacles is available only when the main line circuit breaker and
the receptacle circuit breakers are closed.
q
p
c
o
n
m
l
wc_gr006209
