1A-16
1A OPERATION G2.5A

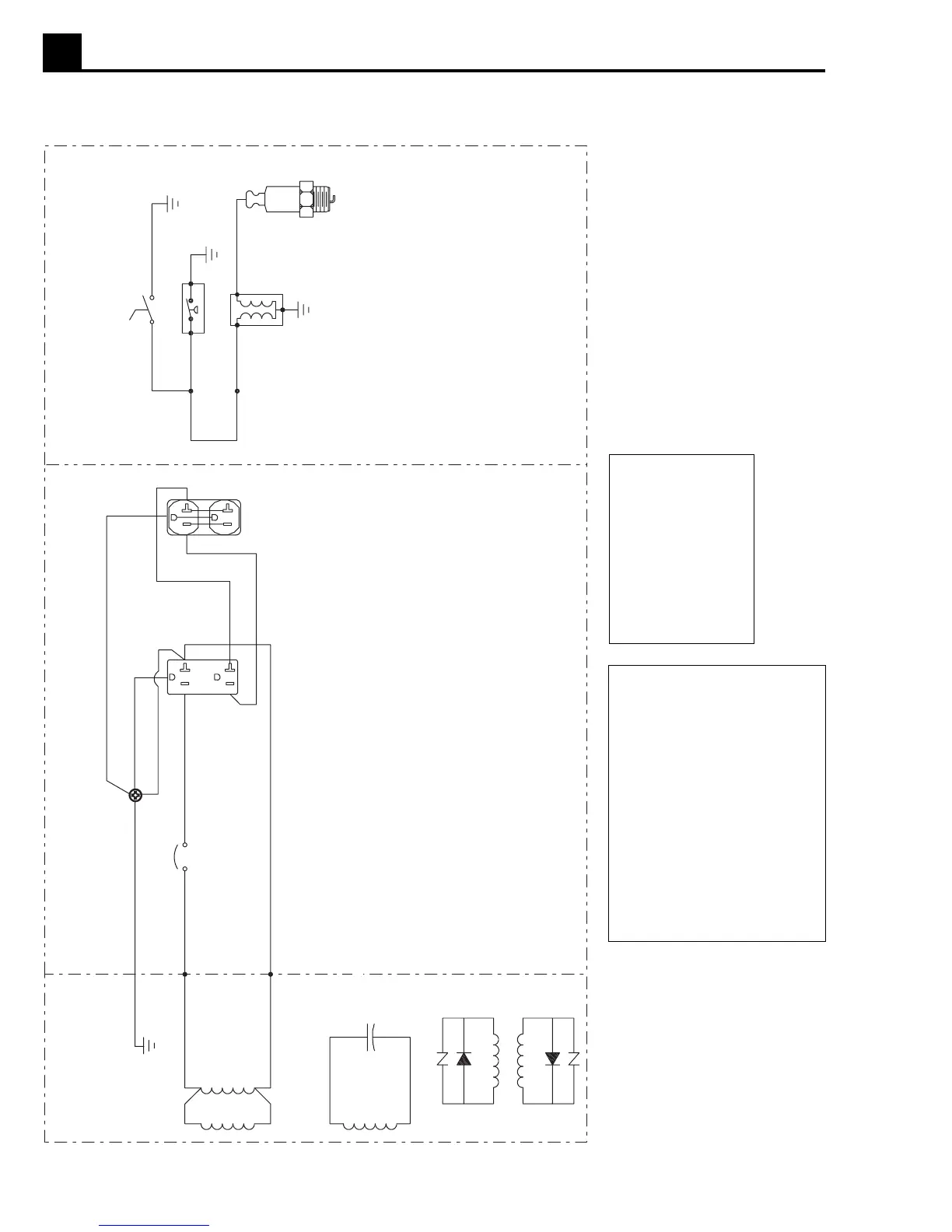

1.30 Wiring Schematic
Wire Colors
B - Black W- White
G - Green Y - Yellow
L - Blue Br- Brown
R - Red T - Tan
O - Orange
B
G
W/Y
G/Y
B/R
20A
B/Y
120VAC
B
Y
G/Y
20A
20A
120VAC
B
A
R
1
W
R
W
2
3
B
4
B
25 uF
400 V
G/W
G
wc_gr000262
BC
1
2
3
4
5
7
6
0
1
A= Generator
B= Control Box
C= Engine
1= Main Windings
2= Auxiliary Windings
3= Capacitor
4= Rotor Windings
5= Ingnition Switch
6= Oil Level Switch
7= Coil
