Operation GPi 1700
wc_tx001234gb.fm
24

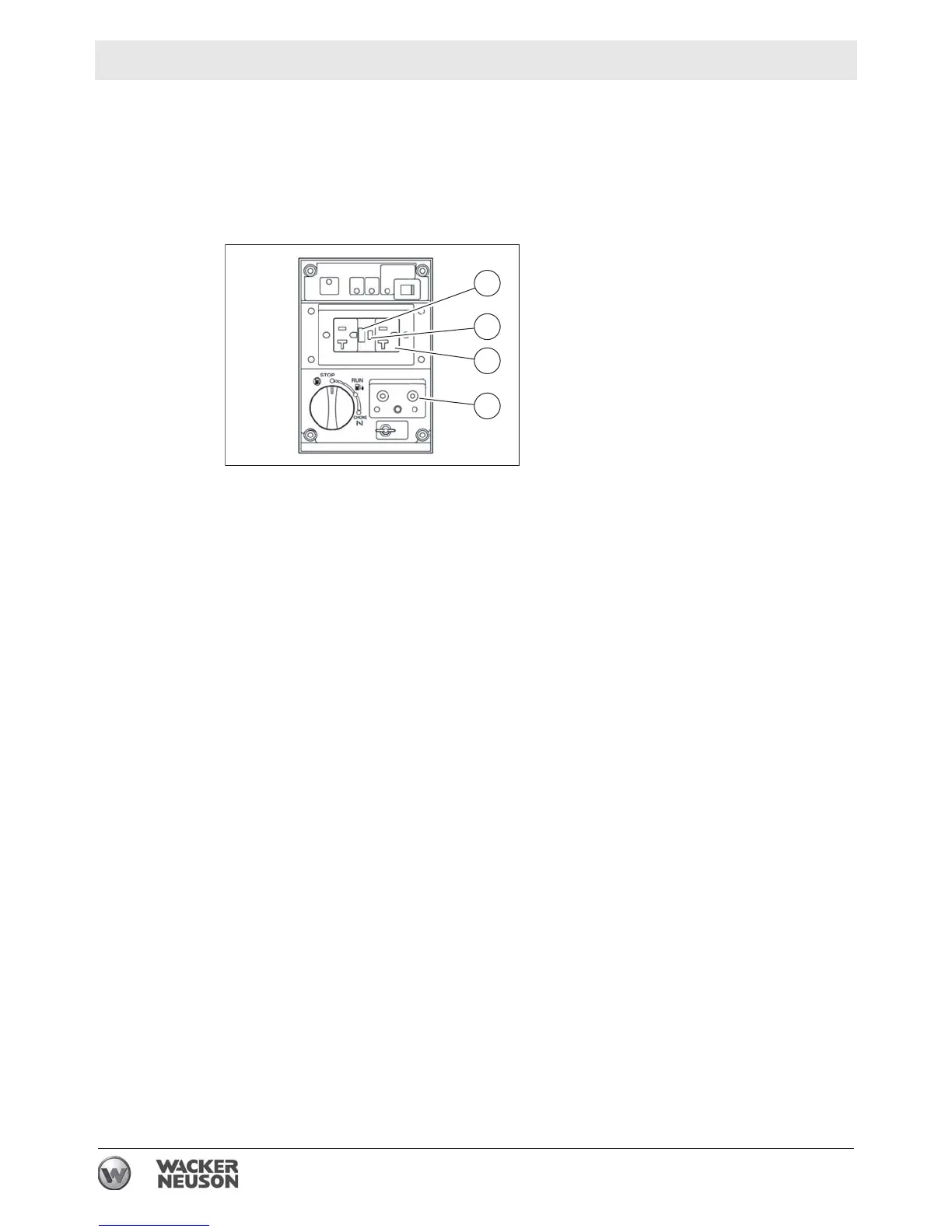

2.9 Customer Connections
Description
The generator is equipped with :
one 120V duplex receptacle (u) with a ground fault circuit interrupt (GFI)
one pair of DC terminals (v) exclusively intended for charging 12V automotive-
style batteries. See Using DC Power for more information.
Testing GFI
operation
The GFI cuts power to the receptacle when a ground fault occurs to a piece of
equipment attached to the generator. Follow the procedure below to test the GFI
for proper operation every time the generator is used.
1. Disconnect all equipment from the generator.
2. Start the generator.
3. Push the blue TEST button (u1) on the receptacle. Pushing the TEST button in
cuts power to the receptacle and causes the red RESET button (u2) to pop out.
NOTICE: If the RESET button does not pop out, the GFI is not working. Do not
operate the generator until the problem can be corrected.
4. Push the RESET button to restore power to the receptacle.
If the RESET button pops out during operation, stop the generator and check the
equipment attached to the generator for defects.
wc_gr006739
v
u
u2
u1
