GPi 1700 Operation
wc_tx001234gb.fm
25
2.10 Grounding the Generator
Location
The ground lug (x) is located below the DC terminals.
Function
This ground connection is used for electrically grounding the generator when
necessary to comply with the National Electrical Code and other federal, state, and
local regulations. For grounding requirements in your area, consult with a qualified
electrician, electrical inspector, or local agency having jurisdiction over electrical
compliance.
If the generator is used at a construction site, there may be additional
regulations which must be observed.
In some areas, generators are required to be registered with local utility
companies.
Connection
Connect the ground lug to a good earthen ground for proper operating safety in
compliance with NEC and local standards. The following options may be used:
Connect the ground lug to a grounding spike (x1) and drive the grounding spike
into the earth.
Connect the ground lug to an existing grounded conductor.

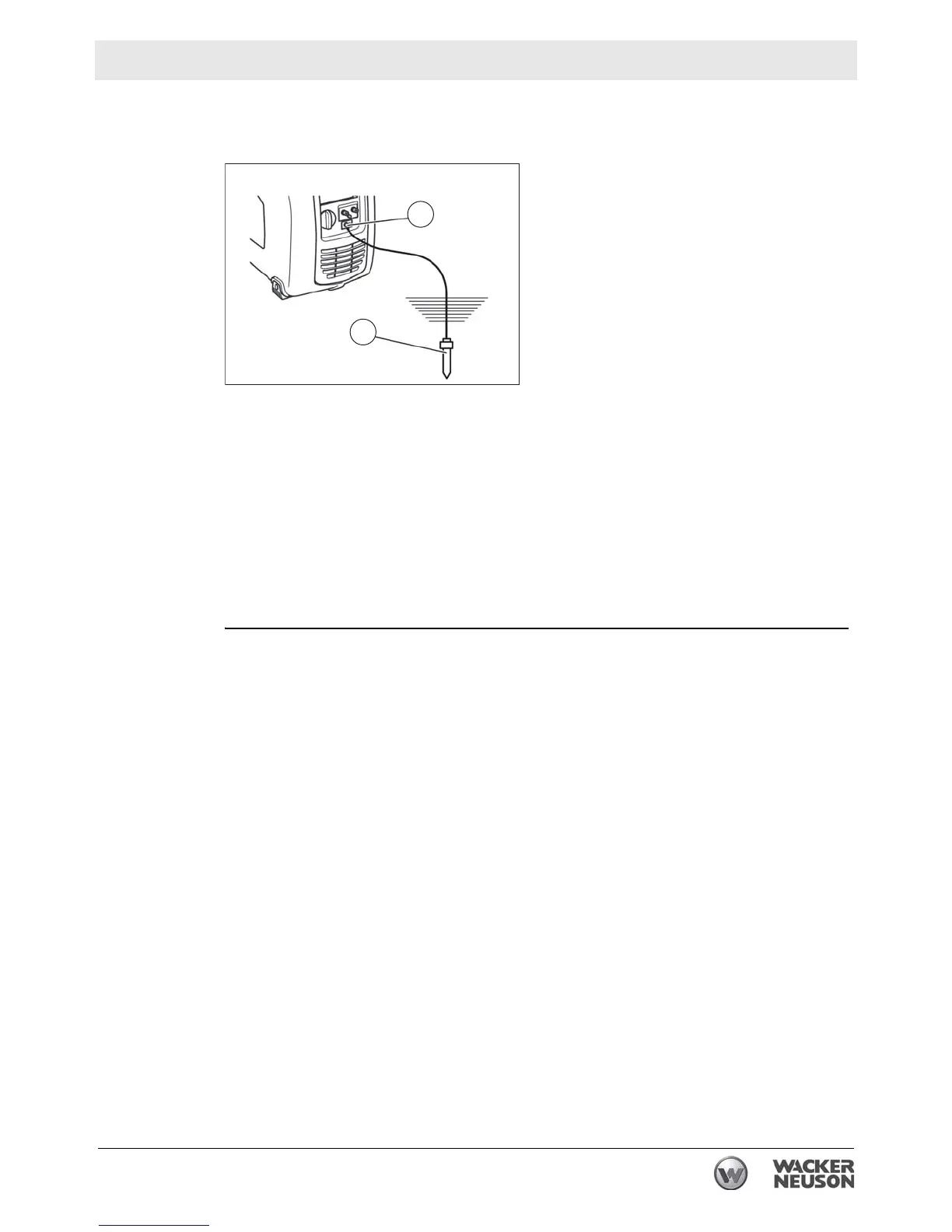

wc_gr006652
x
x1
