4.22 Parking Brake Adjustment
See Graphic: wc_gr002953
The parking brake is located on the rear drive motor drum support, and
is used to prevent the roller from moving when the engine is turned off.
Adjust brake for proper holding force as follows:
4.22.1 Unscrew brake lever knob (42) until brake can be applied with
moderate force (approx. 30 lbs.).
4.22.2 Start roller on level ground and try to travel forward and reverse with
brake applied. If roller drives through brake, stop machine, tighten
lever knob one turn and repeat process.
4.22.3 When machine no longer moves with brake set, stop machine, turn
knob one more turn and brake is properly set.

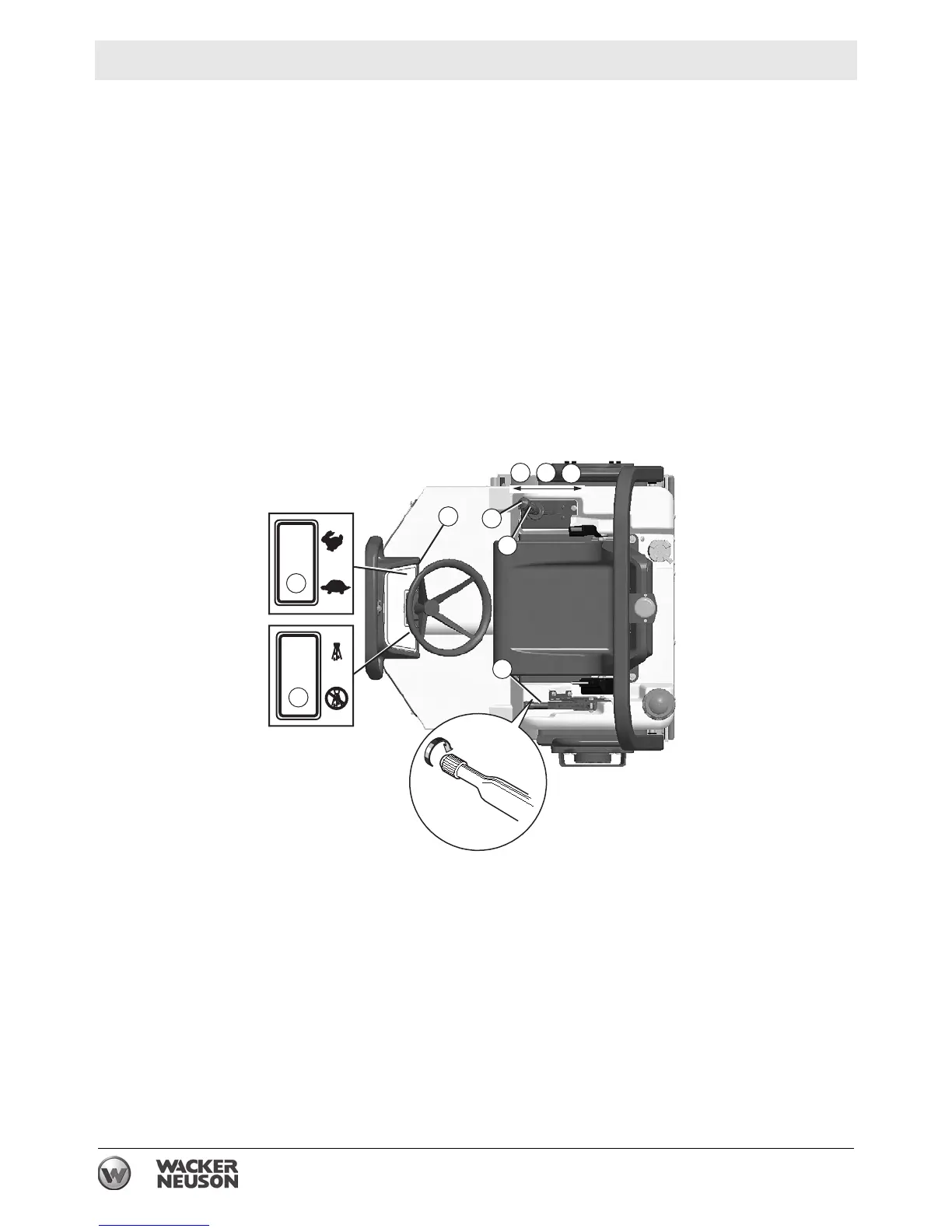

wc_gr002953
N
F
R
61
42
10
15
55
54
