RD 12A Schematics

wc_tx001559gb.fm

7 3

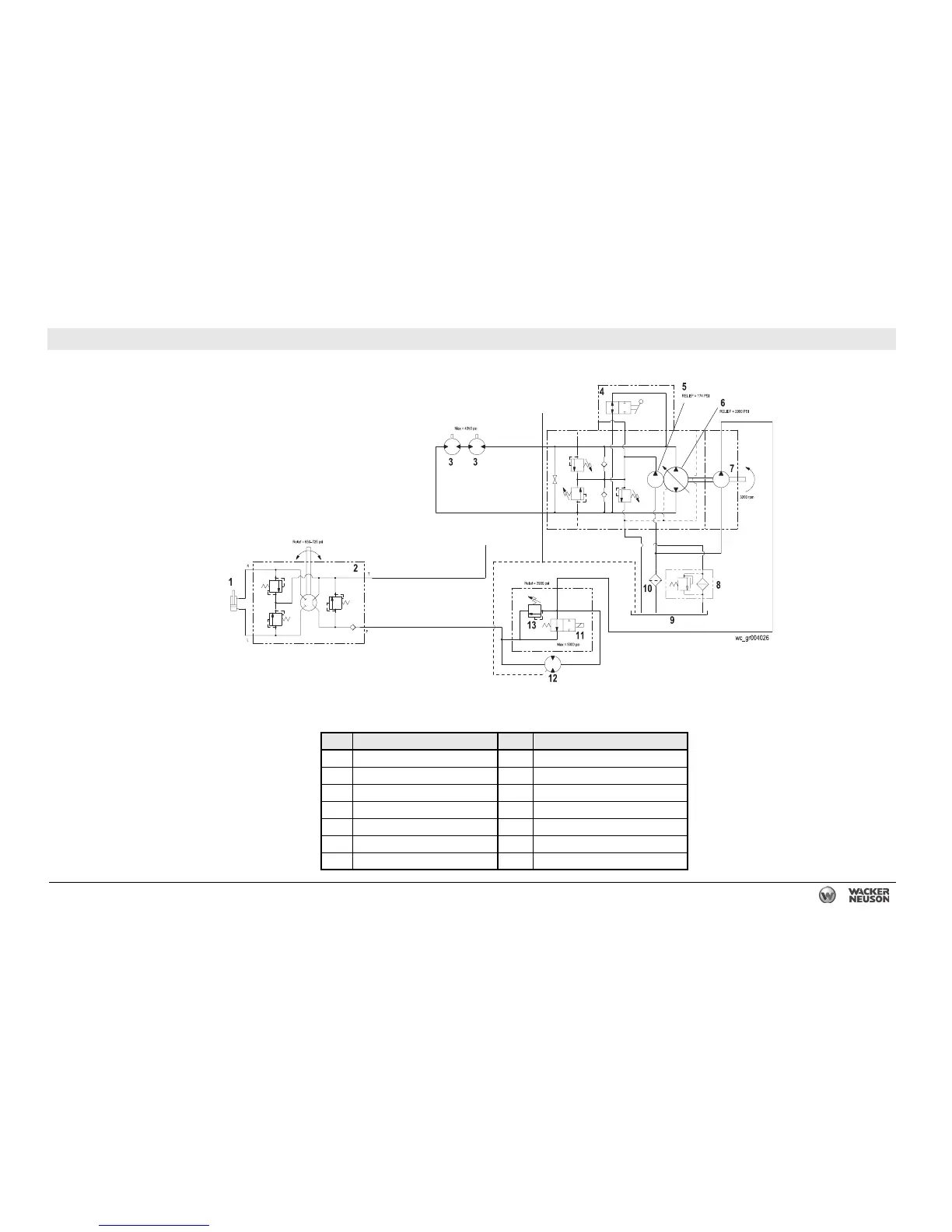

7.3 Hydraulic Schematic

7.4 Hydraulic Schematic Components

Ref. Description Ref. Description

1 Steering cylinder 8 Return filter

2 Steering unit 9 Tank

3 Drive motor 10 Suction strainer

4 Bypass lever 11 Vibration solenoid valve

5 Charge pump 12 Exciter motor

6 Main pump 13 Pressure relief valve

7 Exciter pump - ---
