Operation CT 24-4A
22 wc_tx001521gb.fm
4.5 Unfolding Handle

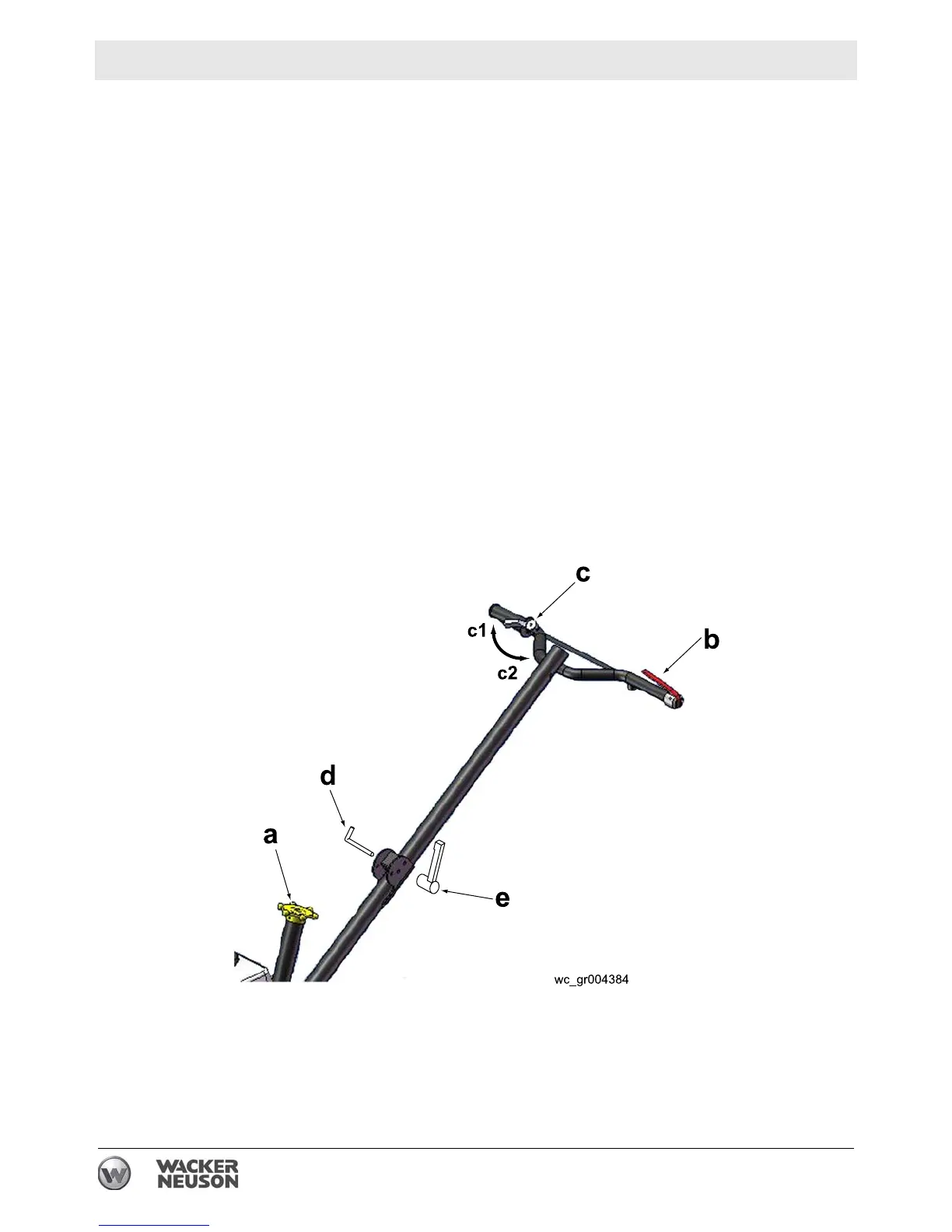

See Graphic: wc_gr004384
On new machines the pipe handle comes folded with the following
components attached: Twist pitch control (a), Operator Present Lever
(b), throttle lever (c), hinge pin (d), and adjustable lever (e).
To unfold and secure the pipe handle assembly:
4.5.1 While holding the hinge pin, unscrew and remove the adjustable lever
and metal washer.
4.5.2 Remove the hinge pin.
4.5.3 Straighten the pipe handle and re-insert the hinge pin.
4.5.4 Replace the metal washer over the threaded end of the hinge pin, and
re-install the adjustable lever.
4.5.5 Tighten the adjustable lever to lock the pipe handle in its fully opened
position.
