HAVING TROUBLE?
Page 120
Contents
Index
Testing a 4D Mouse or Lens Cursor
1. Test the buttons on your 4D Mouse or Lens Cursor by clicking each button. The tablet’s status LED
should change color, and the S
WITCHES state should display the values shown on the buttons for each
button pressed.
2. If you are testing a 4D Mouse, move the fingerwheel to the front, center, and rear positions.
The W
HEEL status should change from approximately +1023 to -1023, with a center value of zero.
3. If you have a 4D Mouse, rotate it on the tablet. The R
OTATION value should change to reflect your
movement.
4. When you are done, click on the C
LOSE button to exit the dialog box.
1
2 3
54

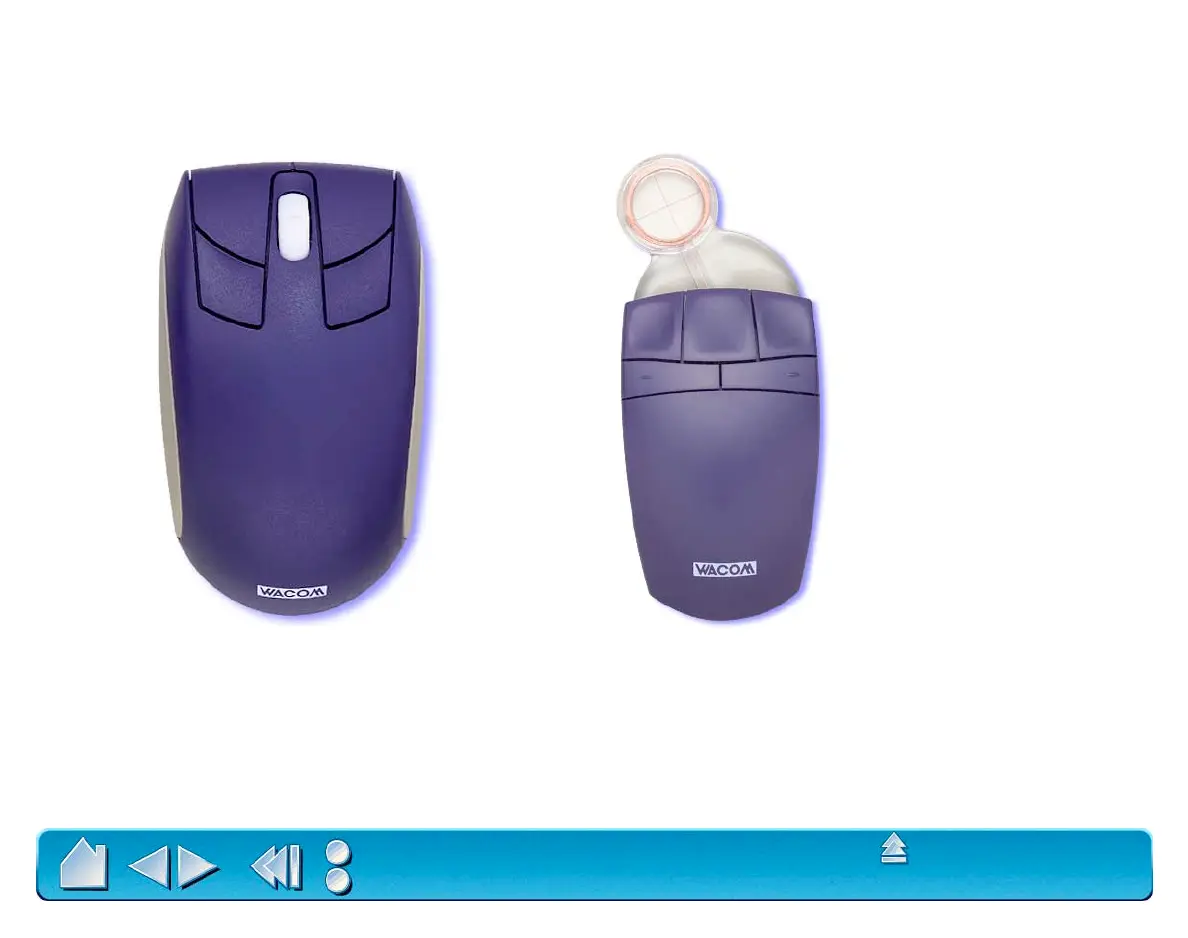

4D Mouse Lens Cursor
1
23
54
Note: Objects not
shown to scale.
