WAGNER 0558021 Operating Manual

30 ProSpray 3.25
Spare parts list
ProSpray 3.25
9
10
811
12
1
2
3
5
6
7
4
13
17
14
15
16
13

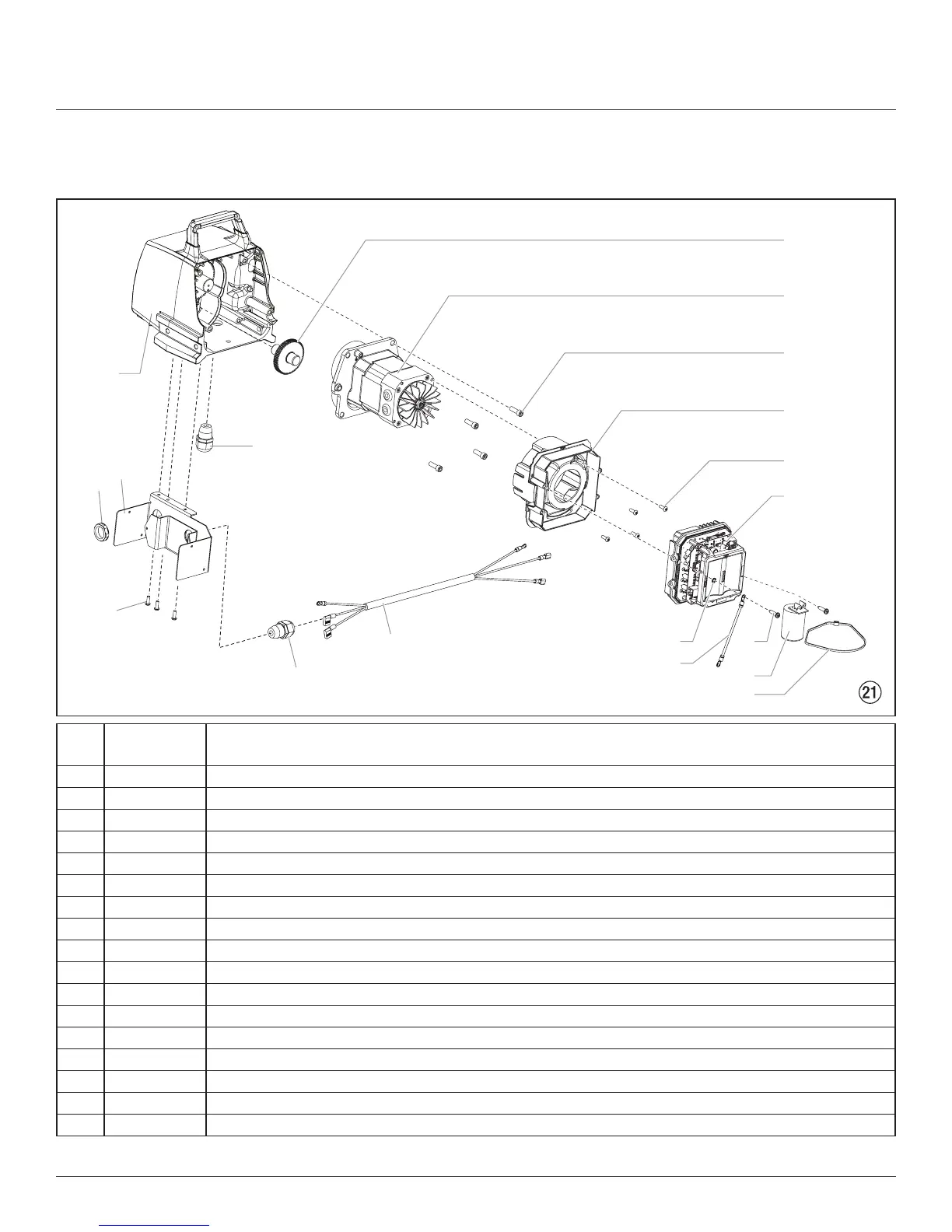

Drive Assembly
Item Part No. Description
1 0524 637A Housing assembly
2 0509 121 2nd stage gear
3 0558 300A Motor assembly
4 0508 559 Screw (4)
5 0290 226 Bafeassembly
6 0509 218 Screw (2)
7 0558 534 Electronic control assembly
8 9802 266 Screw
9 0522 036 Capacitor assembly
10 0551 543 Tie wrap
11 9822 106 Washer*
12 0522 040 Wire assembly*
13 0551 714 Cord grip (2)*
14 0558 449 Bracket*
15 0551 980 Lock nut*
16 0509 218 Screw (3)*
17 0558 476 Power cord jumper
* Australia only
