Description of unit
15
14
13
12
11
16
7
1
3
4
17
6
5
9
10
3
4
2
8
3.3 Legend for explanatory diagram ProSpray 3.25
1 Spray gun
2 High-pressure hose
3 Return hose
4 Suction hose
5 Frame
6 Drip cup
7 Power cord
8 Relief valve
Lever position vertical – PRIME ( k circulation)
  Leverpositionhorizontal–SPRAY(p)
9 Oil button
10 Oil level gauge
 11 ON/OFFswitch
12 Control panel indicators
13 Pressure control knob
14 Digital Electronic Spray Control (DESC)
15 Oil cup for EasyGlide (EasyGlide prevents
increased wear of the packings)
16 Pusher stem
17 Pail hook (high cart)

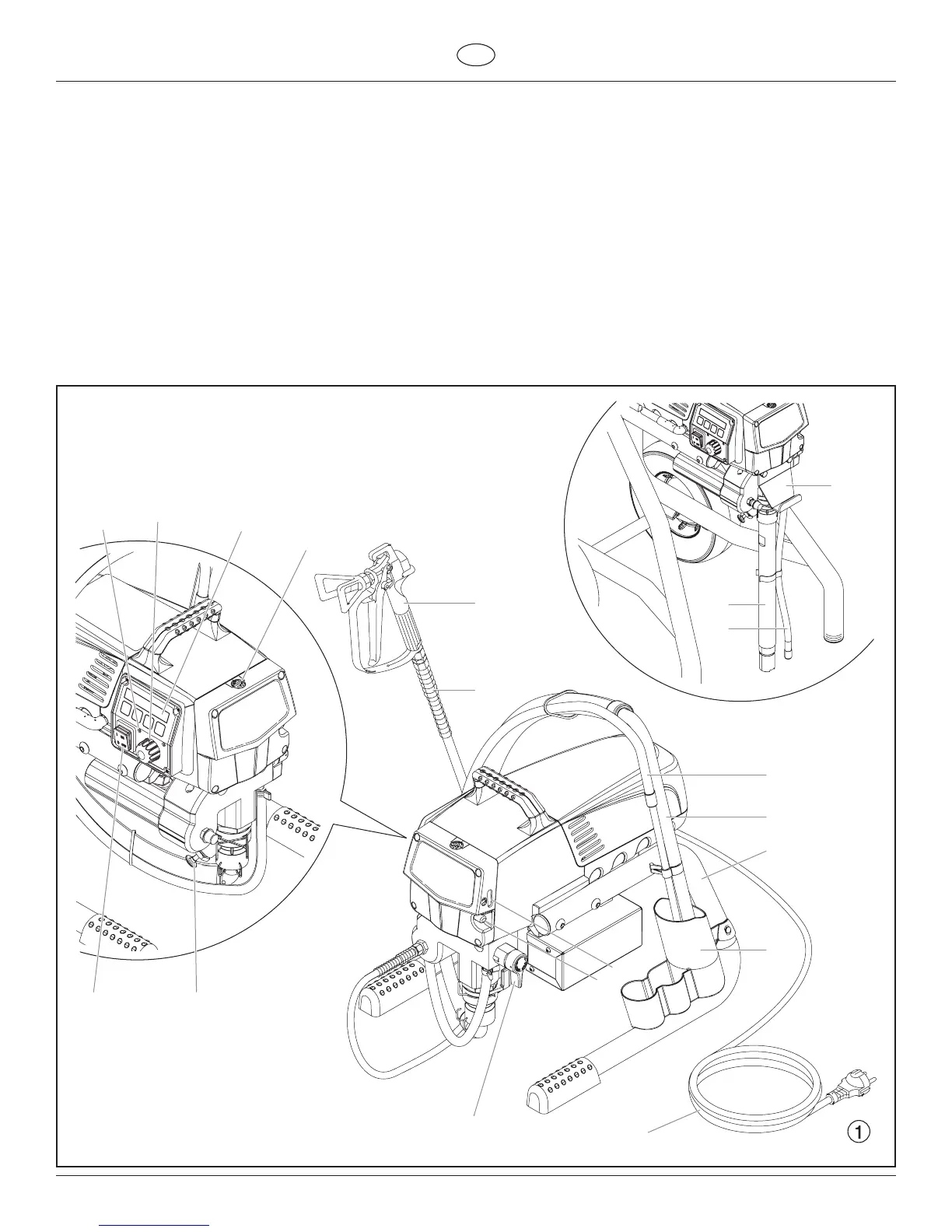

3.4 Explanatory diagram ProSpray 3.25
