WAGNER 0558021 Operating Manual

8 ProSpray 3.25
GB
Description of unit Starting operation
3.5 Technical data
Voltage: 220~240VoltAC,50/60Hz
Max. current consumption: 6.0A@230VAC
Power cord: 3 x 1.5 mm
2
– 6 m
Acceptance capacity: 1100 Watt
Max. operating pressure: 221 bar (22.1 MPa)
Volume ow at 12 MPa
(120 bar) with water: 2.6 l/min
Max tip size: 0.027 inch – 0.69 mm
Max. temperature of the
coating material: 43°C
Max viscosity: 25.000 MPa·s
Weight:
Stand: 17.9 kg
Cart: 27.4 kg
Low cart: 27.4 kg
Special high-pressure hose:DN6mm,15m,connection 
thread M 16 x 1.5
Dimensions (L X W X H):
Stand: 436 x 369 x 416 mm
High cart: 611 x 481 x 734 mm
Low cart: 1148 x 541 x 485 mm
Max sound pressure level: 80 dB (A) *
* Place of measuring: 1 m in distance from the unit and 1.6
mabovetheoor,12MPa(120bar)operatingpressure,
reverberantoor.
3.6 Transportation
Pushing or pulling the unit

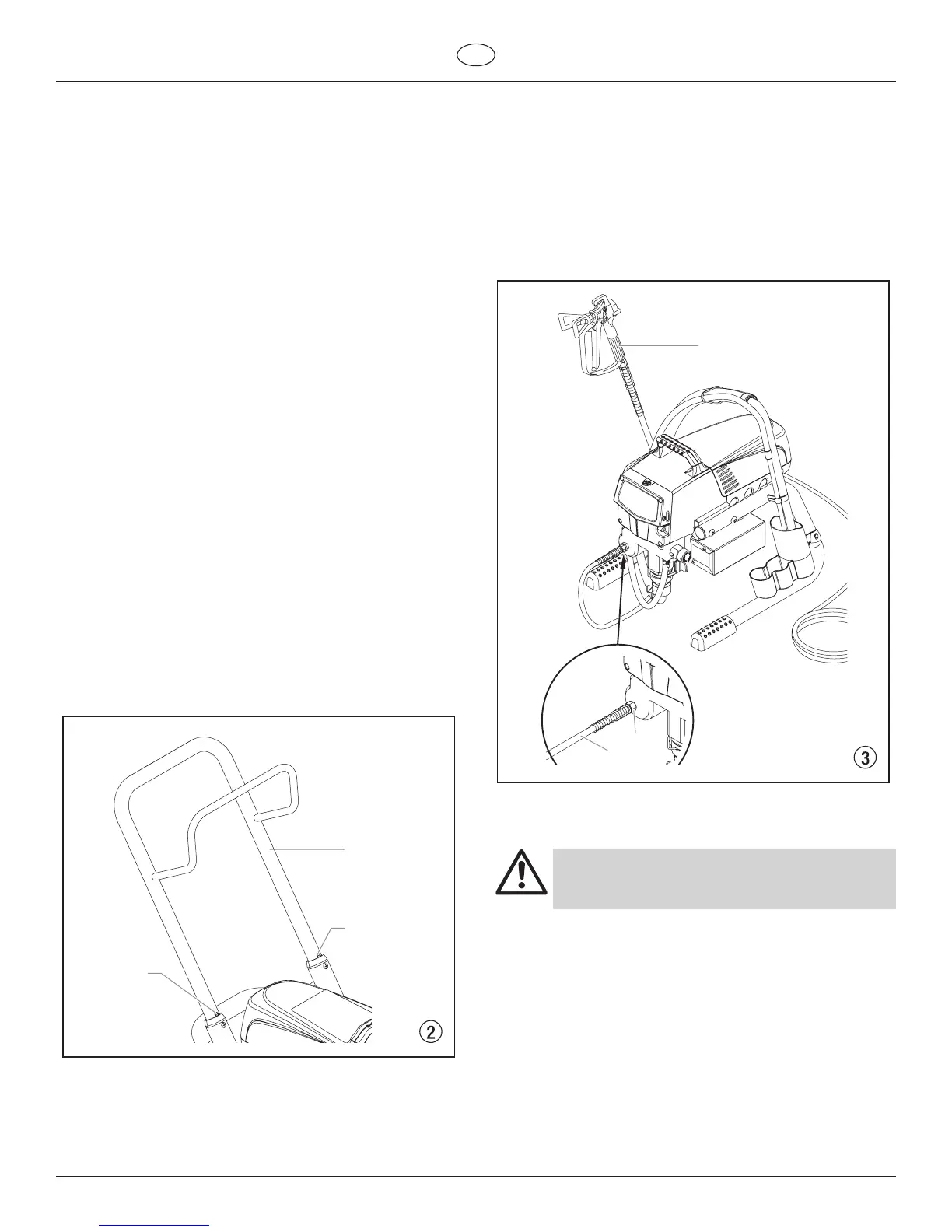

Pull out the handle (Fig. 2, Item 1) until it will come no further.
Insert the handle – push the buttons (2) on the spars, and then
push in the handle.
2
1
2
3.7 Transportation in vehicle
Secure the unit with a suitable fastening.
4. Starting operation
4.1 High-pressure hose, spray gun and
separating oil
1. Screw the high-pressure hose (2) to the coating material
outlet (Fig. 3, Item 1).
2. Screw the spray gun (3) with the selected tip onto the
high-pressure hose.
 3. Tightentheunionnutsatthehigh-pressurehosesrmly
so that coating material does not leak.
3
1
2
4. Remove the oil cup cap with a straight-slot screwdriver.
5. Fill the oil cup with EasyGlide (Fig. 4) until the oil gauge
(4) is showing that it is full.
Attention
EasyGlide prevents increased wear and tear to
the packings.
6. Replace oil cup cap.
7. Press oil button 2-5 times to prime the oiler. Press once
foreveryeighthoursofusagetolubricatetheuidsection.
8. Fully depress the pusher stem to make sure the inlet ball
is free.
Uncontrolled Copy
