34
ProSpray 3.25
Spare parts list
ProSpray 3.25
4
1
9
10
11
12
13
14
15
2
3
5
6
7
8

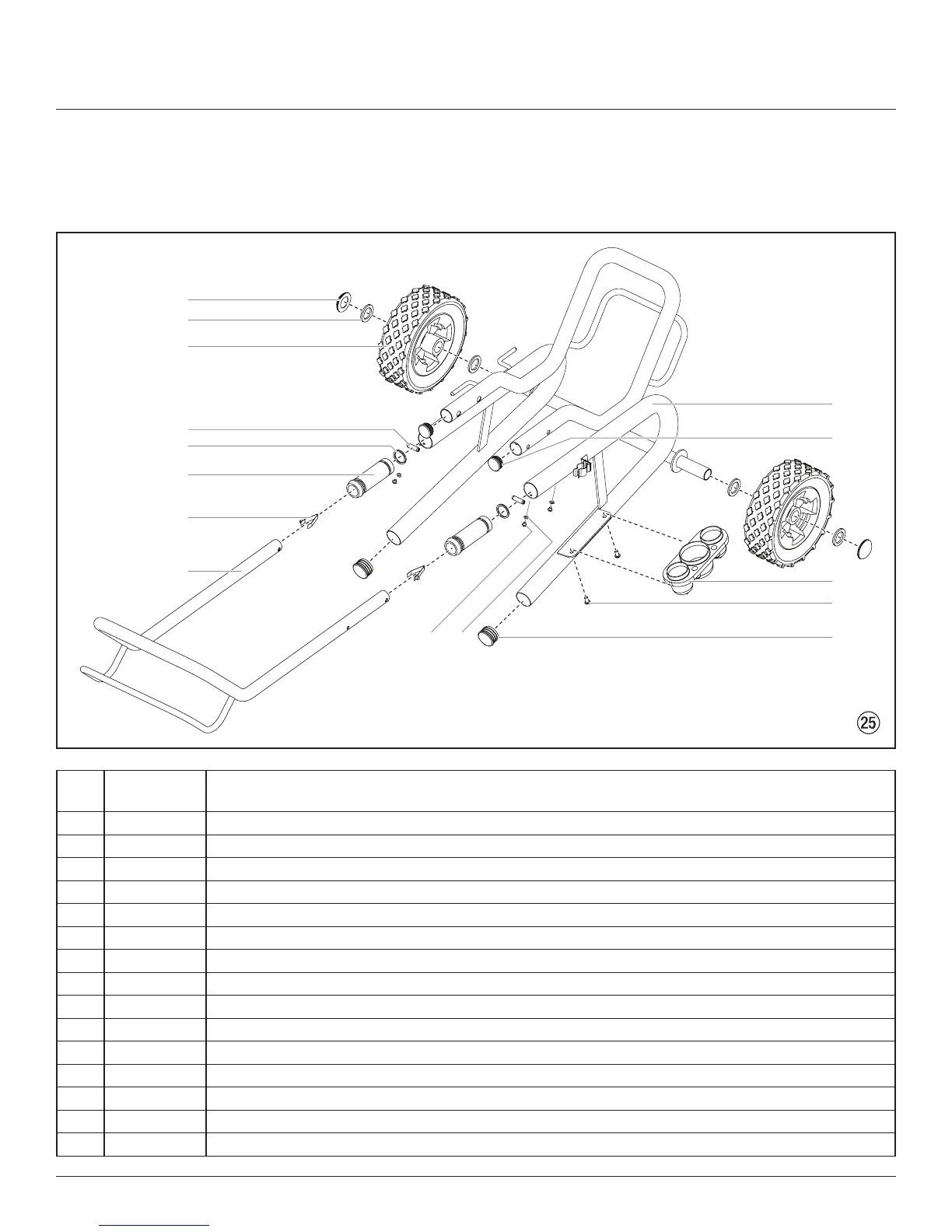

Low boy cart
Item
Part No.
Description
1
9890 104
Axle cap (2)
2
0294 534
Spacer (4)
3
0270 394
Wheel (2)
4
0295 610
Pin (2)
5
0295 609
Washer (2)
6
0295 607
Sleeve (2)
7
9841 504
Spring button (2)
8
0290 200
Handle
9
0558 463
Cart weldment
10
0294 635
Plug (2)
11
0507 397
Drip cup
12
9805 230
Screw (2)
13
9885 571
Plug (2)
14
0295 608
Screw (2)
15
0507 786
Washer (6)
Uncontrolled Copy
33
35
Table of Contents
Default Chapter
3
Table of Contents
3
1 Safety Regulations for Airless Spraying
4
Earthing Instructions
5
2 General View of Application
6
Application
6
Coating Materials
6
3 Description of Unit
6
Airless Process
6
Functioning of the Unit
6
Legend for Explanatory Diagram Prospray 3.25
7
Explanatory Diagram Prospray 3.25
7
Technical Data
8
Transportation
8
Transportation in Vehicle
8
4 Starting Operation
8
High-Pressure Hose, Spray Gun and Separating Oil
8
Control Panel Indicators
9
Pressure Control Knob Settings
9
Connection to the Mains Network
9
Cleaning Preserving Agent When Starting-Up of Operation Initially
10
Taking the Unit into Operation with Coating Material
10
Digital Electronic Spray Control (DESC)
10
5 Spraying Technique
12
6 Handling the High-Pressure Hose
12
High-Pressure Hose
12
7 Interruption of Work
12
8 Cleaning the Unit (Shutting Down)
13
Cleaning Unit from Outside
13
Suction Filter
13
Cleaning The High-Pressure Filter
13
Cleaning Airless Spray Gun
14
9 Remedy in Case of Faults
14
10 Servicing
16
General Servicing
16
High-Pressure Hose
16
11 Repairs at the Unit
16
Relief Valve
16
Inlet and Outlet Valve
16
Packings
17
Prospray 3.25 Connection Diagram
18
12 Appendix
19
Selection of Tip
19
Servicing and Cleaning of Airless Hard-Metal Tips
19
Spray Gun Accessories
19
Airless Tip Table
20
Tempspray
21
Pump-Runner
22
Sales and Service Companies
23
Accessories for Prospray 3.25
24
Spare Parts List for Main Assembly
26
Spare Parts List for Fluid Section
28
Spare Parts List for Drive Assembly
30
Spare Parts List of Frame
31
Spare Parts List for Suction System of Stand and Low Boy Cart
32
Spare Parts List for Upright Cart
33
Spare Parts List for Low Boy Cart
34
Important Notes on Product Liability
35
3+2 Years Guarantee for Professional Finishing
35
CE Declaration of Conformity
36
