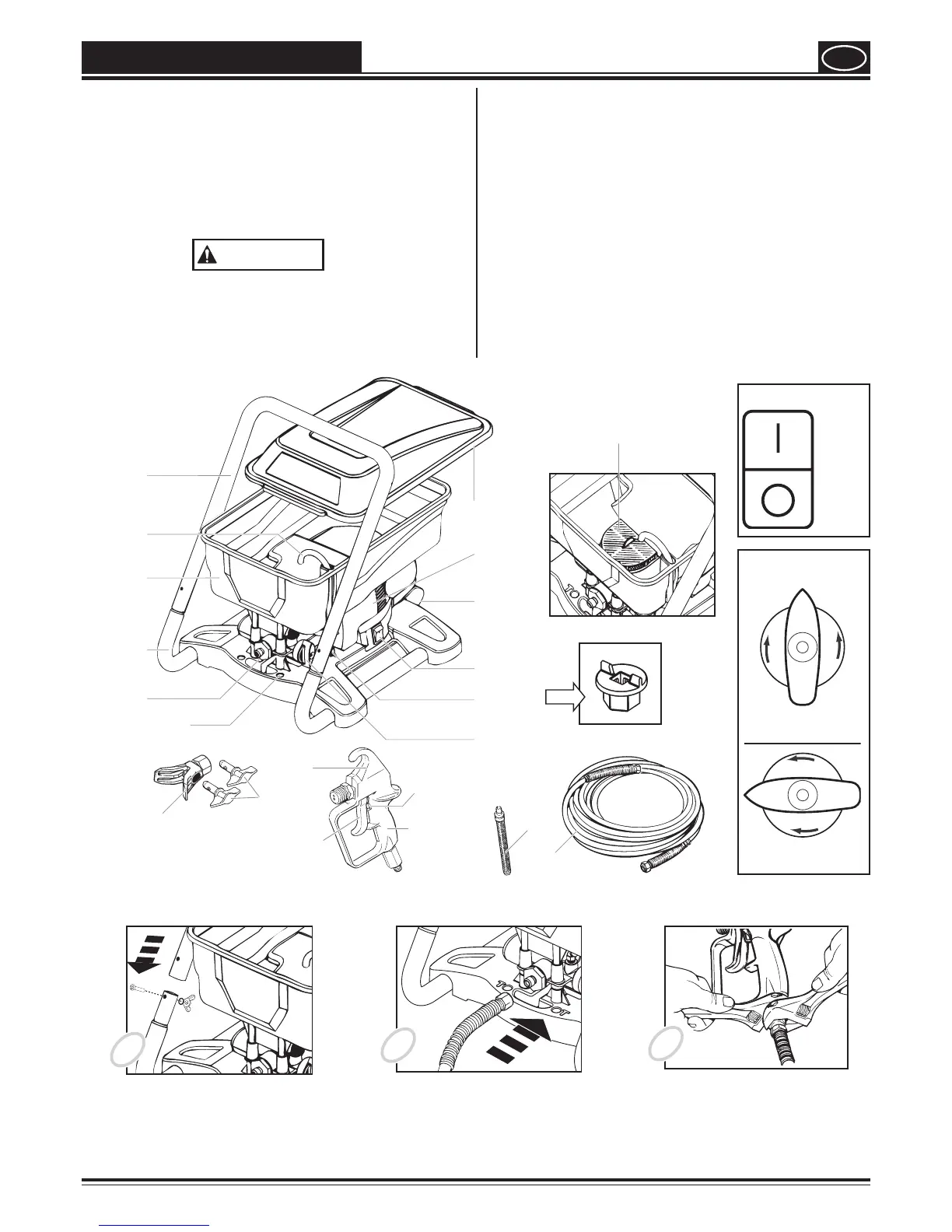

Components
•
Spray gun with lter
•
Spray tip assembly
•
10 mtr. long, 1/4 Zoll diameter high pressure hose.
Tools needed for assembly
•
Two adjustable wrenches.
WARNING
Do not plug in the unit until setup is complete.
Controls and functions
ON/OFF switch The ON/OFF switch turns the unit
on and o (O = OFF, l = ON)
Spray Gun The spray gun controls the
delivery of the uid being
pumped.
Spray Hose The spray hose connects the gun
to the pump.
Return Tube Fluid is sent back out through the
return tube to the hopper when
priming.
PRIME/SPRAY knob The PRIME/SPRAY knob directs
uid to the spray hose when set
to SPRAY, or the return tube when
set to PRIME.
Sp r ay
hose
Re ar
handle
Motor
housing
ON/ OFF
swit ch
Inlet valve
tool
PRI M E/ SPRA Y
knob
Hopper lid
Handle
Inlet filter
(inside of hopper)
Re t u r n
tube
Fram e
Out l et
valve
Ti p
st o rag e
Hopper
Trigger lock
Trigger
Spray
gun
Tip guard
Tip
Filter
(red)
Filter (yellow)
preassembled
in gun
= ON
Assembly
1
2
3
Place the handle over the unit frame.
Insert the bolts and tighten the wing
nuts over the lock washers.
Thread one end of the high pressure spray
hose to the outlet valve.
Tighten with an adjustable wrench.
Thread the other end of the hose to
the spray gun. Hold the gun with one
adjustable wrench, and tighten the
hose nut with the other.
COMPONENTS AND ASSEMBLY
