● The trigger can be used to
activate, one after the other, the
various functions of the spray
gun.
An increase in the tension
needed to pull the trigger back
will be felt at the position where
the material valve opens.
● In order to overcome Faraday
cages in corners, the high volta-
ge can be switched off by flip-
ping the HV switch (F) down.
● The supply of atomizing and flat
jet air is adjusted by means of
the star handles (D)
Legend
A Tip
B Tip nut
C Spray gun body
D Air control knob
E Locking nut for trigger
F HV flip switch (integrated into
trigger)
G Handle with integrated high vol-
tage generator
H Air connection
I Cable connection
K Paint connection
L Trigger
M Paint filter
GM 2000 EAC - EN
2.2
B
C
D
F
H
I
A
E
G
K
LM

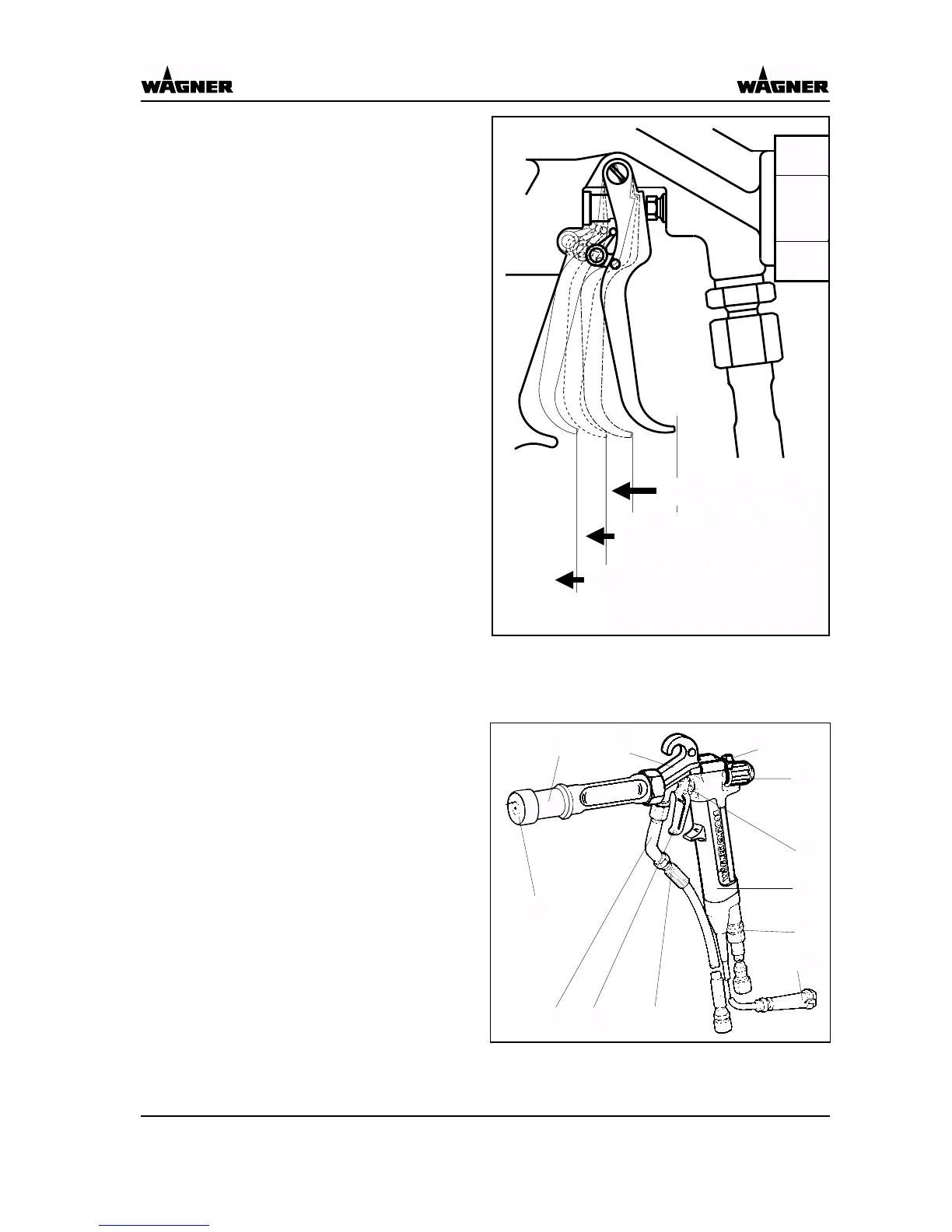

AirCoat - air open
AirCoat - air open and
electrostatics activated
AirCoat - air open, electrostatics
activated and material valve open
