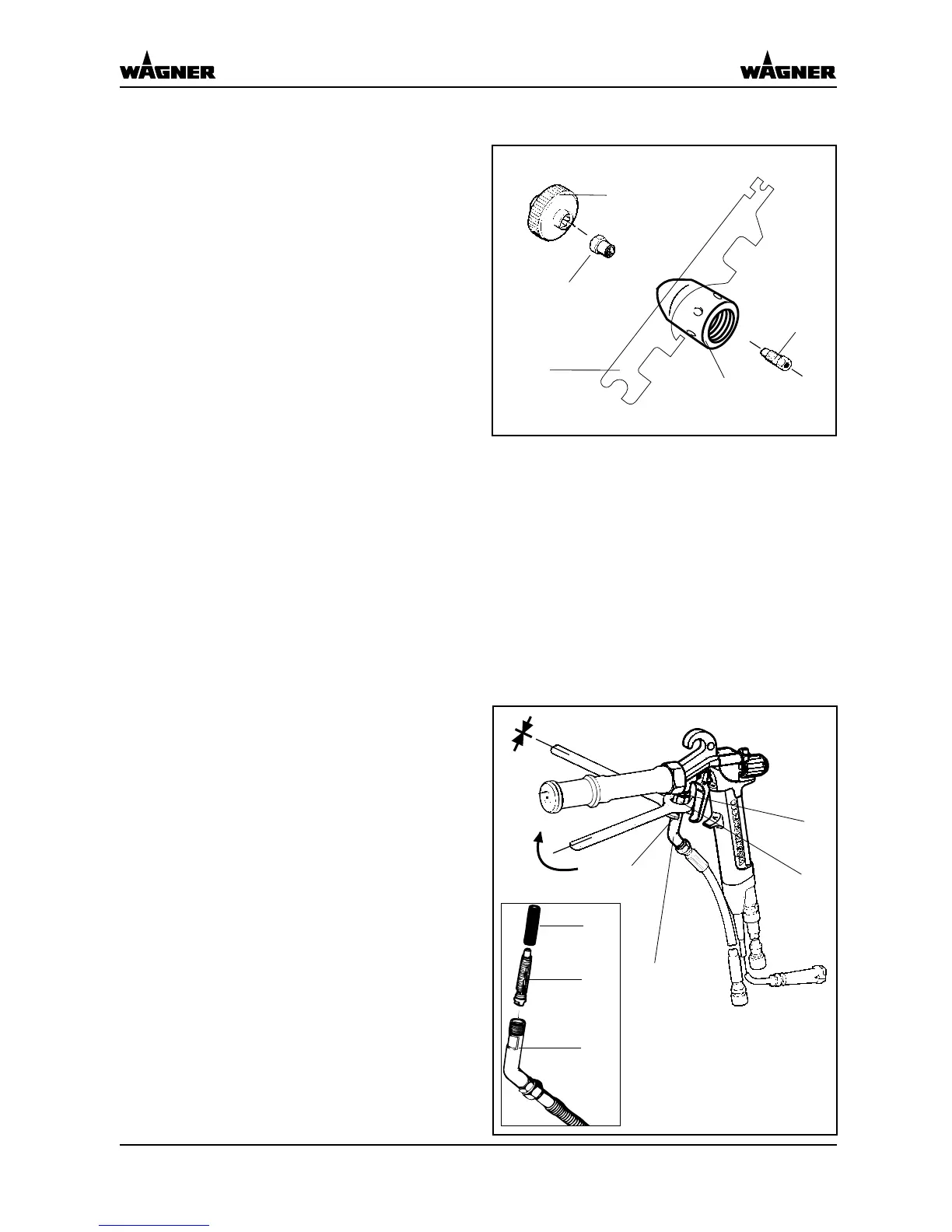

5.2 Dissassembly of AirCoat nozzle body (round jet)
1. Unscrew tip nut.
2. Remove nozzle body (3) with
spanner (B)
3. Unscrew tip insert (1) with tip
spanner (A)
4. Push threaded nozzle fitting (2)
backwards out of the nozzle
body (3).
5. Handle the round-jet tip insert (1)
and threaded fitting (2) with care,
do not clean with sharp metal
objects. Use nozzle cleaning
brush
(parts no. 9997 001).
Replace any worn-out parts.
Assemble in reverse order.
Note (round jet EAC)
Care must be taken when assembling that the tip nut is not tight to the nozzle body (3).
There must be room for the AirCoat air between nut and nozzle body.
5.3 Exchange or cleaning of filters
1. Place spanner, size 11, on surfa-
ce (2) of material connection (3)
and counterhold.
2. Turn union nut (1) to the right
(clockwise) with open-end
wrench, size 17, and unscrew
material connection.
3. Do not unscrew counter nut (A),
as the connection will leak.
4. Remove filter screw (5) and
withdraw cylindrical filter (4).
5. Clean filter (4) with solvent, or
exchange it.
Assemble in reverse order.
GM 2000 EAC - EN
