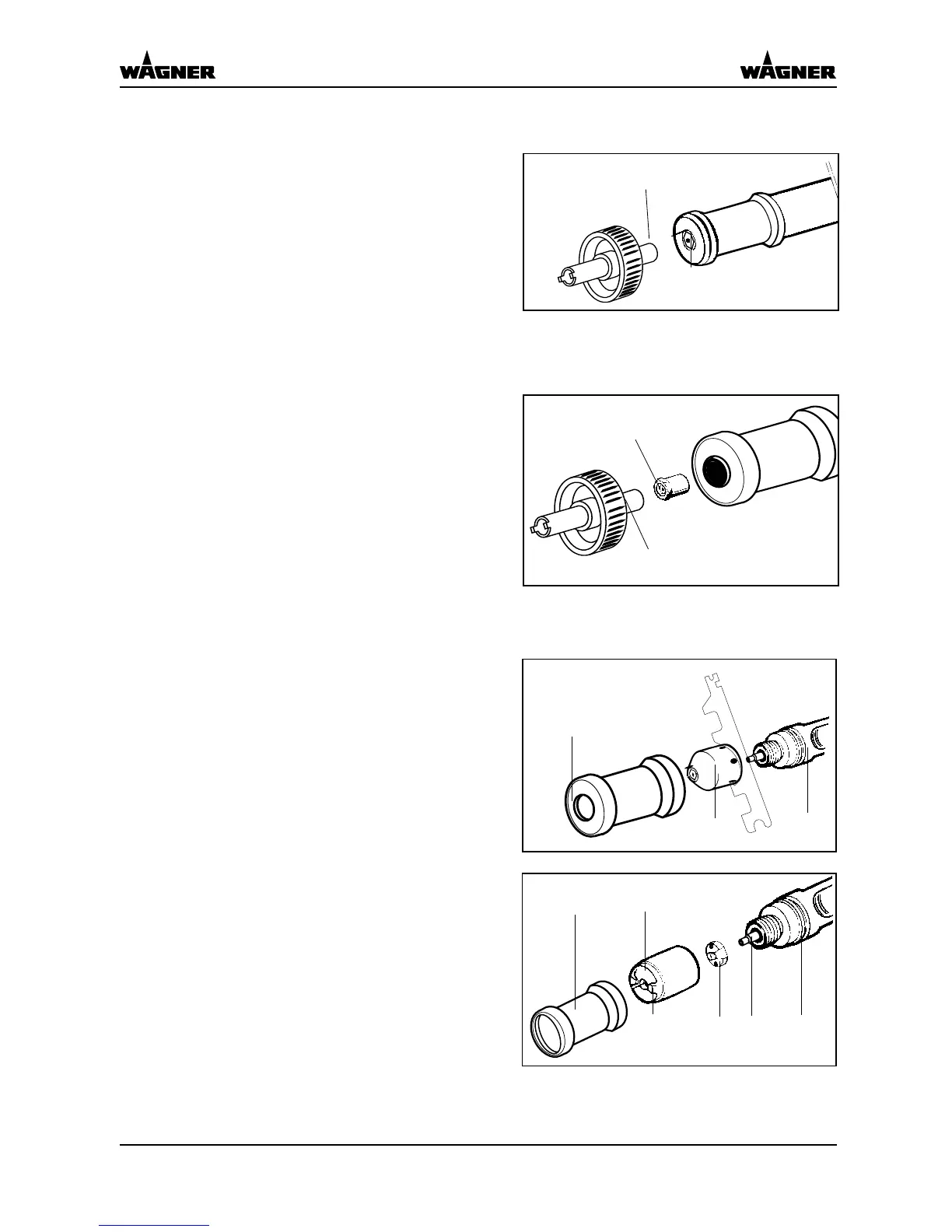

4.4 Cleaning of clogged round jet tips
1. By means of tip spanner (A),
loosen tip insert (B) by a half turn.
2. Remove tip spanner and briefly pull
trigger. Caution, never spray into
an enclosed vessel.
3. After cleaning the tip retighten.
4.5 Exchange of Aircoat round jet tip insert (EAC round)
1. Remove tip insert (B) with tip span-
ner (A).
2. Fit desired tip insert (acc. to table
7.1) with tip spanner.
4.6 Changing from AirCoat round jet to AirCoat flat jet.
1. Replace paint with cleaning sol-
vent, actuate trigger, and thorough-
ly rinse paint channel.
2. Relieve spray gun and system
pressure.
3. Lock spray gun. Turn locking screw
clockwise until stop. (Look in spray-
ing direction)
4. Unscrew tip nut (C).
5. Remove tip body (D) by means of
pin wrench.
6. Fit tip insert (F) on paint channel
(G).
7. Fit air cap (H) onto fan nozzle (F);
make sure that the pins in the air
cap fit into the grooves in the flat
nozzle.
8. Fit cap ring (I) with air cap (H) onto
spray gun body (E).
9. Adjust desired jet level by means of
air cap horns (X) and tighten cap
ring (I) by hand.
GM 2000 EAC - EN
4.2
C
D
E
F G
H
I
E
X
Universal spanner
A
B
A
B
