WAGNER Optimus User Manual

3
English
Important Safety Information · Read all safety information before operating
the equipment. SAVE THESE INSTRUCTIONS.
Grounding Instructions
This product must be grounded. In the event of an electrical short
circuit, grounding reduces the risk of electric shock by providing an
escape wire for the electric current. This product is equipped with a
cord having a grounding wire with an appropriate grounding plug.
The plug must be plugged into an outlet that is properly installed
and grounded in accordance with all local codes and ordinances.
WARNING - Improper installation of the grounding plug
can result in a risk of electric shock.
If repair or replacement of the cord or plug is necessary,
do not connect the green grounding wire to either at blade
terminal. The wire with insulation having a green outer surface
with or without yellow stripes is the grounding wire and must be
connected to the grounding pin.
Check with a qualied electrician or serviceman if the grounding
instructions are not completely understood, or if you are in doubt
as to whether the product is properly grounded. Do not modify
the plug provided. If the plug will not t the outlet, have the proper
outlet installed by a qualied electrician.
This product is for use on a nominal 120 volt circuit and has a
grounding plug that looks like the plug illustrated below. Make
sure that the product is connected to an outlet having the same
conguration as the plug. No adapter should be used with this
product.
Grounded Outlet
Grounding Pin
Cover for grounded outlet box

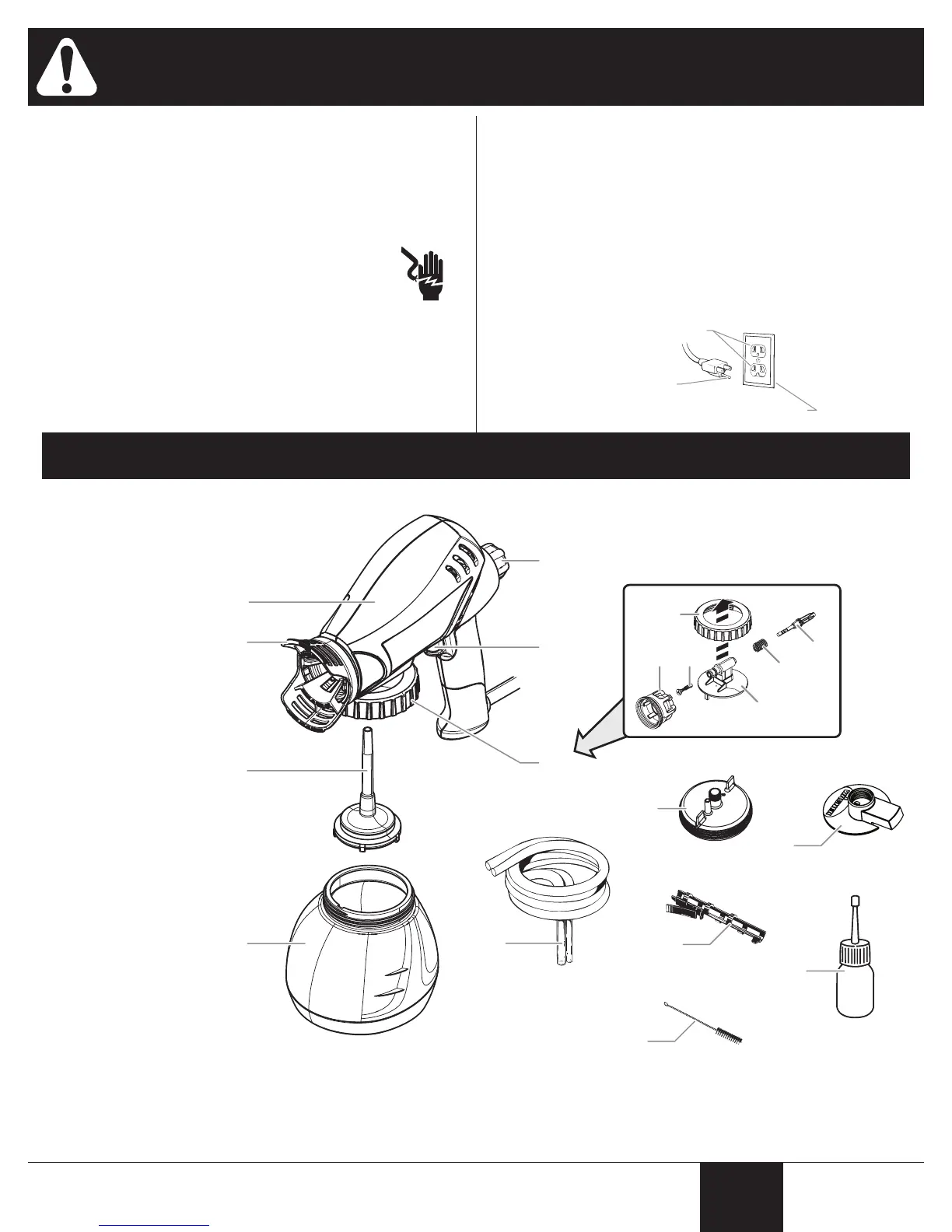

What’s in the Box
(e)
(f)
(g)
(a)
(b)
(c)
(d)
(6)
(5)
(4)
(3)
(2)(1)
(k)
(i)
(m)
(j)
(l)
(h)
a) Sprayer assembly
b) Spray tip
c) Suction tube with lter
d) Material container
e) Flow control knob
f) Trigger
g) Pump assembly
1) Locking nut
2) Atomizer valve
3) Pump housing ring
4) Pump housing
5) Spring
6) Piston
h) Dual hose tting
i) Quick Flush lid
j) Remote suction hoses
k) Container clip
l) Oil lubricant*
m) Cleaning brush
* Included in some models.
