English
12
Cleanup
(cup mode)
Start
You will need:
• Waste container
• Cleaner nozzle and lubricant
• Warm soapy water if you sprayed latex
materials
• Mineral spirits if you sprayed oil-based
materials
Make sure you clean the sprayer in a
well-ventilated area whenever
cleaning with flammable solvents.
The sprayer contains electrical parts.
DO NOT submerge the sprayer into
any liquids.

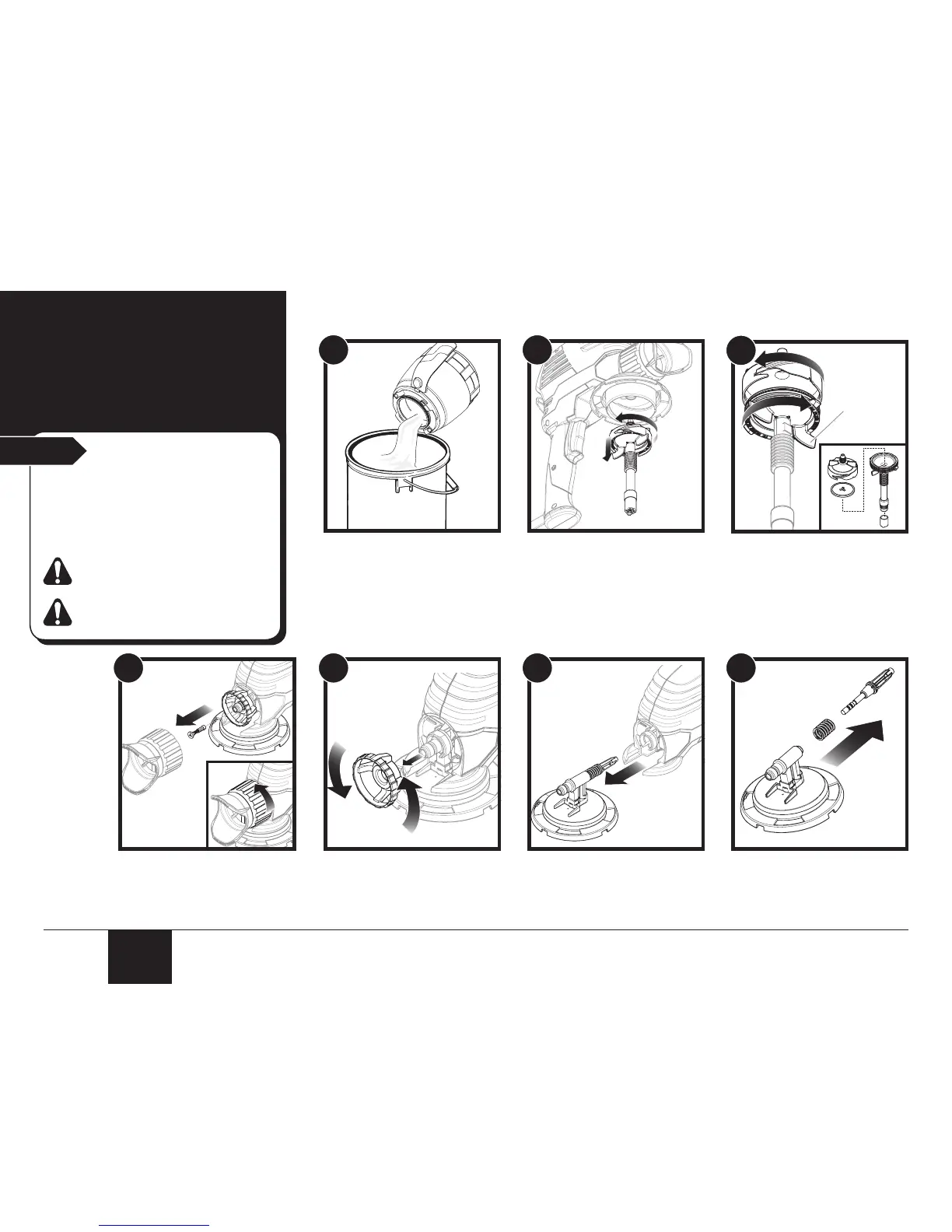

1. Unplug the sprayer. Pour the
remaining material back into
the original container.
Rinse the inside of the cup
with the appropriate cleaning
solution.
5. Turn the locking nut
counterclockwise until it is
removed.
4. Turn the tip nut counter-
clockwise and remove the
adjustable spray tip assembly.
Pull the atomizer valve out,
being careful not to lose it.
2. Remove the suction tube and
lter assembly.
6. Slide the pump housing off the
sprayer.
3. Disassemble the suction tube
and lter assembly.
Note: The threads on the bottom
housing (a) are left-handed. You
will need to turn the bottom housing
to the right in order to remove it.
7. Remove the spring and piston
from the pump assembly.
1
54
2
6
7
