Backpack Kit
Setup
(optional)
Start

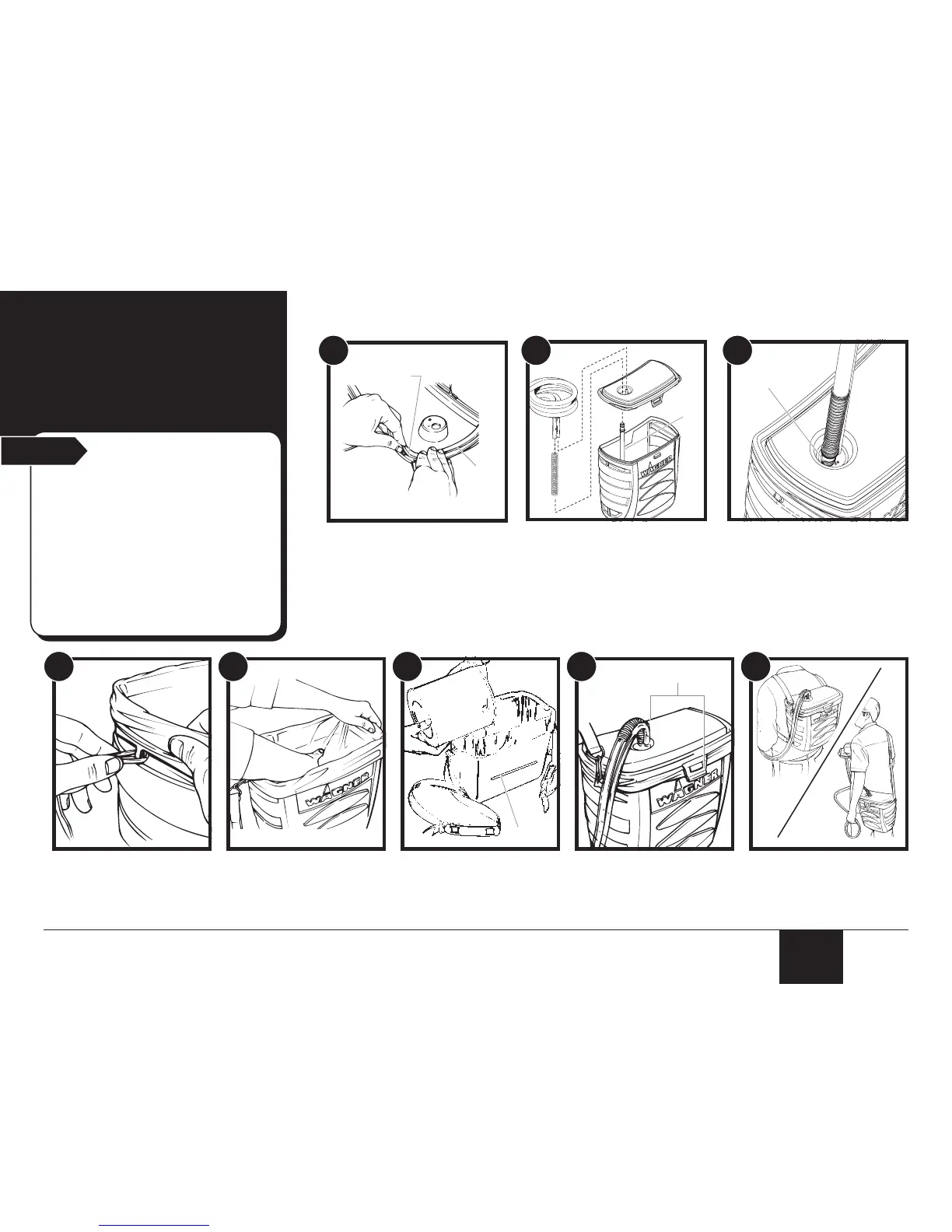

1. Lay cord seal (a) in backpack
lid groove (b). Overlap the
ends of the cord seal by
approximately 1/2 inch. Cut off
remaining seal.
Lift seal and butt edges
together and press excess seal
into groove.
4. Assemble strap hooks to
container using same hole
as lid clip. Adjust strap to
t user.
5. If you want to use a
backpack liner, install as
shown.
6. Pour material into
backpack to ll line. Do
not ll above the indicated
ll line (e).
7. Place lid on backpack and
press rmly into place.
Secure with the tabs (f).
8. Backpack can either be
back- or shoulder-mounted
as shown. Adjust straps to
t user.
2. Snap backpack suction tube
(c) through hole in bottom of
backpack lid.
Assemble backpack kit as
shown.
3. Secure clip onto suction tube (d).
When backpack kit is
assembled, follow steps 1-5 in
Remote Suction Hose Setup
(previous page) to attach the kit
to the sprayer.
Recommended for
medium to large jobs
Note: A 75% duty cycle is recommended when
spraying with the backpack kit. For example,
trigger the gun for 15 seconds, and then allow
the gun to remain idle (untriggered) for 5
seconds.
IMPORTANT: Avoid running the backpack
dry. An empty backpack will allow air to
get sucked into the sprayer, which leads to
globbing and spitting.
IMPORTANT: Always make sure the tip nut
is tightened securely prior to spraying.
