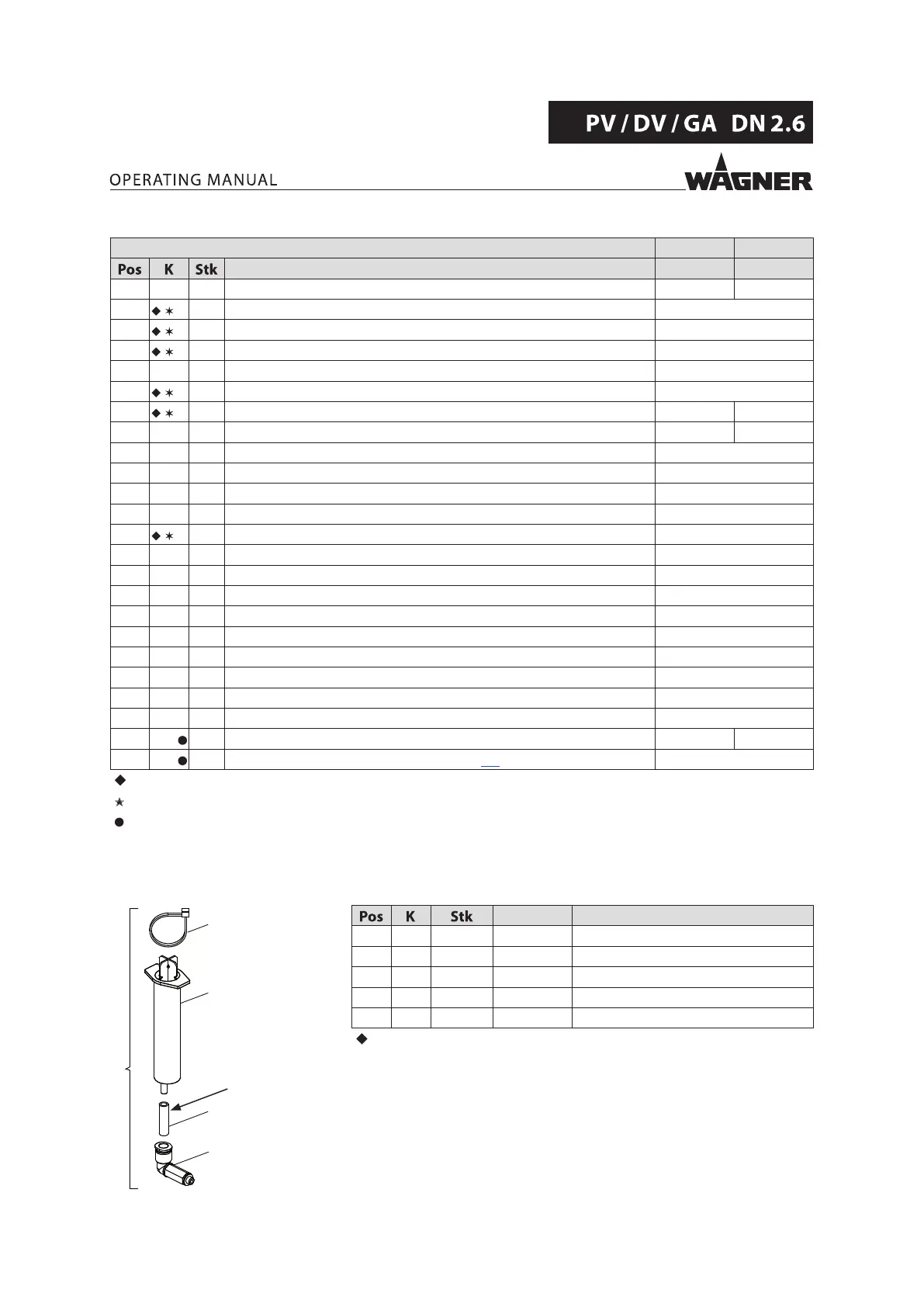

VERSION 06/2018
ORDER NUMBER DOC 2343275
Spare parts list for dosing valve DV400-DN2.6-FFKM SSt TC
Designation Order No. Order No.
1 1 Dosing valve DV400-DN2.6-FFKM 2332666 2332670
2 2 Sealing screw 350485
3 4 Back-up ring 384454
4 2 O-ring 9974264
5 2 AL tension nut 350490
6 2 O-ring 2308324
7 2 Valve rod, completely assembled 2309633 384120
8 1 Valve housing, pre-assembled ** **
9 2 Piston 2330264
10 2 Hexagon nut 9913014
11 2 Hexagon screw without shaft 9907250
12 2 Hexagon nut 9913058
13 2 O-ring 9974187
14 2 Spiral spring 350482
15 1 Loctite® 243 9992511
16 2 Plug 384323
17 2 Screw plug 104376
18 1 Loctite® 542 9992831
19 1 Mobilux® EP 2 grease 9998808
20 2 Male stud elbow 9992724
21 2 Separating agent supply 389064
22 1 Molykote® DX grease 9992616
1 Service set 2323038 2323037
1 Seal set (scope of delivery, see Chapter 9.4) 384954
= Wearing parts
= Included in service set.
= Not part of the standard equipment but available as a special accessory.
** = The valve housing can only be ordered from the WAGNER Service Department.
13.3.5.1 SEPARATING AGENT SUPPLY
3
2
4
5
B_07243
1
Length
22–23 mm;
0.86 - 0.90 inch
Order No. Designation
1 1 389064 Separating agent supply
2 1 9950615 Cable tie
3 1 389444 One-way syringe
4 0.023 m 9987004 Hose, D6
5 1 2337400 QSMLL L-long push-in tting
= Wearing parts
