WAGNER PV 100 User Manual

20
VERSION 06/2018
ORDER NUMBER DOC 2343275

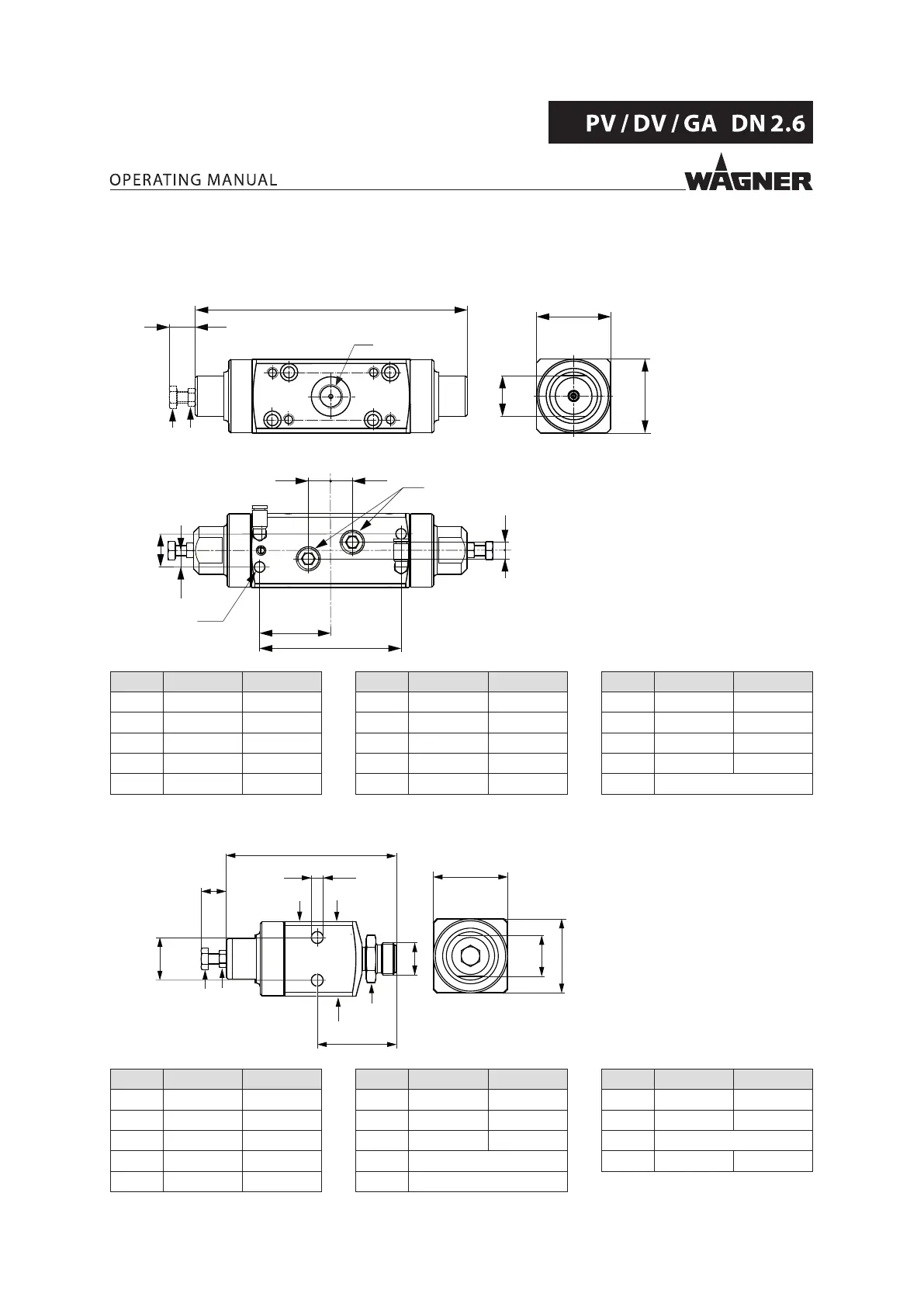

5.6.3 DIMENSIONS
Double valves
B_03985
A
O
K
D
E F
G G
L
M
B
C
N
HH
I
J
O
Pos mm inch
A 149 5.87
B 40.25 1.585
C 40.25 1.585
D 14.3–16.9 0.56–0.67
E SW 8
Pos mm inch
F SW 8
G 12 0.47
H 4.5 0.18
I 18 0.71
J 9 0.354
Pos mm inch
K 5.5 0.22
L 38.5 1.516
M 77 3.03
N 22 0.87
O G 1/4"
Single valves
B_03986
A
H
K
L
I J
J
D
E
F
B
C
M
N
G
Pos mm inch
A 91.5 3.60
B 40.25 1.585
C 40.25 1.585
D 14.3–16.9 0.56–0.67
E SW 8
Pos mm inch
F SW 8
G 23 0.906
H 6.4 0.25
I G 1/8"
J G 1/4"
Pos mm inch
K 42.25 1.67
L SW 22
M 11/16" UN
N 22 0.87
