52
OPERATING MANUAL
VERSION 05/2017 ORDER NUMBER DOC 2354920
SPRINT XE

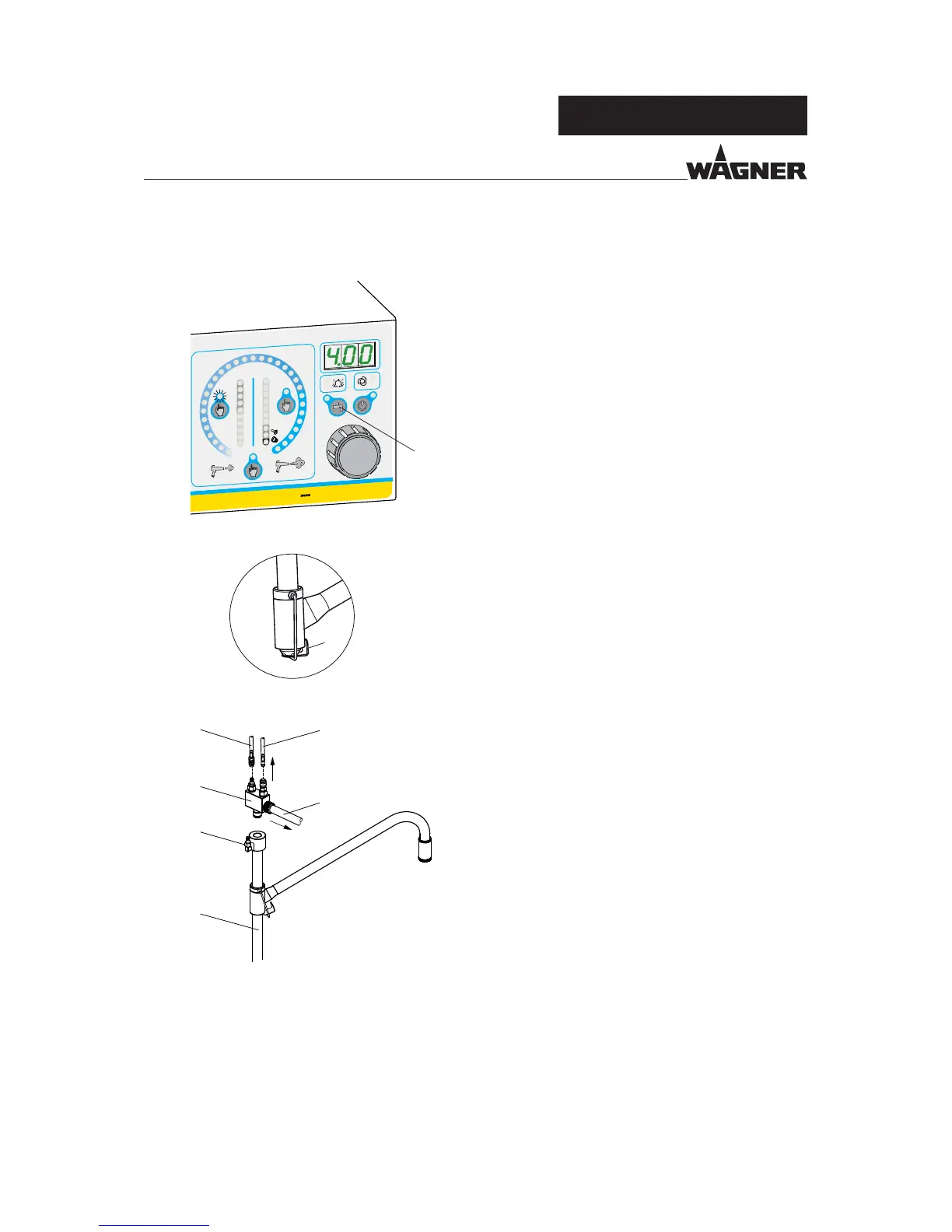

8.3 PERIODIC CHECKING OF THE MANUAL SYSTEM
8.3.1 AIRFLUID VERSION
P_01785
EPG
SPRINT X
0
%
10
20
30
40
50
Ø
12
10
11
9
8
m /h
2.0
3.0
0.5
0.3
0.1
1.5
3
5.5
4.5
3.5
2.5
80
100
%
Tri
90
60
70
4
6
1
3
5
P_01787
2
P_1789
H
17
Procedure:
1. Release the trigger on the spray gun.
The high voltage and the powder feed are
deactivated.
2. Lift the feed unit up, underneath the injector,
and lift it out of the tank until retaining clamp
(H) swivels downwards.
3. Lower the feed system into the parking position
and swivel it to the right side so that no more
powder is forwarded.
4. Hold the gun in the spray booth and start the
ush function by pressing the "Flush" button (17).
The injector and hoses are  ushed.
5. Switch o control unit.
6. Remove the union nut on powder feed hose
(3) and disconnect powder feed hose (3) from
injector (4).
7. Disconnect powder feed hose (5) (red) from injector
(4).
8. Disconnect dosing air hose (6) (blue) from injector
(4).
9. Pull the  uid air hose (black) o suction connector
(2).
10. Pull injector (4) out of feed unit (1).
11. Check injector 4 for wear and replace worn parts
if necessary.
The wearing and spare parts can be found in the
powder injector's operating manual.
12. Pull feed unit (1) out of the holder arm.
13. Blow out the intake tube of the feed unit (1)
thoroughly and rub it clean with a dry cloth.
14. Check whether the  uid disk on the bottom of
the feed unit is blocked and replace if necessary.
