15
VM 2000
"?
2MAX-7
OPERATING MANUAL
EDITION 03 /2007
PART NO. DOC0388871

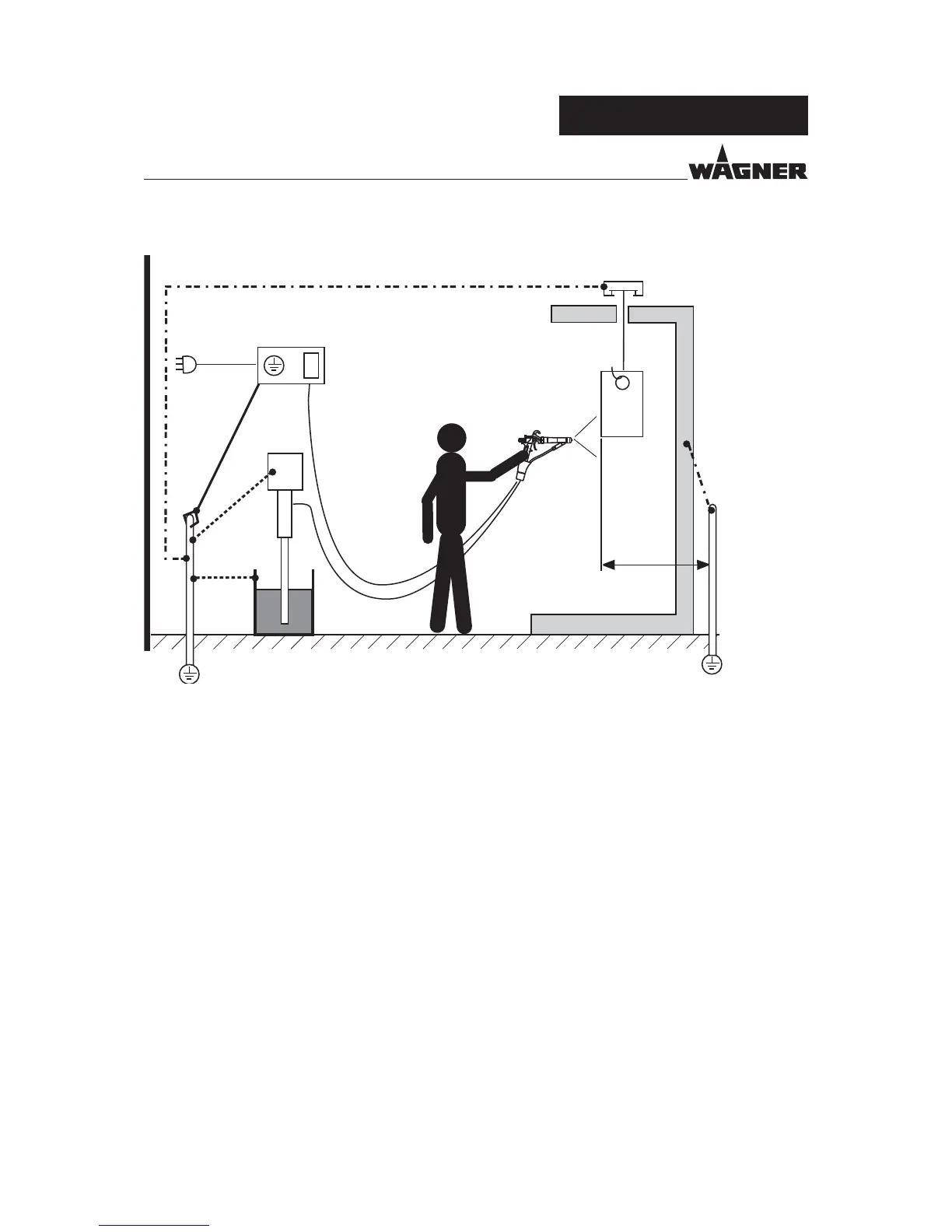

Earthing scheme (example)
Minimum cable cross-section
Control unit 4 mm² (AWG 12)
Pump 4 mm² (AWG 12)
Paint container 4 mm² (AWG 12)
Conveyor 16 mm² (AWG 6)
Spraying booth 16 mm² (AWG 6)
Spraying stand 16 mm² (AWG 6)
Conveyor
Floor, antistatic
Pump
Paint container
Spraying stand
Earthing
cable
Control modul
System earth System earth
Workpiece
