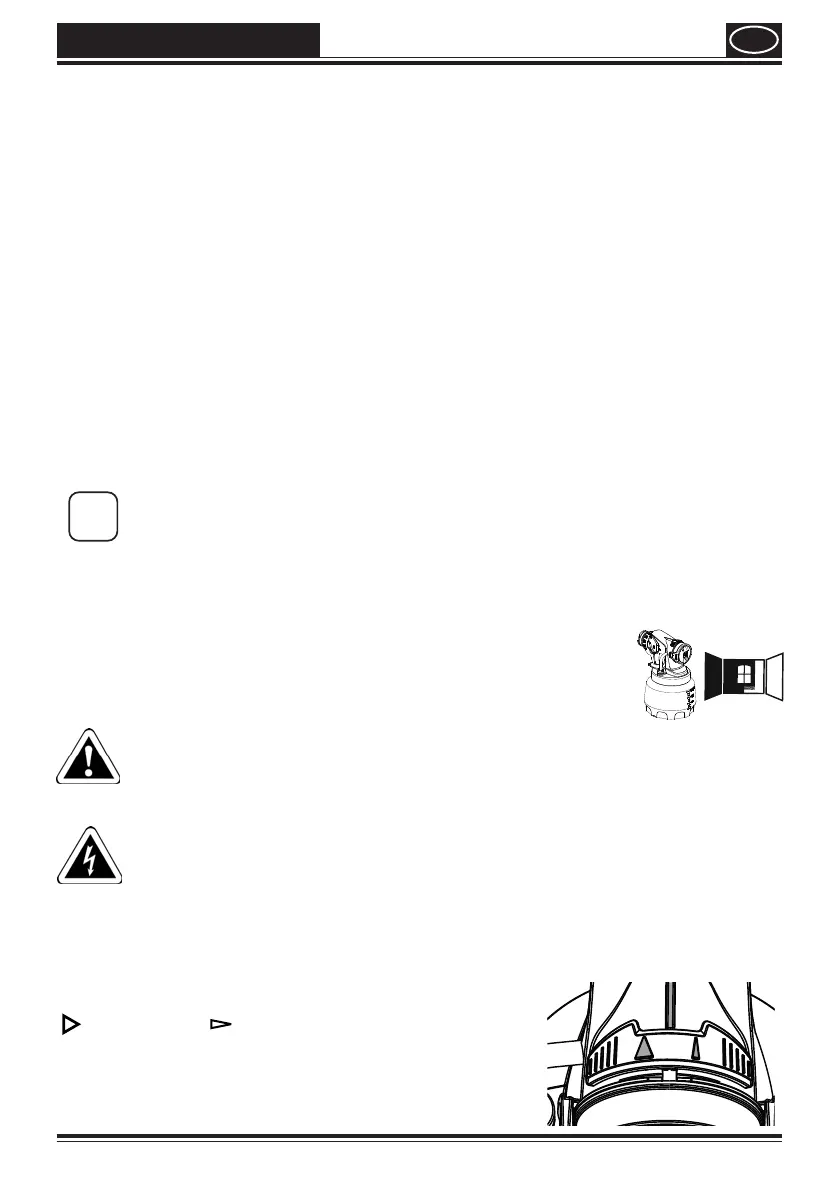

10. Start-up
Before connecting to the mains supply, be sure that the supply voltage is identical with
the value given on the rating plate.
•
Unscrew the container from the spray gun.
•
Aligning suction tube. (Fig. 2)
If the suction tube is positioned correctly, the container contents can be sprayed without
almost any residue.
When working on lying objects: Turn the suction tube forwards. (Fig. 2 A)
Spraying work when working on overhead objects: Turn the suction tube rearwards.
(Fig. 2 B)
•
Place the container on a paper base and pour in the prepared coating substance with the
aid of the feed hopper included in the scope of supply (Fig. 1, 17). Screw the container
tightly onto the spray gun.
•
Connect the front part with the rear part of the gun (Fig. 3).
•
Switch the unit on (Pos. I) using the ON/OFF switch (g. 4, 1).
•
Adjust the spray setting on the spray gun.
i
The enclosed practice poster is ideal for familiarising yourself with The enclosed practice poster is ideal for familiarising yourself with
operation of the spray gun. operation of the spray gun. After trying out the rst spray coatings, it After trying out the rst spray coatings, it
makes sense to test it further on cardboard or a similar surface in order makes sense to test it further on cardboard or a similar surface in order
to nd out the right ow rate of paint and air for the best spray pattern. to nd out the right ow rate of paint and air for the best spray pattern.
Detailed information about these settings can be found in chapter 11-15.Detailed information about these settings can be found in chapter 11-15.
11. Selecting the Spray Setting
(Wall Extra I-Spray spray attachment)
WARNING! Danger of injury! Never pull the trigger guard while adjusting
the air cap.
2 dierent spray jet shapes can be set by turning the air cap (g. 5, 1)
Tighten the union nut (Fig. 5, 2) fully so that no paint is able to penetrate
the device. Check regularly whether the union nut has worked loose during
operation.
Fig. 6 A = vertical at jet

for horizontal surfaces
Fig. 6 B = horizontal at jet

for vertical surfaces
Use the red adjustment lever to also switch between a wide
( ) and a narrow ( ) spray jet.

WAGNER W 590 FLEXIO Specifications

General

Power Consumption	630 W
Adjustable Spray Width	Yes
Project Size	Medium to Large
Paint Flow	Adjustable
Flow Rate	500 ml/min
Container Capacity	1300 ml
Suitable for	Walls, Ceilings, Fences, Garden Furniture
Max. Material Throughput	500 ml/min
