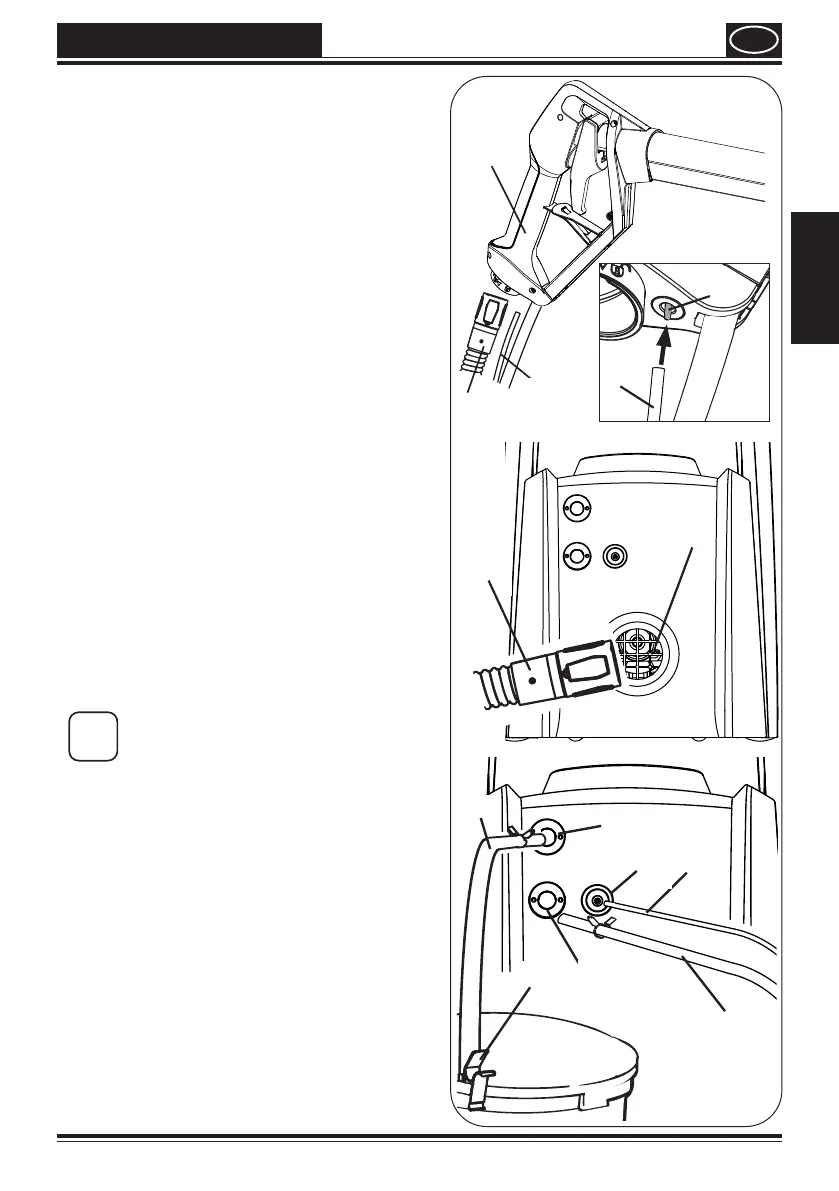

11. Connecting the hoses
(g.3)
•
Attach control hose (1) to pin (2) on the
underside of the grab handle (3).
•
Insert the thin end of the black air hose
(4) into the grab handle (3) (watch out
for marking) and x it into position by
turning it to the right.
•
Insert the thick end of the air hose (4) into
the air-hose connection (5) on the basic
device (watch out for marking) and x it
into position by turning it to the right.
•
Connect the material hose (6) to the
material hose connection socket (7) and
secure with securing clip.
•
Connect the control hose (1) to the
control hose connection socket (8).
•
Connect the suction hose (9) to the
suction hose connection socket (10) and
secure with securing clip.
•
Plug the attachment clip on the suction
hose (11) to the edge of the paint
container.
•
Push the suction hose down to the base
of the paint container.
i
Do not push the hose too far into
the paint container, as it might
otherwise bend upwards and suck
in air.

