WAGO-I/O-SYSTEM 750 Commissioning 125
750-489 4AI RTD/TC/Strain Gauge Ex i
Manual
Version 1.1.0, valid from FW Version 02
7.1.1 Parameterization Dialog
The parameterization dialog is divided into the following areas:

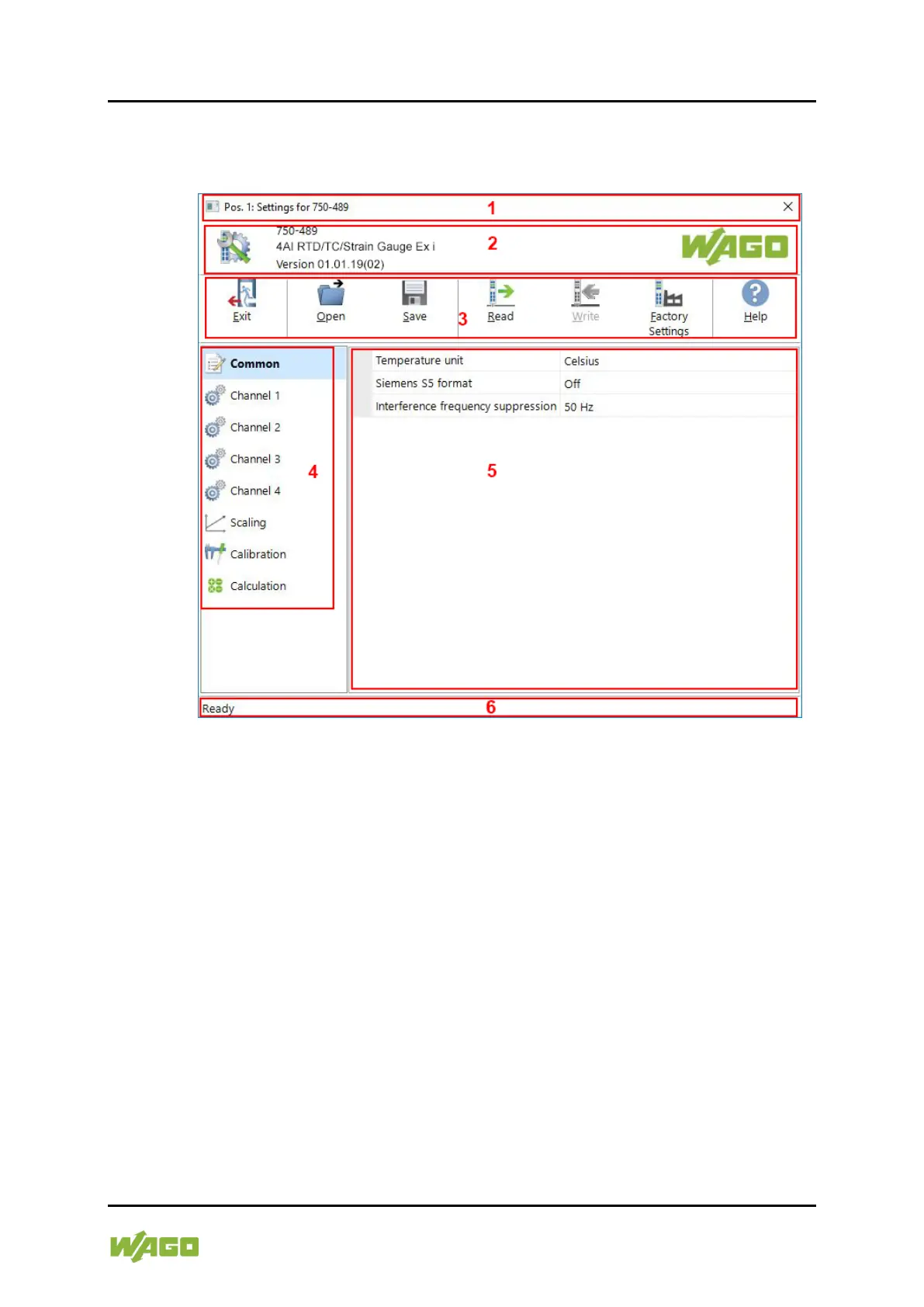

Figure 27: I/O Module Parameterization Dialog
1 Title bar with the position and indication of the selected I/O module
2 Information bar including item number, name, version number and version
date of the I/O module
3 Buttons
4 Menu
5 Application area with the parameters
6 Status bar
The individual areas are explained in more detail in the following sections.
7.1.1.1 Title Bar
The title bar in the parameterization dialog contains the program icon, the window
title and the button for closing the application window.
The window title provides information about the position of the selected I/O
module within the fieldbus node used and the item number of the selected
I/O module.
