292 Diagnostics WAGO-I/O-SYSTEM 750
750-8215 PFC200; G2; 4ETH CAN USB
Manual
Version 1.2.0, valid from FW Version 03.02.02(14)
12.1.2 Fieldbus/System Indicating Elements

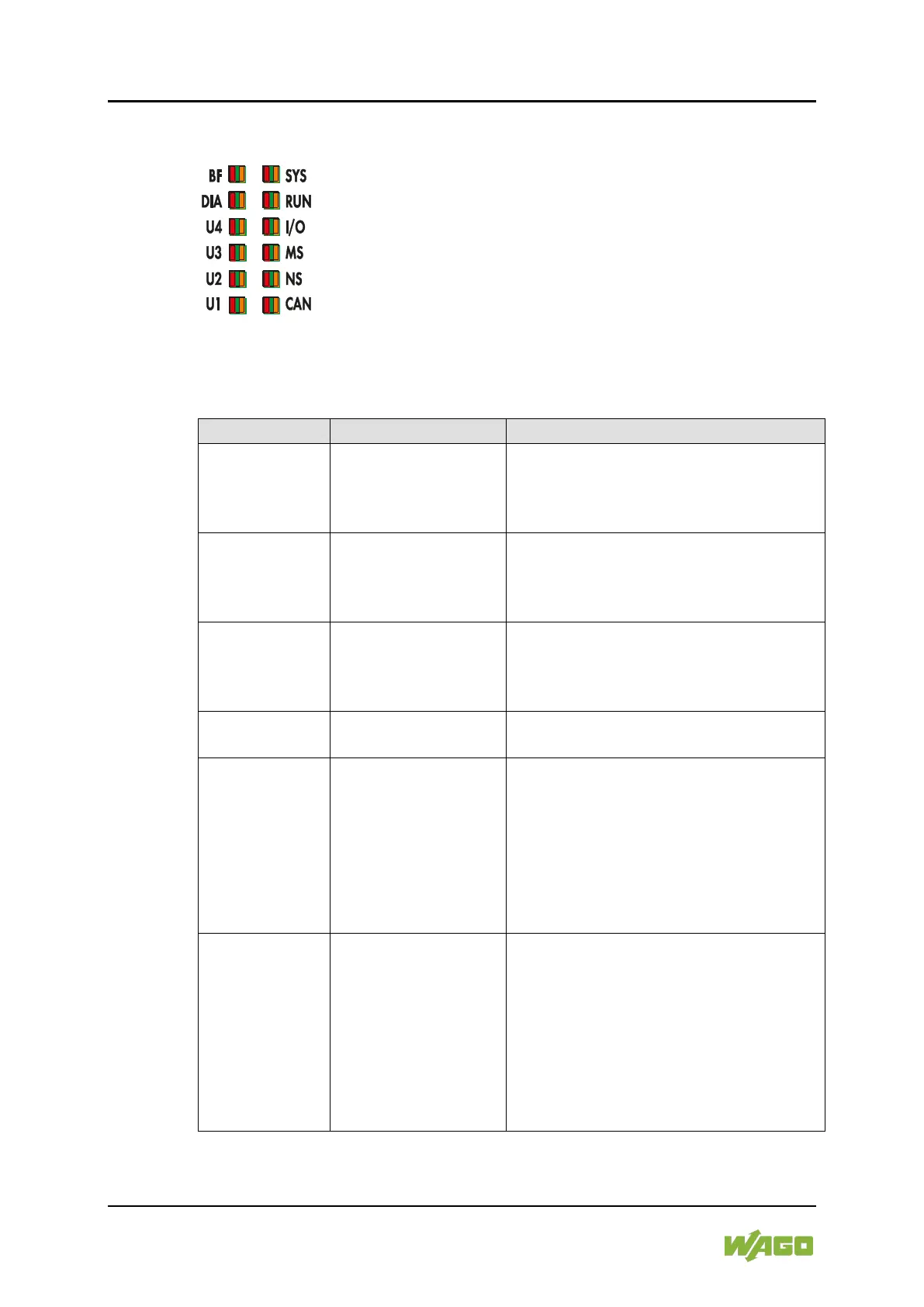

Figure 87: Fieldbus/System Indicating Elements
The SYS LED indicates following diagnostics:
Table 203: Diagnostics via SYS LED
Status
Explanation
Remedy
Green
Ready to operate -
System start
completed without
errors
---
Orange
Device is in
startup/boot process
and the RST button is
not pressed.
---
Orange flashing
“Fix IP Address”
mode,
temporary setting
until the next reboot
Connect to the device via the standard
address (192.168.1.17) or restart the
device to restore the original value set.
Green/red
flashing
Firmware update
mode
---
Orange/red
flashing
No license;
evaluation period not
yet expired
The libraries or device functions affected
are shown in e!COCKPIT.
Activate the associated licenses before
the evaluation period ends, or remove
the libraries or device functions from
your application.
The device has unrestricted functionality
until the evaluation period ends.
Red flashing
No license;
evaluation period has
expired
The libraries or device functions affected
are shown in e!COCKPIT.
Activate the associated licenses
promptly, or remove the libraries or
device functions from your application.
Otherwise, the application can no longer
be started after being downloaded again
or started as a boot application after the
device is restarted.
